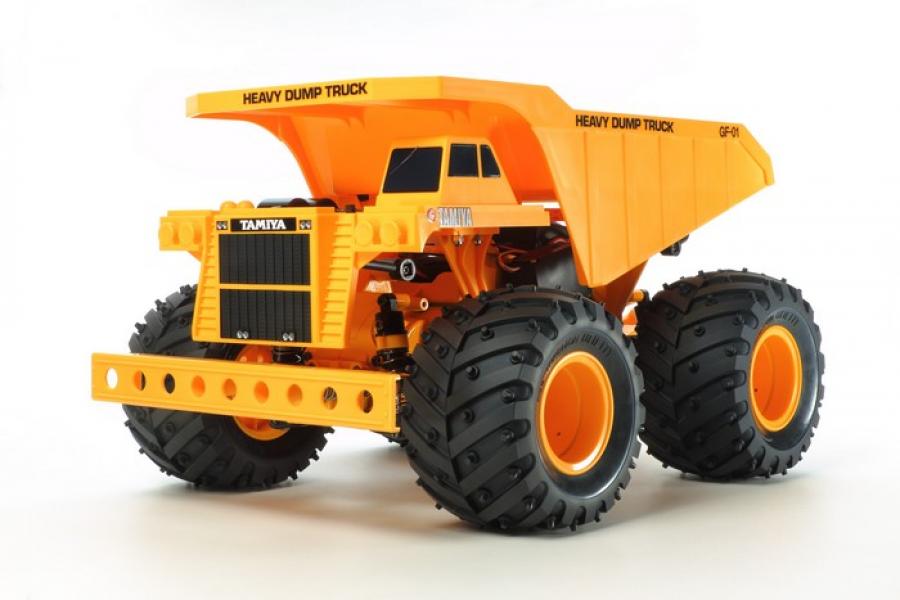

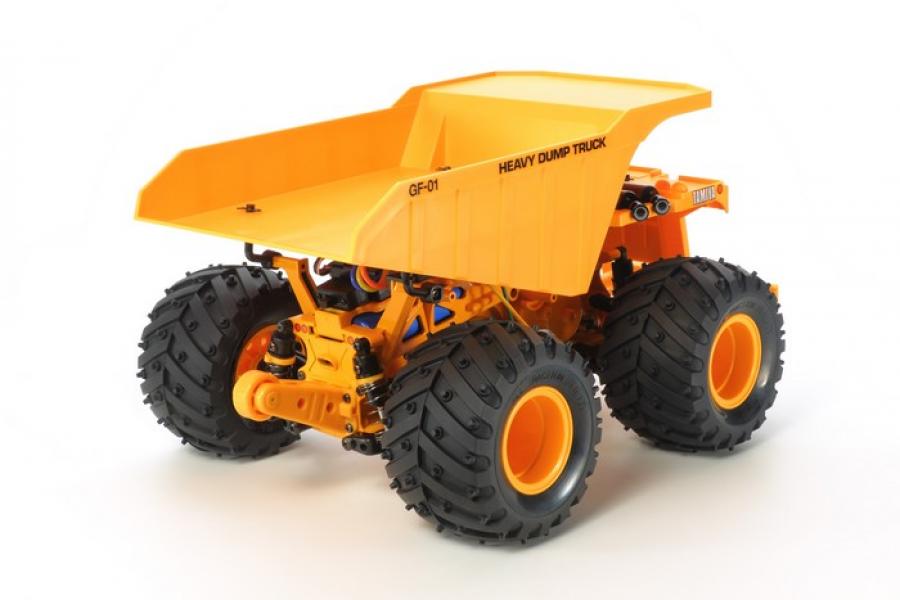

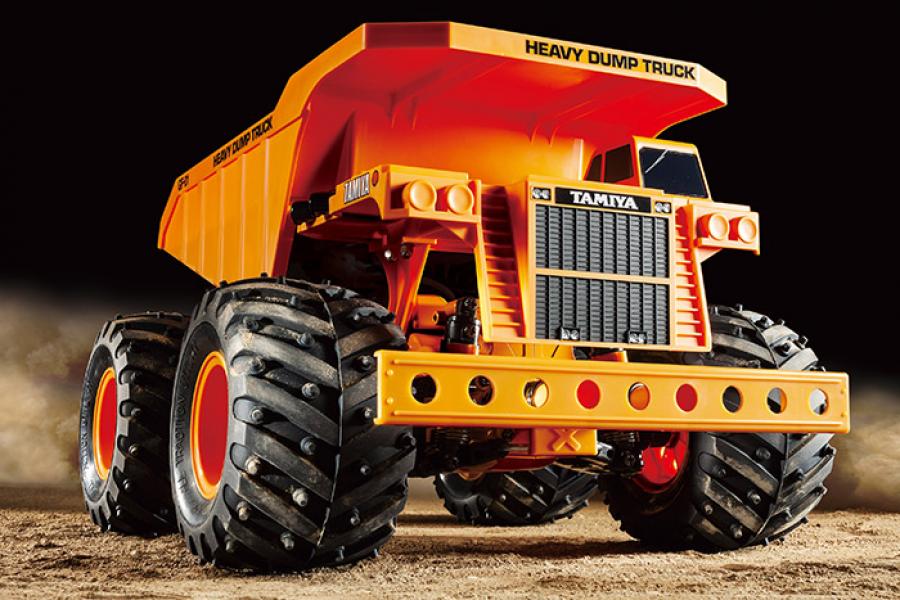

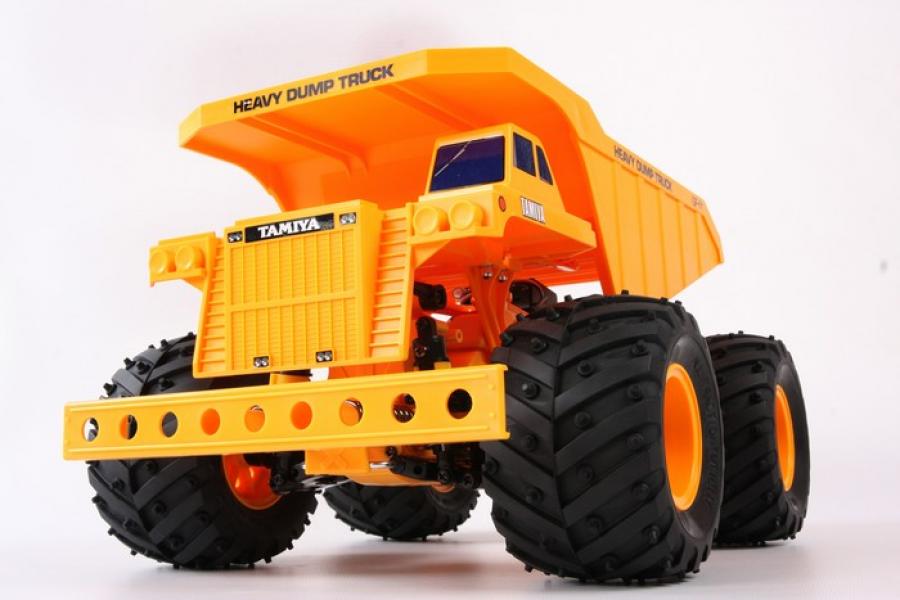

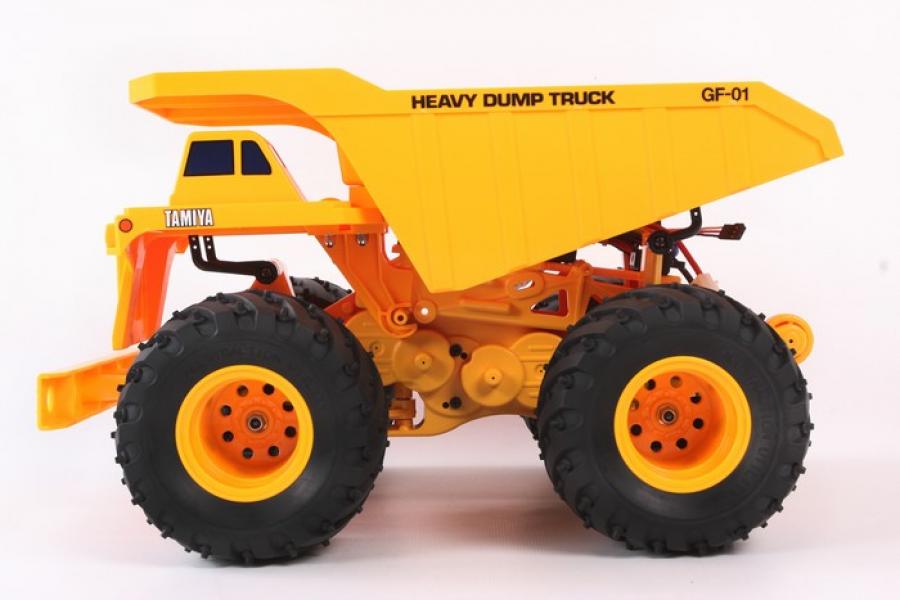

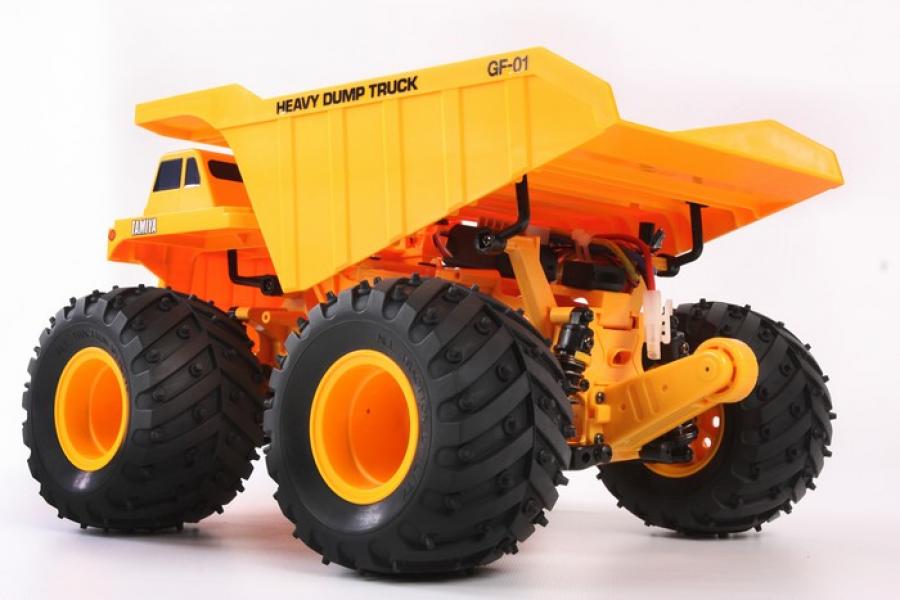

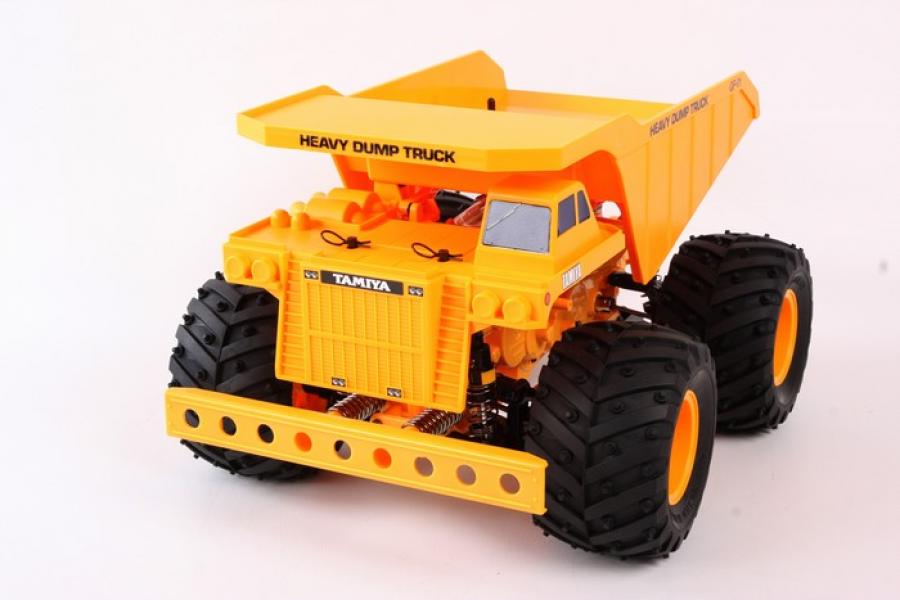

1/24 Heavy Dump 4WD Truck (GF-01)

Manufactor: Tamiya
179,00 €
star star star star star
Temporarily out of stock
The product is temporarily out of stock . We do not have any information on availability.

You can leave your email here and we'll notify you when the product is available.

wishlist Add to wish list

Product code: 58622
Number: V442769

Technical information Offers Reviews

Technical information
1/24 Heavy Dump 4WD Truck (GF-01)


Type Detail
Scale 1/24
Construction type Assembly kit
Terrain use Multi-Purpose
Drive-train 4WD
Drive type Gearbox
Drive line Dog bone
Differential type Gear
Suspension Fully independent double wishbone
Steering mechanism Bell-crank
Shock damper Friction damper
Shock damper material Plastic
Tire type Rubber
Tire tread Lug/pin-spike
Body material ABS Plastic
Chassis material Plastic
Electronic Speed Control (ESC) Included
ESC model TBLE-02S
LED Light buckets No
LED lights No
Motor 540-brushed type
Bearings Plastic bushing
Adjustable camber Fixed
Adjustable toe angles Front only
Adjustable ground clearance Fixed
Adjustable gear ratio Fixed
Adjustable wheelbase Fixed
Adjustable track width Fixed
Adjustable shock angle Fixed
Special feature 1 Length: 350mm, Width: 270mm, Height: 210mm
Special feature 2 The realistic injection-molded resin body features separate cab and rear bed parts.
Special feature 3 Alternate rear bed between flat and raised positions by changing the position of the 2 stays and snap pins in the body mounts. Note: It is not advised to put objects in the rear bed, or drive the model with it elevated.
Special feature 4 Chassis and deep rim wheel parts are molded in yellow for an authentic appearance.
Special feature 5 The 4WD GF-01 chassis provides an excellent feeling of big scale, and uses front and rear differentials in sealed gearboxes integrated in the frame.
Special feature 6 4-wheel double wishbone suspension uses friction dampers.
Special feature 7 The 'square' setup chassis uses similar tread (194mm) and wheelbase (174mm) lengths.
Special feature 8 Torque-tuned motor is included.
Special feature 9 Comes with 115mm-diameter tires

Auto on rakennussarja, johon tarvitset lisäksi (katso lisävarusteet):

Radiolaitteet, akun, laturin, latausjohdon, ohjausservon ja paristot lähettimeen
