The
AN/TPY-2 radars are high resolution, phased array, X-band radars
designed and built specifically for the missile defense mission. The
radar can be deployed in one of two modes: terminal or forward-based.
In terminal mode, the TPY-2 radar is integrated with a THAAD system, and
serves as its primary sensor. In this mode, the sensor is oriented
upward to track the late stages of the missile track enabling the
THAAD’s capability to intercept both outside the atmosphere and once a
reentry vehicle enters the atmosphere. This mode carries a shorter range
because of the orientation of the radar.
In forward-based mode, the radar provides crucial sensor tracks of missiles in boost/early midcourse phase to the GMD system. From these forward-based locations, the TPY-2 are able detect and track missiles in their boost and early midcourse phases, determining information such as its speed and trajectory.
| Item No | 07177 |

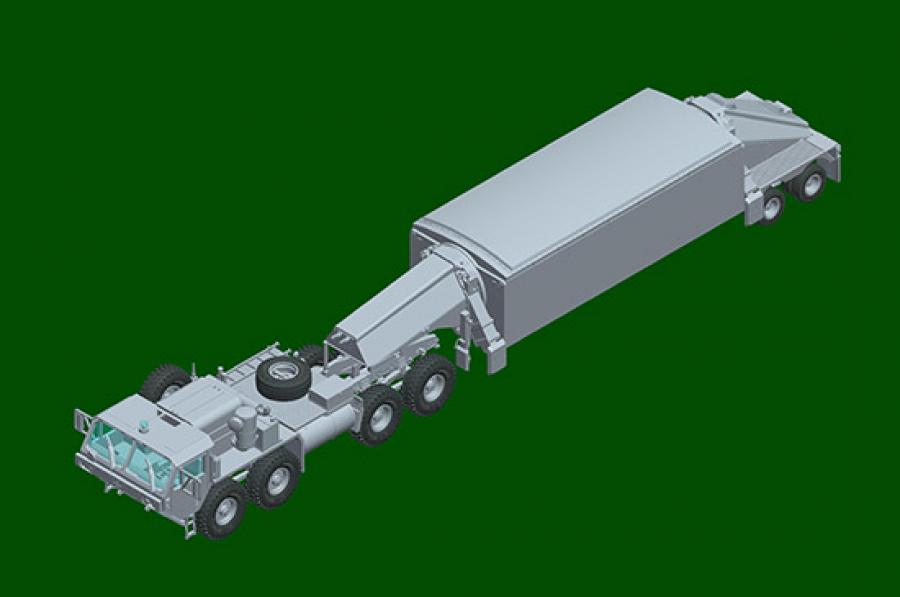

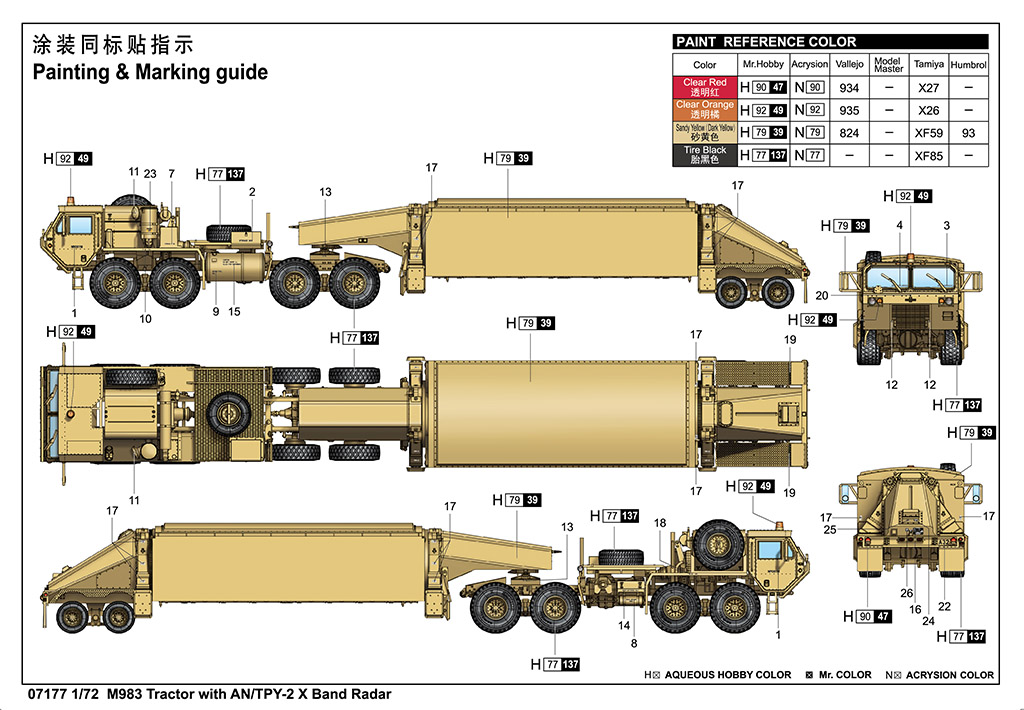

| Item Name | M983 Tractor with AN/TPY-2 X Band Radar |
| Bar Code | 9580208071770 |
| Scale | 1:72 |
| Item Type | Plastic Model Armor Kit |
| Model Brief | Length: 225mm Width: 72mm |
| Total Parts | 110+ |
| Metal Parts | n/a |
| Photo Etched Parts | n/a |
| Film Parts | n/a |
| Resin Parts | n/a |
| Total Sprues | 6 sprues, cabin , frame and tires |
| Released Date | 2022-09 |
| More Features |
The kit consists of over 110 parts -rubber tires |
