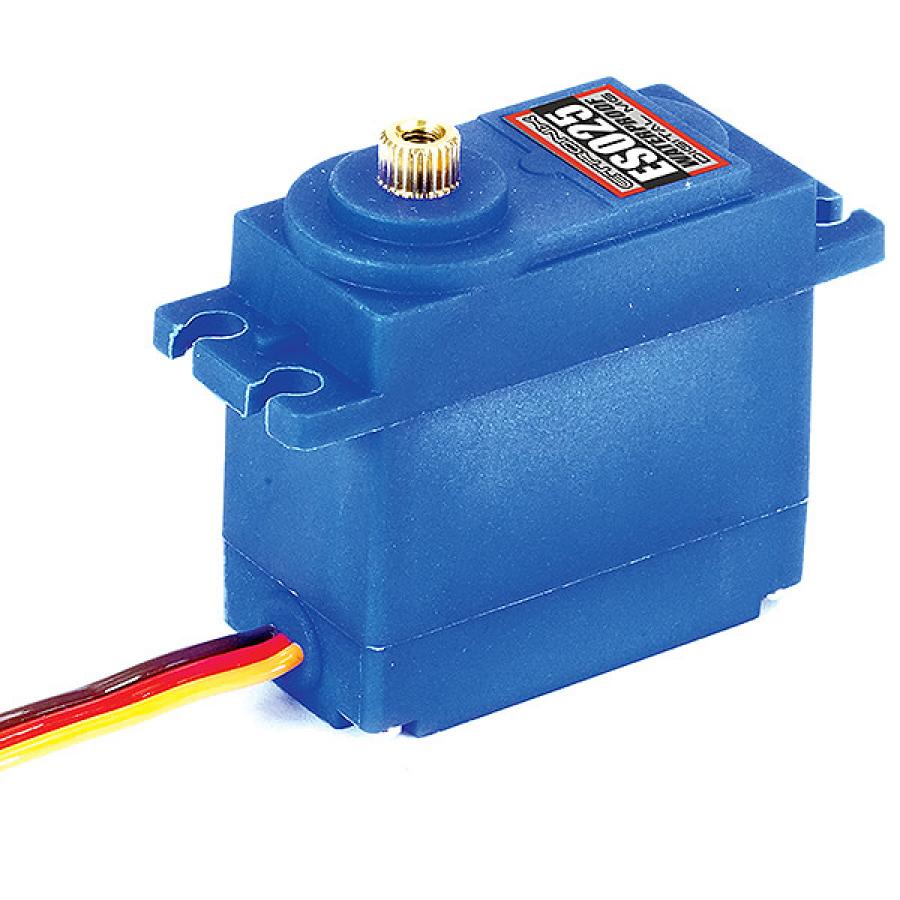

ETRONIX ES025 25KG STD SIZE DIGI WATERPROOF MG SERVO

Etronix
2reviews
Water Resistance!
40,90 €
Reference: ET0025EAN code: 5056135750865
Shelf location: A269
2 Available from supplier, Suppliers stock 6-12
See all shipping methods
1
Ask more about the product
Description

Features

  • High performance digital high voltage standard servo
  • Dual ball bearings
  • Waterproof

Specifications

  • Dead Band: 3μs
  • Working Frequency: 1520μs / 330hz
  • Motor: DC motor
  • Gears: Metal
  • Spline size: 25T
  • Operating Speed 4.8V: 0.22sec/60&deg
  • Operating Speed 6.0V: 0.20sec/60&deg
  • Operating Speed 8.4V: 0.16sec/60&deg
  • Stall Torque 4.8V: 22kg.cm
  • Stall Torque 6.0V: 25kg.cm
  • Stall Torque 8.4V: 30kg.cm
  • Dimensions: 40 x 20 x 40mm
  • Weight: 64g
  • Connector Wire Length: 240mm
