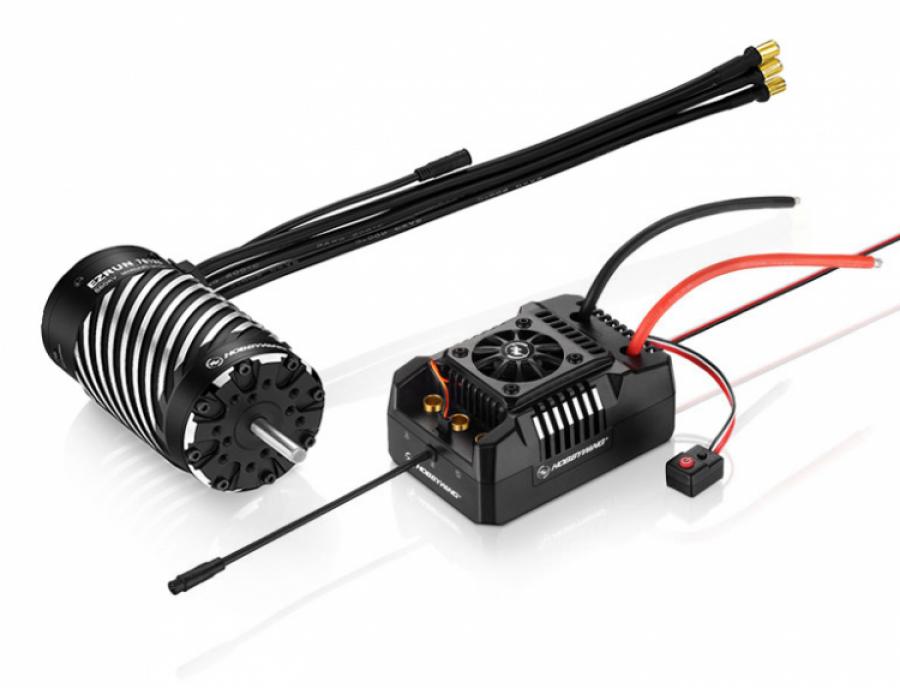

EzRun MAX4 HV ESC & EzRun 70125SD 560KV 8-12S 1/5 Motor Combo
Sensored mode?Flexible?Retract freelyThe
Max4 HV ESC is the most sought-after ESC on the market. It’s dynamic
and dominant specifications meets the needs of power-hungry users. It
has a strong output power with excellent linearity at low speed and is
operating on full-sensored mode.
Extremely powerful and extremely low temperatureThe
internal circuitry board of the ESC has been integrated to use copper
thermal conduction sink. These are built into high-reliability thermal
systems to ensure that it is always in good thermal condition while
supplying a maximum output current of 300A.
New sensored cable interfaceThe
MAX4 HV ESC is equipped with a new type of sensored cable interface. It
is high recommended to use the motors from Hobbywing as the waterproof
protection level is at the highest level (IP67).
ESC Specs:- Scale: 1/5
- Brushless
- Sensored
- Waterproof
- Cont./Peak Current: 300A/2000A
- Input Voltage: 6-12S Lipo
- BEC Output: 6V / 7.4V / 8.4V adjustable, continuous current 10A (Switch-mode)
- Input Wires: 8AWG-200mm
- Output Wires:
- Input Connectors: No
- Output Connectors: 8.0mm Gold (female)
- Fan Size: 50x50x15mm
- Fan Voltage Range: 6-8.4V
- Fan Powered by: BEC
- Firmware Upgrade: Supported
- Size: 125x85x61.7mm
- Weight: 775.4g
- Motors: Sensored brushless motors / Sensorless brushless motors
- Vehicles: 1/5 off-road, trucks (heavy loads)
- KV Rating: 12S LiPo: KV ? 600KV (70125 Size Motors)
ESC Programing via:- SET Button on ESC: Not Supported
- LED Program Box: Supported
- LCD Program Box: Supported
- WiFi Module: Supported
- OTA Programmer: Supported
- Program Port: FAN/Program Port
EzRun 70125SD
Fully sensored mode?High powerThe
EZRUN series of motors are known to be dynamic and dominant. They are
built differently to meet the needs of various demands on the market. It
has a strong output power with an excellent linearity at low speed and
is operating on full-sensored mode.
The perfect combo with the EzRun MAX4 HV ESCThe
motor achieves perfect compatibility when used together with the EzRun
MAX4 HV ESC. It provides ultra-large torque, precise handling
performance, and brings a smooth and comfortable control experience to
the users.
New sensored motor cable interfaceThe
70125SD motor is equipped with a new type of sensored cable interface.
It is high recommended to use the motor together with Hobbywing MAX4 ESC
as the waterproof protection level is at the highest level (IP67).
Note, the bearings are not IP rated.
Motor Specs:- Scale: 1/5
- Brushless
- Sensored
- Pole Count: 4
- KV Rating: 560
- LiPo Cells: 8-12S
- No-load Current: 3.6A
- O.D.: 70mm
- Length: 125mm
- Shaft Diameter: 8mm
- Weight: 1995g
- Front Bearing: OD22 x ID8 x T7mm (not IP rated)
- Rear Bearing: OD22 x ID8 x T7mm (not IP rated)
- Applications: 1/5 Heavy-duty Off-road, Truck
