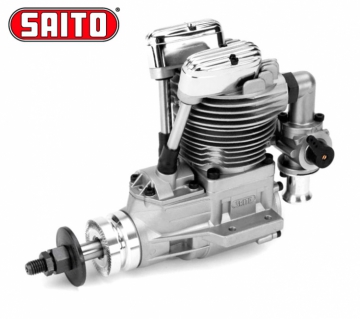

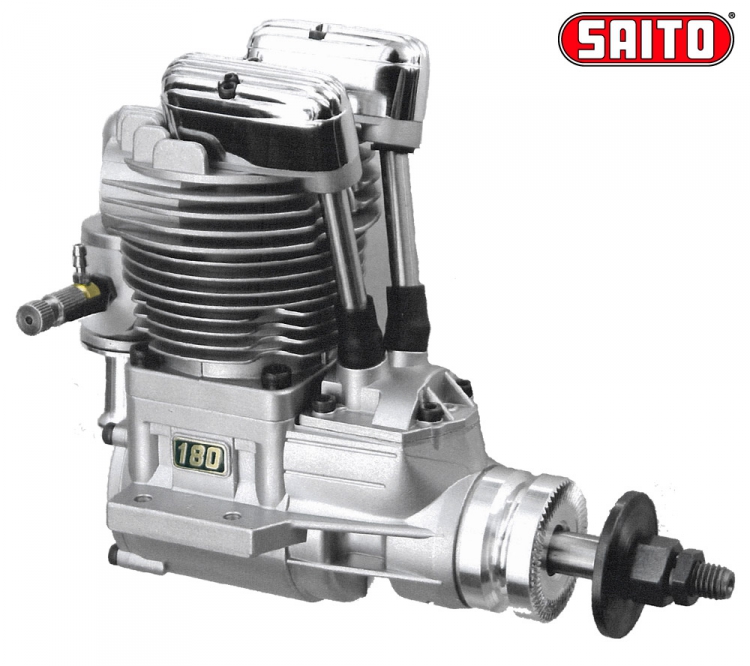

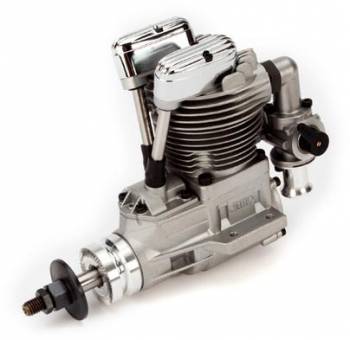

Saito® FA-180B - Four Stroke Glow EngineThe Saito FA-180B is a remodelled version of the FA-180, the only parts that have changed are the Cylinder, Crankcase, Cam gear housing, and Engine gasket set.
The Saito FA-180B has the same mounting dimensions as the popular Saito FA-120 and FA-150. The only increase is an extra 2mm on the height of the rocker cover, so it will fit straight in most 1.20 size models.
Updated B version of the Saito FA-180
Same dimensions as the Saito FA-120 & FA-150
Upgraded parts Cylinder, Crankcase, Cam gear housing and Engine gasket set
Specs:
Displacement: 29.11 cc
Bore: 36.00 mm
Stroke: 28.60 mm
Carb Type: Barrel 2-Needle Valve
Crank Type: Ball Bearing
Crankshaft Threads: M8 x 1.25 mm
Cylinder Type: AAC
Cylinders: Single
Weight: 931 g (with muffler aprox. 1013 g)

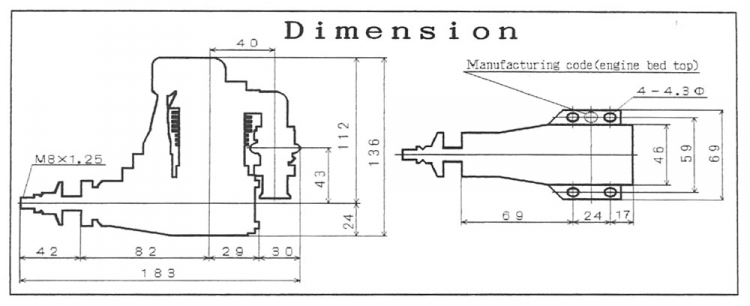

Mounting Dimensions: 138 x 69 x 135 mm
Muffler Type: Cast
Prop Range: 15x8 - 18x6
Recommended Prop: APC 16x8 (thrust 5.0 kg)
Recommended Prop: APC 16x10 (thrust 5.5 kg)
Recommended Prop: APC 17x8 APC (thrust 5.7 kg)
RPM Range: 2.300 - 10.000
Maximum RPM on ground: 8.500 - 9.500
Recommended Fuel: Glow fuel with 10-20% Nitro and Synthetic Oil
