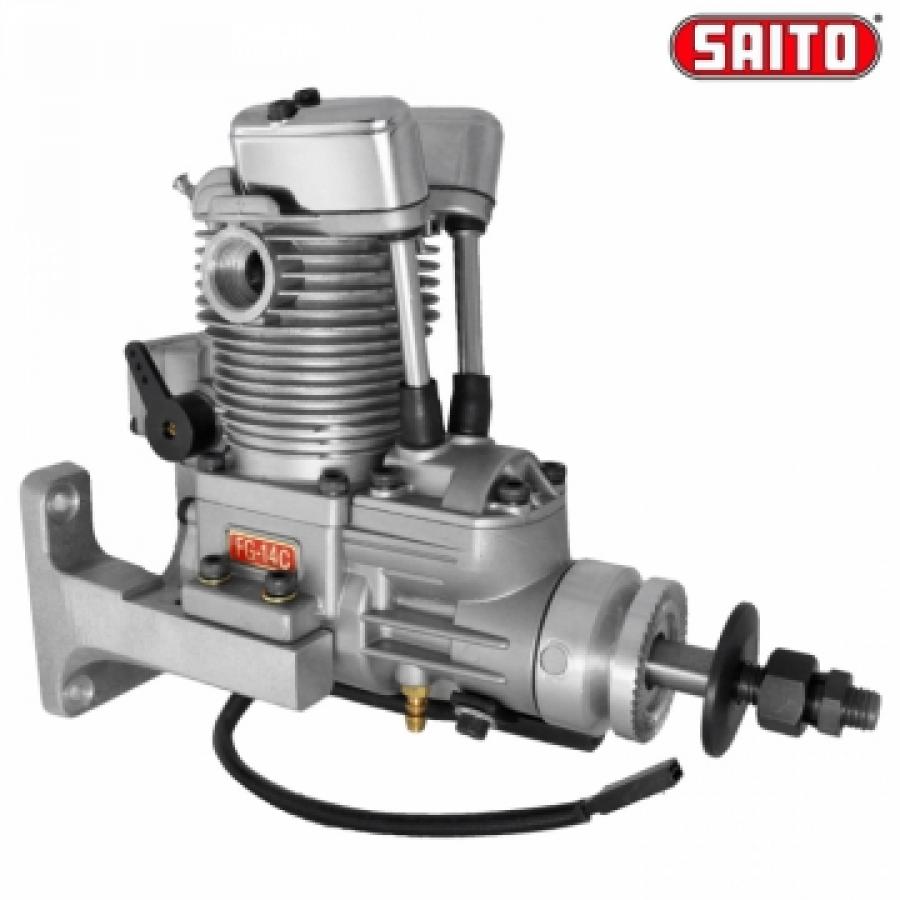

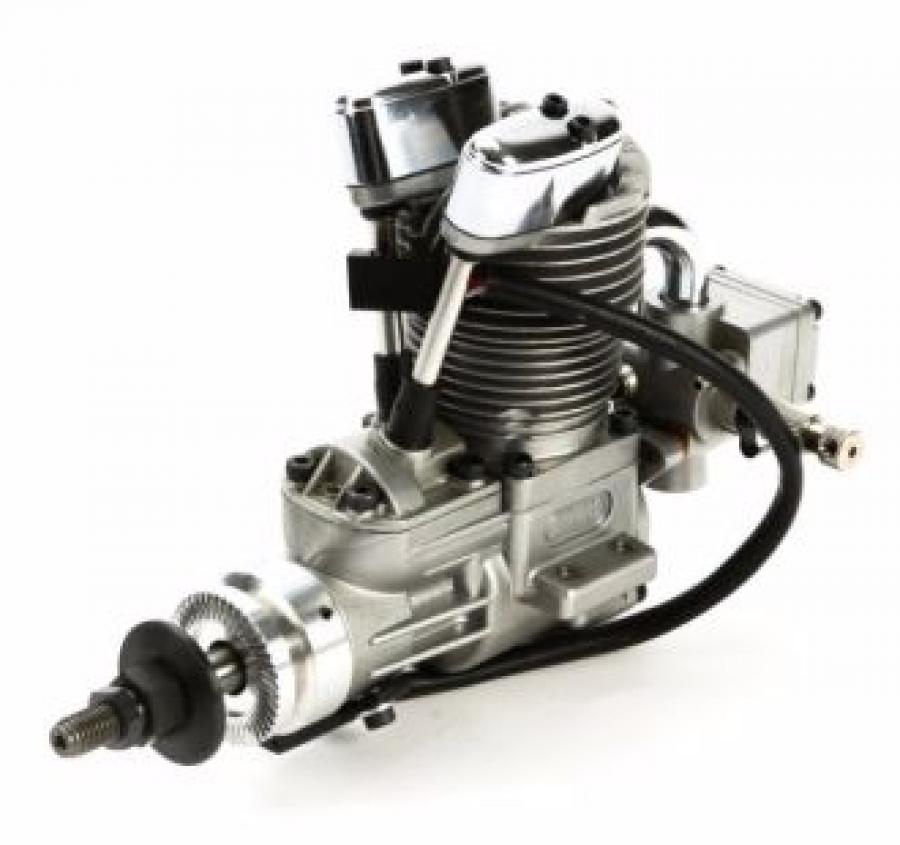

FG-14C 14cc 4-stroke Gasoline Engine

Manufactor: Saito
549,00 €
star star star star star
Shipping 4-6 business days
-
+
Add to cart Add to cart

wishlist Add to wish list


Product code: SAFG-14C
Number: SAFG-14C
Stock place: 0.0
Brand: Saito

Technical information Reviews

Technical information

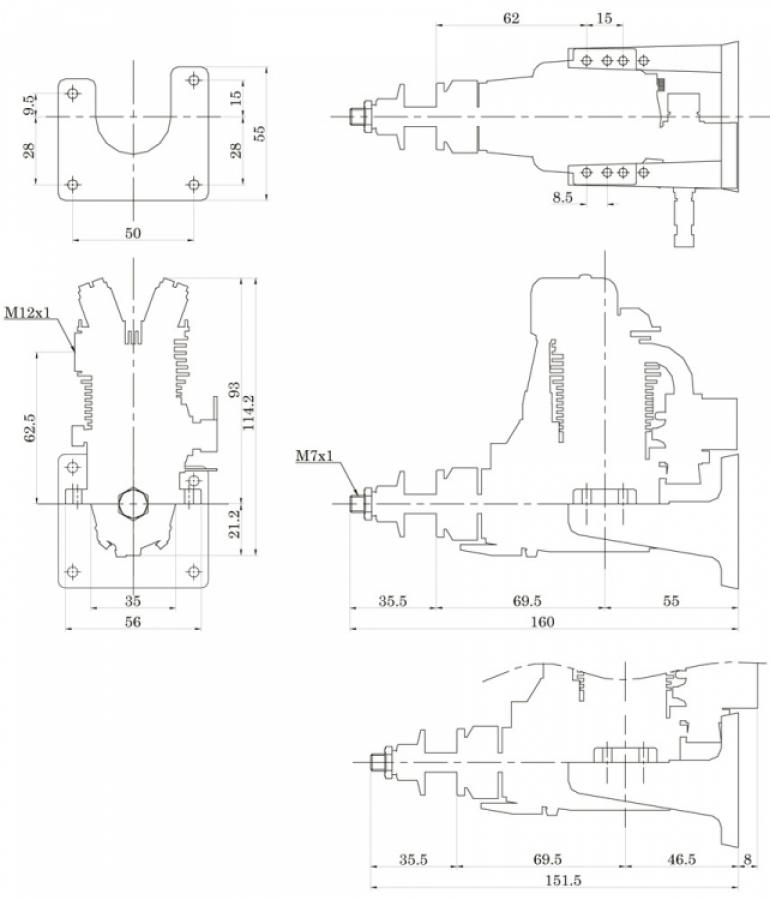

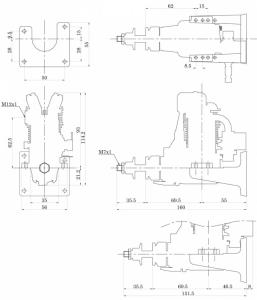

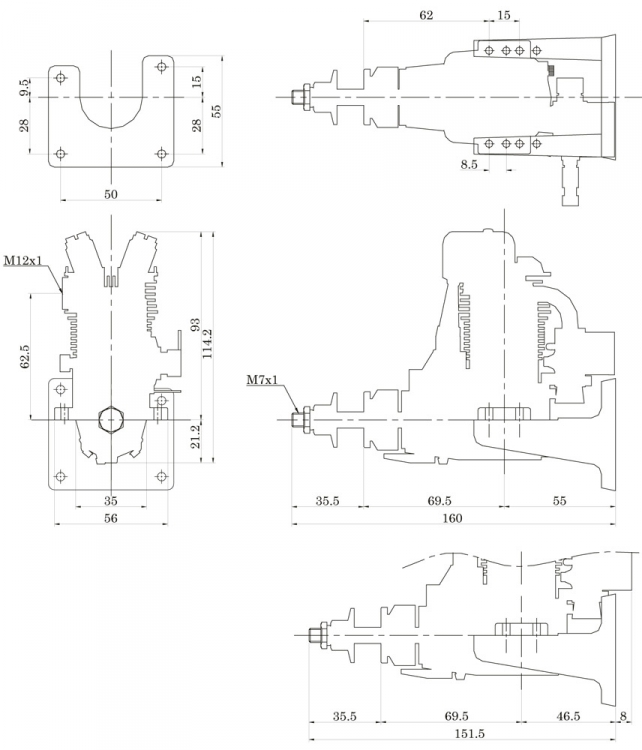

Saito FG-14C is the new model modified from FG-14B with new ignition system and drive flange. The dimensional drawing is just the same as FG-14B. The new ignition system comes with the compact case and sensor compared to the previous type.

  • Displacement: 13.47 cc
  • Applications: 4-stroke glow .70 class
  • Bore: 29.0 mm
  • Stroke: 20.4 mm
  • Motor weight: 528 g
  • Muffler weight: 57 g
  • Ignition system weight: 145 g
  • Engine mount weight: 124 g
  • Practical RPM: 1900-9500
  • Max RPM on Ground (stationary): 9000
  • Propeller: 13x8" - 14x6"
  • Static thrust: with APC 13x8 = 2.3 kg & APC 14x6" = 3.2 kg
  • Fuel: Regular gasoline & oil = 20:1 (volume ratio)
  • Fuel consumption: aprox 8 cc/min (@ fulll throttle 9000 rpm)
  • Battery for ignition system: 4.8-6V with more than 1Ah is recommended

Recommended gasoline fuel oils:

  • Klotz Original TechniPlate®
  • Klotz R/C Modelube®

Included:
  • Engine
  • Motor Mount
  • Exhaust
  • Ignition System
