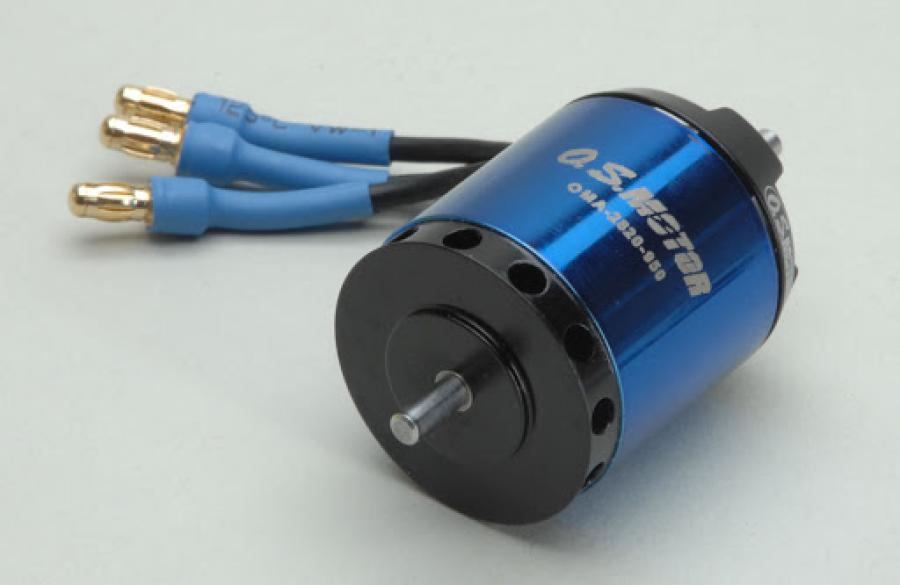

O.S. Brushless Motor OMA-2820-950

OS Engines
67,80 €
Reference: OS51010310EAN code: 4531028500402
Shelf location: 0.0
0 Not available now, Not available
See all shipping methods

Order an arrival notification to your e-mail, and you will immediately be informed when the product is available again.

Ask more about the product
Description

Expansion of the O.S. BRUSHLESS motor series
Well-known high-precision O.S. production quality
Ideal as drive for small motorised RC models
Optimum cooling system integrated

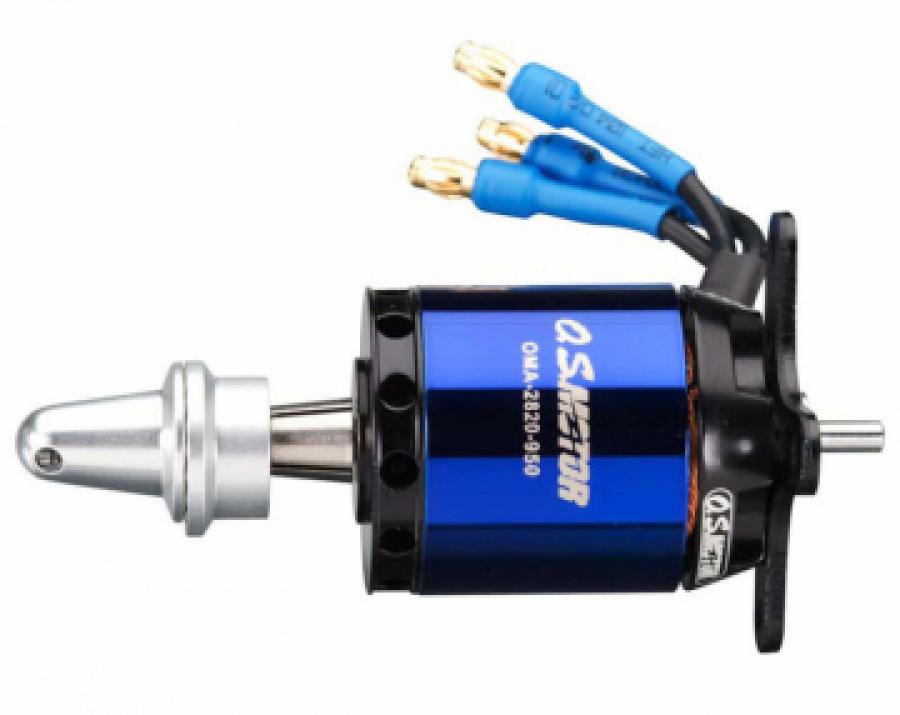

Supplied complete with accessories such as aircraft propeller hub with clamping cone, motor bracket with retaining screws as well as gold-plated bushings with heatshrink tubing
Operating instructions with performance table in German, English and French

Specification



  • Connecting plug : G3,5
  • Number of poles: 14
  • Sort: Brushless
  • Operating voltage range [V]: 7,4 - 11,1
  • Width o.a. [mm]: 36,5
  • Recommended propeller: No. 1326.10x5 with 3S LiPo
  • Free shaft length [mm]: 7
  • Case diameter: 28,0
  • Case length: 36,5
  • Weight [g]: 80
  • Weight approx. [g]: 80
  • Maximum efficiency: 80
  • Height [mm]: 28
  • Overall length [mm]: 43,5
  • No-load speed [rpm]: 10545
  • No-load current drain [A] : 0,9 ( bei 10 V)
  • Output [kW / (PS)]: 250
  • Magnet : Neodym
  • Max. output at nominal voltage [W]: 244
  • Nominal voltage [V]: 11,1
  • Thrust in N (1 N = 100 g) : 14
  • Max. charging rate [A]: 30
  • Revolutions / Volt [kV]: 950
  • Shaft diameter [mm]: 3
  • Turns : 14
  • Permissible motor direction : CW / CCW
