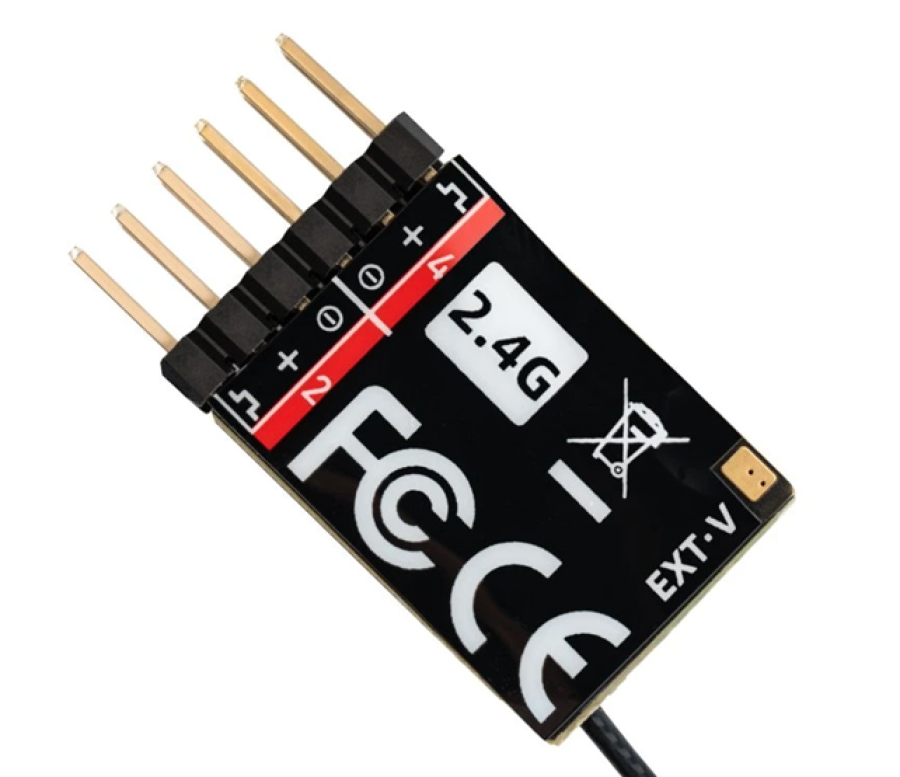

ER4 2.4GHz ELRS PWM Receiver
The RadioMaster ER4 PWM receiver can drive 4 servos simultaneously. Designed with a very small volume, it is suitable for small aircraft models, ship models, car models, and other models that require a small or lightweight receiver while still providing full range.
Features:
- Based on the Revolutionary ExpressLRS System
- High performance, high reliability, flexible configuration, fast response speed and ultra-long range
- Support 4 PWM Channel
- Optimized ground-up PCB design
- Automatically voltage telemetry of external battery voltage or built-in receiver voltage
- Supports Wi-Fi updates and WEBUI configuration
- High-quality 2.54 mm connector
- Standard 15 cm High Sensitivity Antenna
Specification:
Item: ER4 2.4GHz ELRS PWM Receiver
Power supply: DC 4.5 - 8.4V
Antenna type: 15cm high sensitivity antenna
Wireless protocol: ExpressLRS 3.3.0 pre-installed
Output channel: 4CH PWM
Telemetry power: 10mw
Battery voltage detection range: DC 4.0- 35V
Weight: 3.0 grams
Dimensions: 30x15x5mm
Firmware: Device Category: RadioMaster 2.4Ghz / Device: RadioMaster ER4 2400 PWM RX
