Radiomaster XR2 Nano 2.4GHz ExpressLRS Receiver

Product detailed description

Receiver RadioMaster XR2 Nano 2.4GHz ExpressLRS

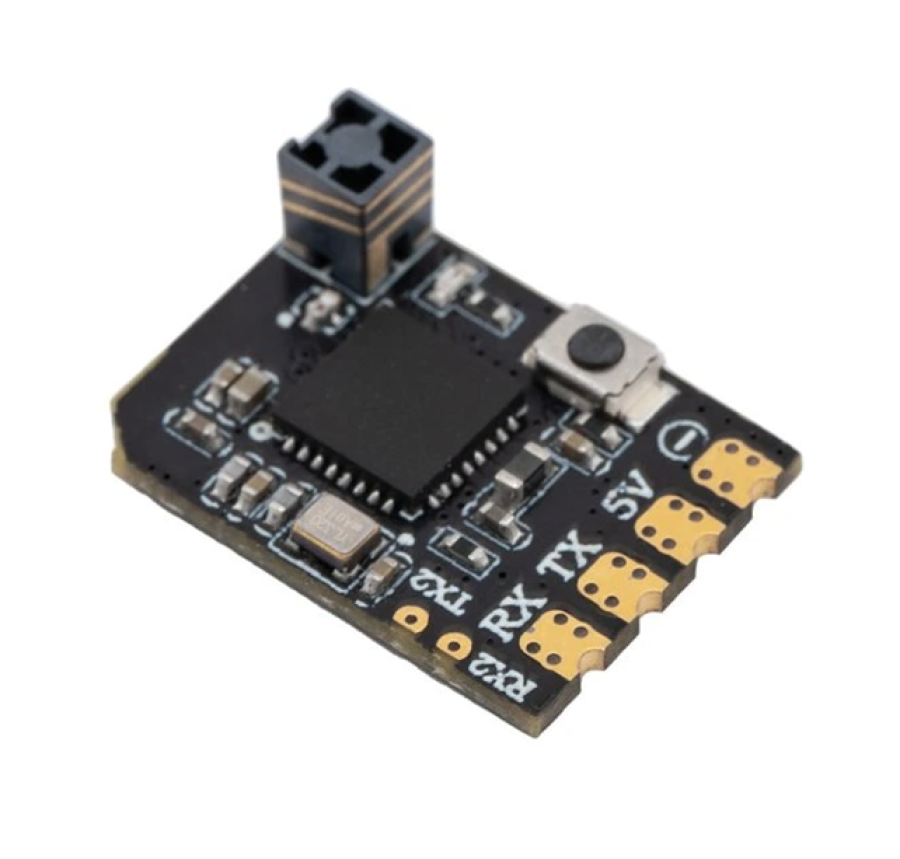

The XR2 Receiver is a nano-sized powerhouse engineered for 2.4GHz ExpressLRS, featuring an integrated antenna that delivers exceptional reception within its ultra-compact design. With a footprint of just 16x12mm and a lightweight of only 0.8g, it fits seamlessly into even the most space-constrained builds. Driven by the advanced Semtech LR1121 transceiver (third generation), the XR2 offers compatibility with all ELRS 2.4GHz transmitters and unlocks the benefits of DK500Hz mode for LR1121-based systems, ensuring unparalleled reliability and responsiveness. The built-in Wi-Fi module simplifies firmware updates and configuration via a WebUI on your PC or mobile device. With ultra-low latency and high refresh rates, the XR2 stands out in Whoops, micro drones, and fixed-wing models, where every gram and millimeter counts for peak performance.

Features:
- Integrated 2.4GHz tower antenna
- ExpressLRS 2.4GHz
- ESP32C3 high-performance MCU
- Semtech LR1121 Transceiver
- Secondary UART port for advanced functionality
- Castled pads for easy soldering

Specification:
Item: XR2 Nano 2.4GHz ExpressLRS Receiver
Type: ISM2.4
MCU: ESP32C3
RF Chip: Semtech LR1121
Antenna: Integrated 2.4GHz Tower Antenna
Frequency Range: 2.400 - 2.479GHz
Telemetry Power: 10mW
Maximum Packet rate: DK500Hz
Minimum Packet refresh rate: 50Hz
Working voltage: 5V
Weight: 0.8g
Dimension: 16x12x6mm
Firmware Version: ExpressLRS v3.5.1 pre-installed
FW Target:  RadioMaster XR2 2.4 RX
Bus interface 1: CRSF
Bus interface 2: UART

Package Include:
1x XR2 Nano 2.4GHz ExpressLRS Receiver
1x CRSF Wire
3x Heat-Shrinkable Tube
