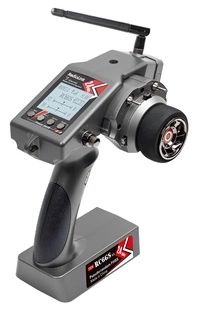

RadioLink RC6GS V3 7-Channel Radio with 2 R7FG Receivers
The RadioLink RC6GS V3 is a 7-channel radio transmitter for RC cars, boats, remote-controlled lifebuoys, tracked vehicles and robotics projects, with stable control, long range and features such as telemetry, cruise control, dual mixing control and FPV head tracking. It comes with two R7FG receivers featuring an integrated gyro, support for high-voltage servos and model-voltage telemetry.
- 7-channel radio transmitter for cars, boats, lifebuoys and tracked vehicles
- Supplied with 2 R7FG receivers with an integrated gyro
- Up to 600 metres of range under optimal conditions
- FHSS spread spectrum with 67-channel pseudorandom frequency hopping
- Model memory for up to 30 models
- Cruise control function for crawlers, for example
- Support for real-time telemetry
- Support for model battery telemetry up to 14S with a compatible receiver
- FPV head tracking function
- Programmable timer and dual mixing control
- DSC port for simulator function, FPV head tracking or TBS Crossfire
- USB upgrade via computer
Stable control with up to 600 metres of range
The RC6GS V3 uses FHSS spread spectrum with 67-channel pseudorandom frequency hopping for strong interference protection and stable control. It is specified for up to 600 metres of range under open, interference-free conditions.
7 channels for many types of models
The radio suits many types of RC cars, boats and robotics projects, for example crawlers, tanks, tracked vehicles, drift cars, monster trucks, sailboats and bait boats. The 7 channels add flexibility for models with several functions, such as the gearbox, differential locks and winch on a crawler.
Real-time telemetry for the model's battery voltage
The RC6GS V3 supports telemetry for RSSI, receiver voltage and the model’s battery voltage, shown by connecting the cable to the ESC and battery. With the R8FGH and R16F, telemetry is supported up to 14S, 58.8 V, and with the R7FG or R8FG up to 8S, 33.6 V.
Cruise control system for crawlers
The cruise control system is particularly useful when crawling, for example on downhill sections where it is hard to hold a steady throttle manually, giving smoother driving in technical terrain.
Model memory for up to 30 models
The RC6GS V3 stores settings for up to 30 models, so you can easily switch between several RC cars, boats or projects without setting up the radio from scratch.
Subsidiary ID function
The RC6GS V3 can assign any ID numbers to up to 10 bound receivers, which is useful for rescue, towing or controlling several models with the same transmitter.
Programmable D/R via switch
A switch or button can be set to activate D/R while driving, so you can quickly change steering travel without entering the LCD menu – practical with four-wheel steering.
Dual programmable mixing control
The RC6GS V3 has dual programmable mixing control, where two freely selectable channels can be set as mixed channels. For logging trucks, for example, mixing can combine front- and rear-wheel steering to reduce the turning radius.
DSC port for simulator, FPV head tracking or TBS Crossfire
The DSC port can be set up for simulator use, FPV head tracking or TBS Crossfire. The simulator function supports simulators such as VRC Pro, CarX and Assetto Corsa Competizione, and FPV head tracking can be 3-axis or 2-axis.
FPV head tracking function
With FPV goggles, the RC6GS V3 can control the camera’s movements up, down, left and right, which is interesting for FPV driving and crawling. It is also compatible with TBS Crossfire via the DSC port.

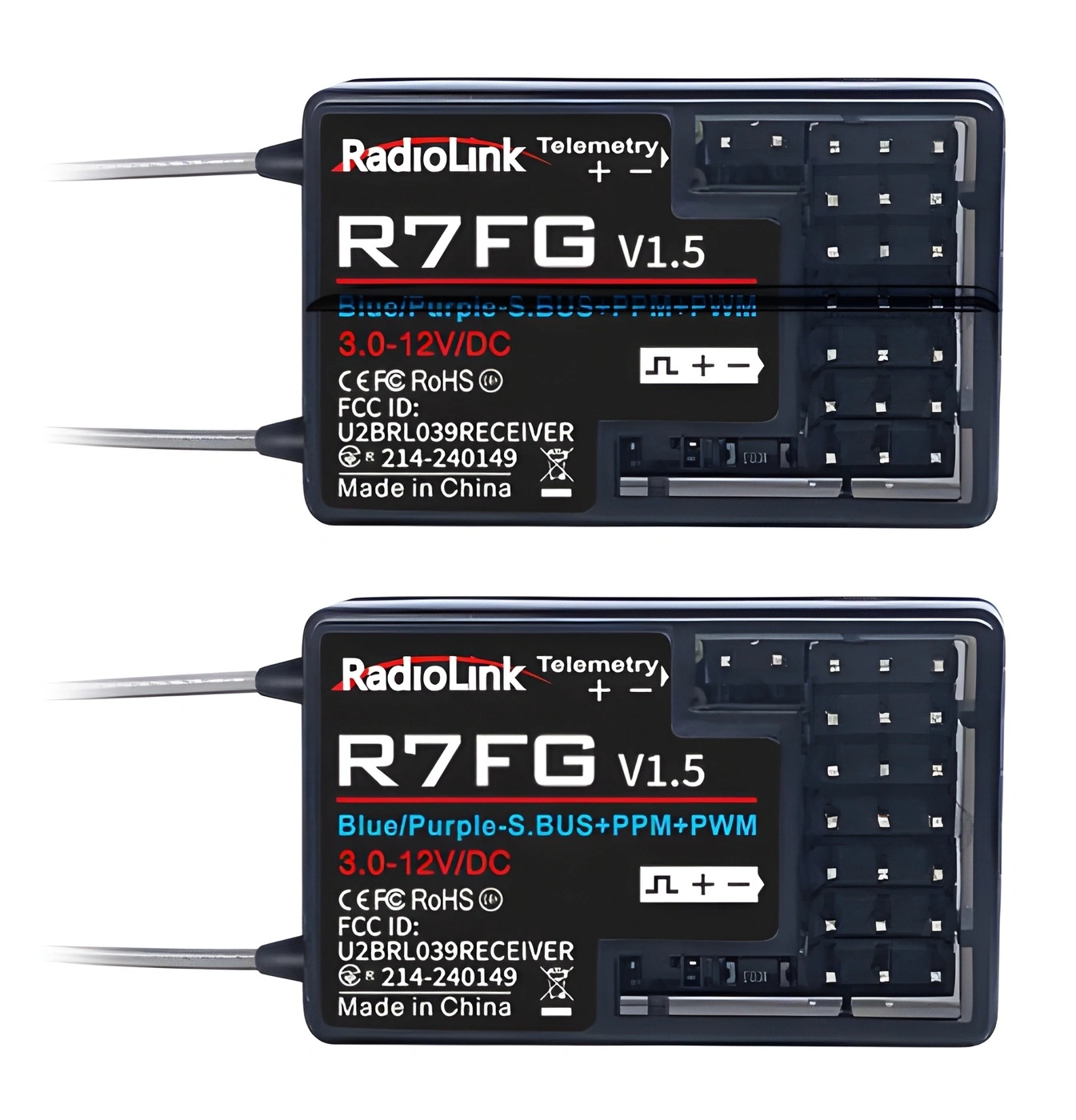

R7FG receiver with integrated gyro
The supplied R7FG receivers have an integrated gyro and support for high-voltage servos; the gyro helps the vehicle hold its heading and reduces drift at higher speeds. The gyro sensitivity is adjusted via STD or CH3 and is controlled by the VR switch by default.
Ergonomic design for longer driving sessions
The RC6GS V3 is designed for comfortable use during longer driving sessions, with the throttle trigger, grip and switch placement set up for a natural and precise control feel.
- Knurled design that contributes to a better grip during longer driving
- A lanyard is included for more comfortable handling during longer driving sessions
- FPV display holder with 1/4-inch thread
- Clearly placed switches for easier use
Can be upgraded via USB
The RC6GS V3 is updated via computer with a USB cable, and the software guides you through the process. The USB port is intended only for upgrading, not charging.
Wide receiver compatibility
The RC6GS V3 comes with two R7FG receivers and is also compatible with several other RadioLink receivers.
- R7FG, standard receiver
- R4FGM
- R6FG
- R6F
- R8FG
- R8EF
- R8FGH
- R12F
- R16F
Suitable for many model types
- RC cars
- Crawlers
- Drift cars
- Monster trucks
- Short course trucks
- Tracked vehicles and tanks
- RC boats and bait boats
- Remote-controlled lifebuoys
- Robotics projects
Technical specifications – RC6GS V3 transmitter
- Model: RadioLink RC6GS V3
- Product type: 7-channel radio transmitter
- Size: 174.8 x 116.4 x 224.2 mm
- Antenna length: 106 mm
- Battery compartment: 89 x 59 x 25 mm, JST connector
- Weight: 319 g
- Channels: 7
- Frequency band: 2.4 GHz ISM band, 2400–2483.5 MHz
- Spread spectrum mode: FHSS, 67-channel pseudorandom frequency hopping
- Channel resolution: 4096 with normal jitter of 0.25 µs
- Operating voltage: 4.8–15 V, 6 AA batteries or 2S–4S LiPo battery
- Operating current: 80–120 mA
- Modulation mode: GFSK
- RF power: <20 dBm
- Suitable model types: Crawlers, tanks, tracked vehicles, remote-controlled lifebuoys, RC cars, RC boats and robots
- Model memory: 30 models
- Range: Up to 600 m under open, interference-free conditions
- LCD display: 128 x 64 resolution, LCD backlight
- Low-voltage alarm: Yes, below 7.2 V or configured for a 2S–4S battery per model
- Low RSSI alarm: Yes
- Low model battery voltage alarm: Telemetry for up to 8S, 33.6 V, with the R7FG
- Compatible receivers: R7FG, R16F, R12F, R8FGH, R8FG, R8EF, R6FG, R6F and R4FGM
- CRSF protocol: Supported via TBS Crossfire connected to the DSC port
- FPV head tracking function: Supported
- Simulator function: Supported
- Timer function: Supported
- Compatible flight controller hardware: ArduPilot, Pixhawk, BetaFlight, Arduino and Raspberry Pi can be connected with an SBUS signal
- Operating temperature: -30 °C to 85 °C
Technical specifications – R7FG receiver
- Model: RadioLink R7FG
- Product type: 7-channel receiver with integrated gyro
- Size: 35 x 22 x 14 mm
- Antenna length: 205 mm
- Weight: 6 g
- Channels: 7
- Signal output: PWM + PPM + SBUS
- Voltage range: 3–12 V
- Operating current: 30 mA, depending on supply voltage
- Frequency band: 2.4 GHz ISM band, 2400–2483.5 MHz
- Spread spectrum mode: FHSS, 67-channel pseudorandom frequency hopping
- Channel resolution: 4096 with 0.25 µs per section
- Real-time telemetry: Model voltage via connection to the ESC, battery and telemetry port
- Maximum telemetry voltage: Up to 8S, 33.6 V
- Gyro mode: Integrated gyro with adjustable gyro sensitivity
- Model application: Cars, boats and robots
- Control range: Up to 600 m on the ground
- Compatible transmitters: RC8X, RC6GS V3, RC4GS V3, RC6GS V2, RC4GS V2, RC6GS, RC4GS, T16D, T12D, T8FB and T8S
Good to know
The actual range can vary with the model, installation, antenna placement, environment and signal conditions. Model-battery telemetry requires a compatible receiver and correct connection, and you should always make sure the receiver, model type, channel settings, gyro sensitivity and any telemetry and DSC functions are correctly configured before use.
