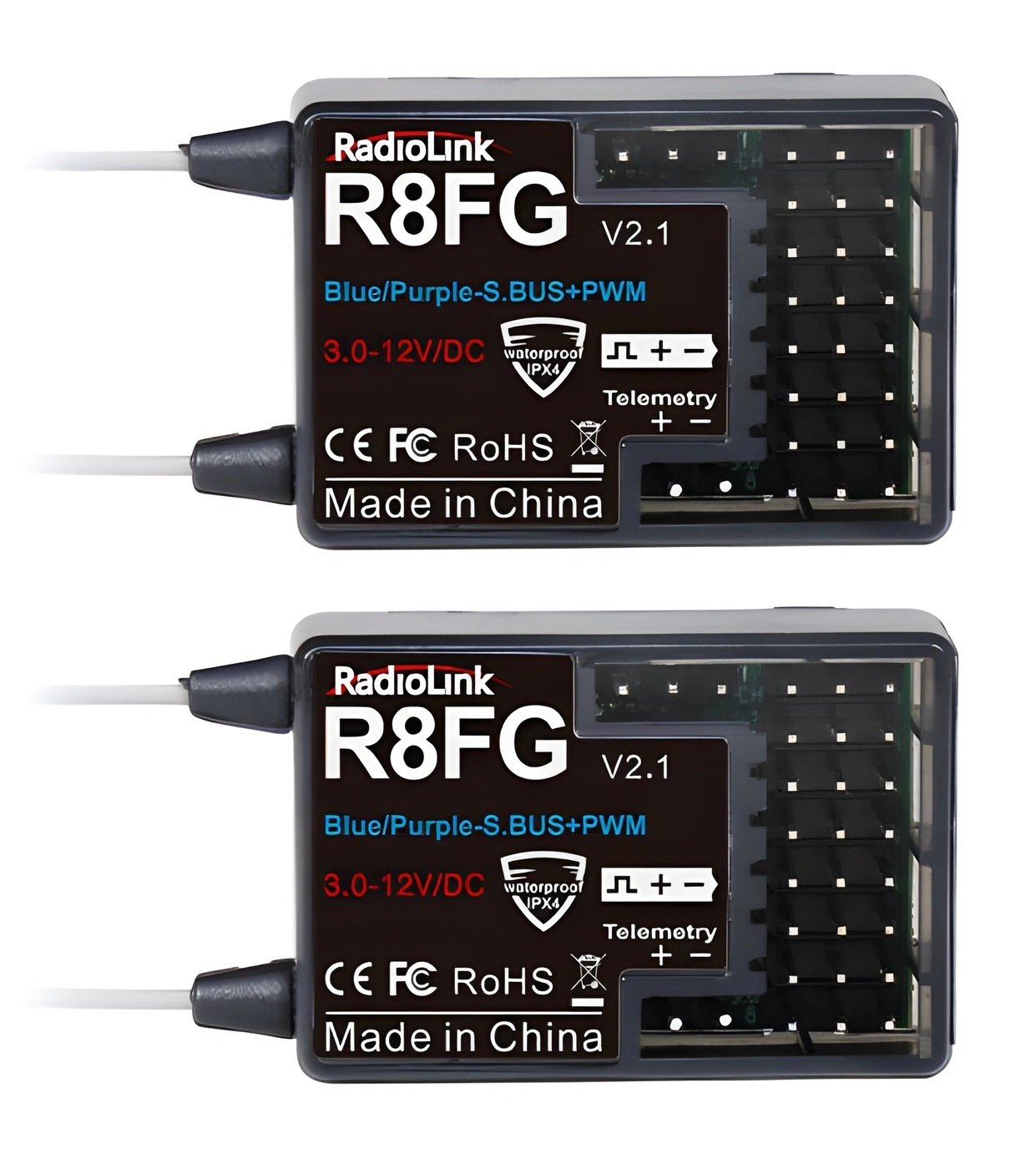

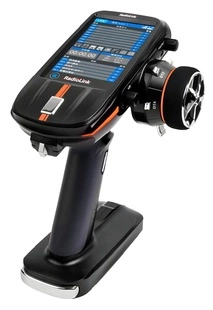

The RC8X is an 8-channel transmitter for RC cars, boats and robot projects. It is operated from a 4.3-inch colour touchscreen rather than the small LCD and button rows used on most surface radios, and it stores settings for up to 200 models. This version ships with two R8FG receivers, each with an integrated gyro, IPX4 splash protection and real-time telemetry, so two models can be set up from the start.
Ground range reaches 600 m under open conditions and the response time goes down to 3 ms with a digital servo and a V2.1-marked receiver. Voice prompts, eight groups of programmable mixing and an FPV view on the built-in screen are all configured from the touchscreen menu itself, with no programming involved.
Key facts
- Eight groups of programmable mixing, including 4WS, brake, tank and tilt
- Live telemetry on screen: RSSI, receiver voltage and model battery voltage
- The screen doubles as an FPV view with an external 5.8 GHz receiver module
- DSC port for RC simulators, FPV head tracking or a TBS Crossfire module
- Menus and voice prompts in 12 languages, the last two added by firmware V1.3.6
- 32 GB microSD card supplied, and the radio needs one inserted to run
- Wheel mounts on the left or the right, adjustable trigger spring and slider
| Channels | More8, or 16 after a free firmware upgrade |
| Model types | MoreCars, boats and robots |
| Display | More4.3 inch IPS touchscreen, 800 × 480 pixels |
| Range on the ground | MoreUp to 600 m |
| Response time | More14 ms analog, 4 or 3 ms digital |
| Model memory | 200 models |
| Included receivers | More2 × R8FG with gyro, telemetry and IPX4 |
| Power | More8 AAA, 2S–4S LiPo or 6S NiMH |
| Weight | More438.5 g |
Specifications according to the manufacturer. Range, response time and battery life depend on installation and conditions.
