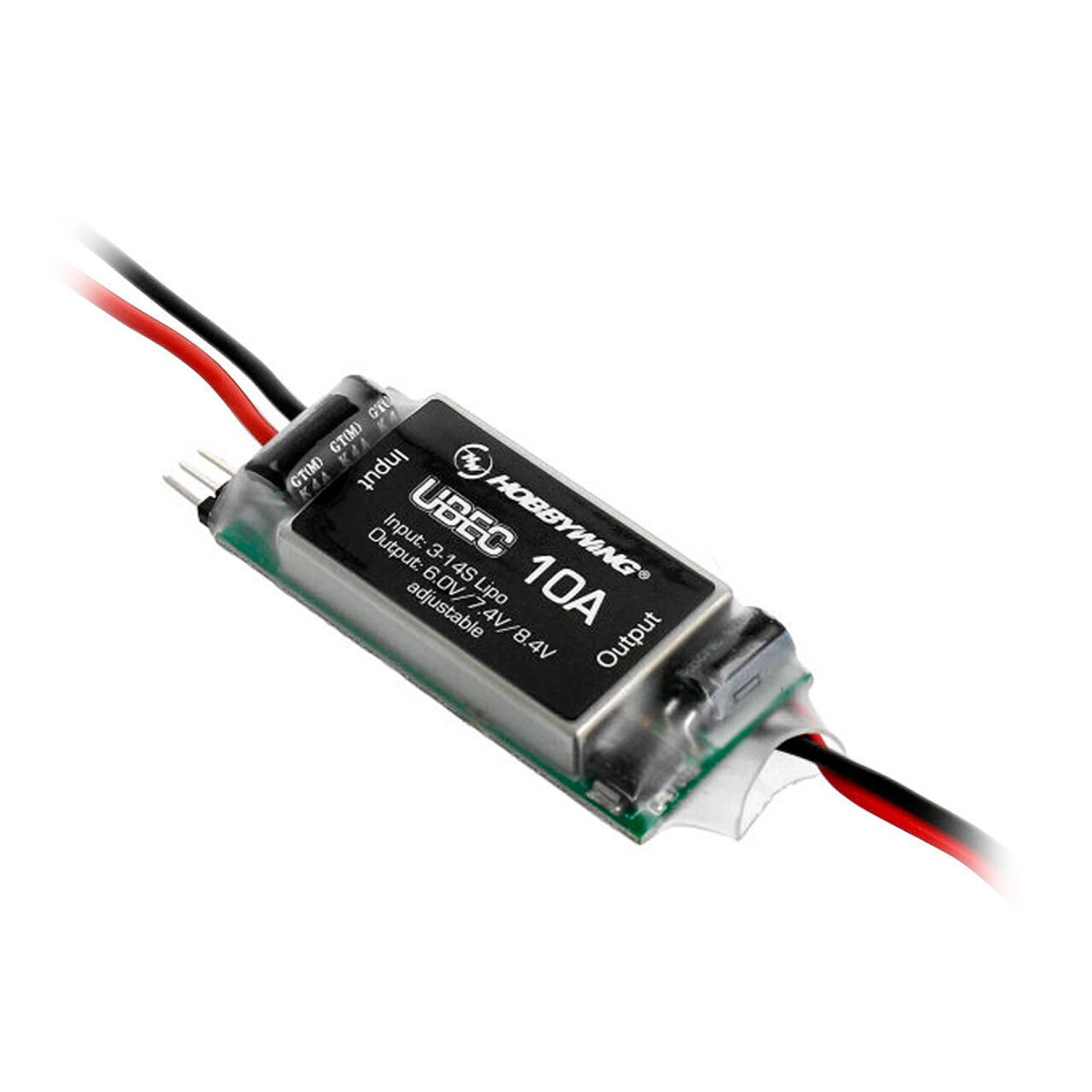

The UBEC uses a high-performance DC voltage regulator with switching module that draws its voltage from 3-14S LiPos. With it the regulator gives out 10A extremely stable or for a short amount of time 25A.Therefore this UBEC provides power for all kinds of RC modell devices. It is also suitable for fixed wing aircraft.
Features:
- Highly efficient DC-DC regulator chip for a transmission efficiency of over 90%.
- An all-metal housing design helps conduct heat and reduces electromagnetic interference.
- Adjustable UBEC output voltage (6.0V / 7.4V / 8.4V) applicable for servos with different voltages.
- Multiple protection functions: overcurrent protection, output short circuit protection, overheating protection, safe and reliable.
- LED display to show the status of the UBEC.
Technical Specifications:
| Input Voltage: | 3-14S LiPo |
| Output Voltage: | 6.0V / 7.4V / 8.4V (adjustable) |
| Current cont./peak: | 10A / 25A |
| Dimensions: | 55x25x12mm |
| Weight: | 35g |
