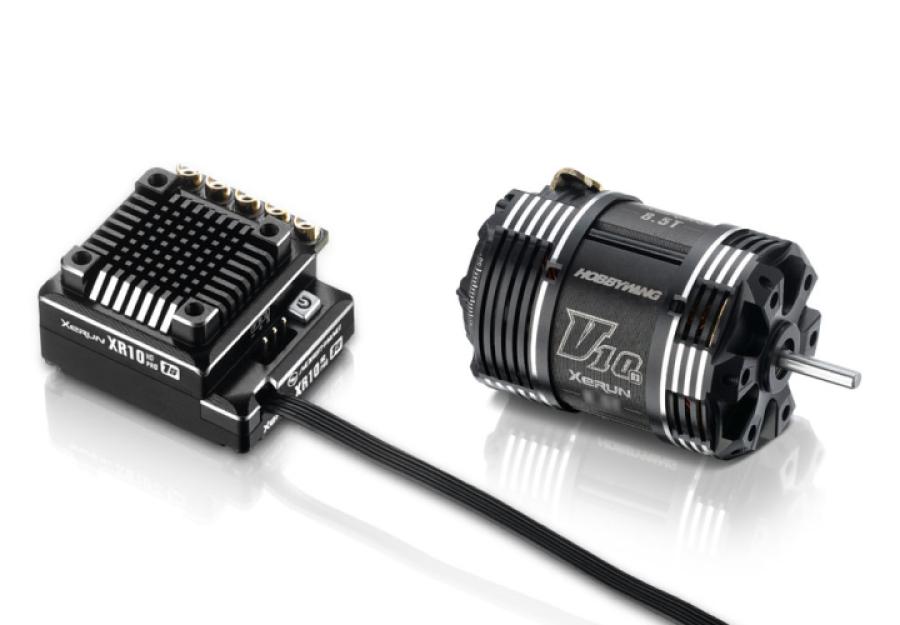

Hobbywing 38020278 - Xerun Combo XR10 Pro 1S HD & V10 G3 3.5T
XeRun XR10 Pro 1S Heavy Duty Racing ESC
Specifications:
- Type: 1/12 scale on-road
- Brushless / Sensored
- Waterproof: No
- Continuous /Peak Current: 120A/830A
- Input Voltage: 1S Lipo/3-4 Cell NiMH
- BEC Output: Switch Mode: 6V/3A
- Input Wires: 12AWG/200mm
- Output Wires: 12AWG/200mm & 14AWG/200mm
- Input Connectors: No
- Output Connectors: No
- SET Button on ESC: Not Supported
- LED Program Box: Not Supported
- LCD Program Box: Supported
- WiFi Module: Supported
- Program Port: Separate Program Port
- Firmware Upgrade: Supported
- Size: 37.5 x 31 x 31 mm
- Weight: 46.7 g
- Motors: Sensored Brushless Motors
- Vehicles: 1/12 scale Pan Cars
- KV Rating/T Count: 1S LiPo: ?3.0T (* ESC in Zero-timing/Blinky Mode)
XeRun V10 G3-3.5T Motor
Specifications:
Type: Brushless, sensored (2-pole)
Turns / KV: 3.5T / 9450 kV
Internal resistance: 0.0018 ?
No-load current: 7.7 A
Max output power: 462 W
Current @ max power: 126 A
Timing range (mechanical): 20°–50°
Dimensions (Ø × L): 35.9 × 51.2 mm
Shaft (Ø × L): 3.17 × 13.3 mm
Weight: 163 g
Recommended LiPo: 1S (typical 1/12 Modified
