Prog/Multi-function Smart Program Box

Manufactor: SkyRC

28,70 €

Temporarily out of stock

The product is temporarily out of stock . We do not have any information on availability.

You can leave your email here and we'll notify you when the product is available.

Send

Add to wish list

Product code:	SK-300046-01
Number:	SK300046
Stock place:	Vitriini
Sähkömoottoritarvikkeet:	Ohjelmointikortit
Brand:	SkyRC

Technical information Reviews

Technical information ∨

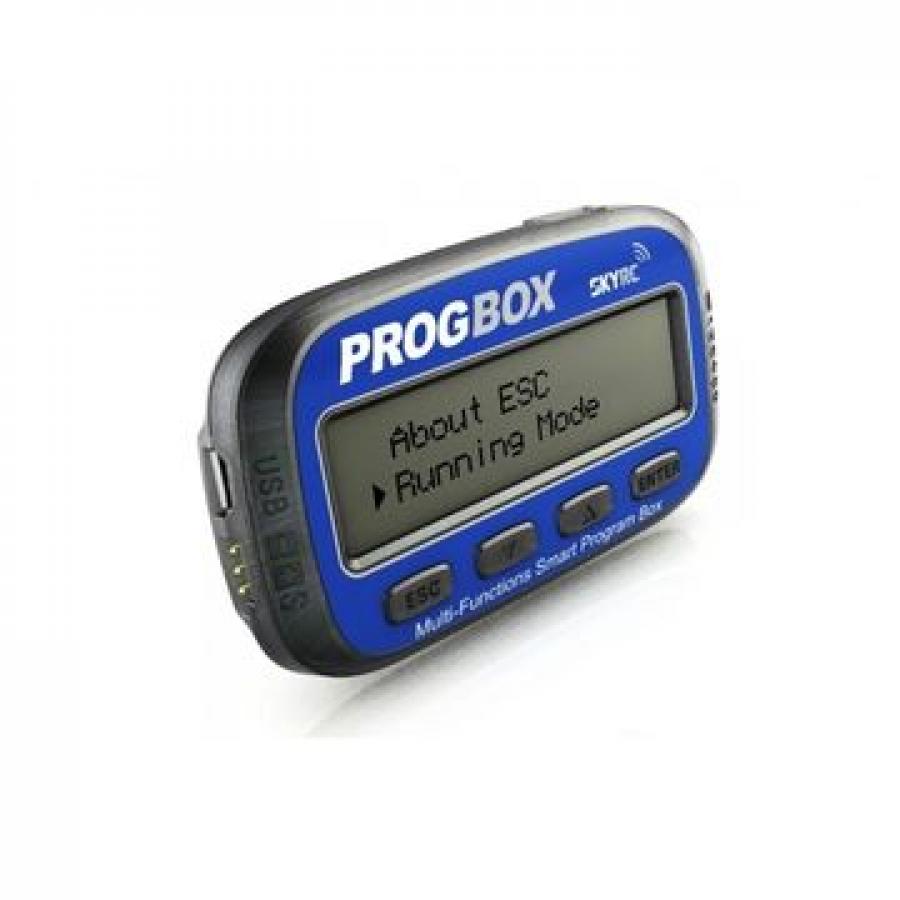

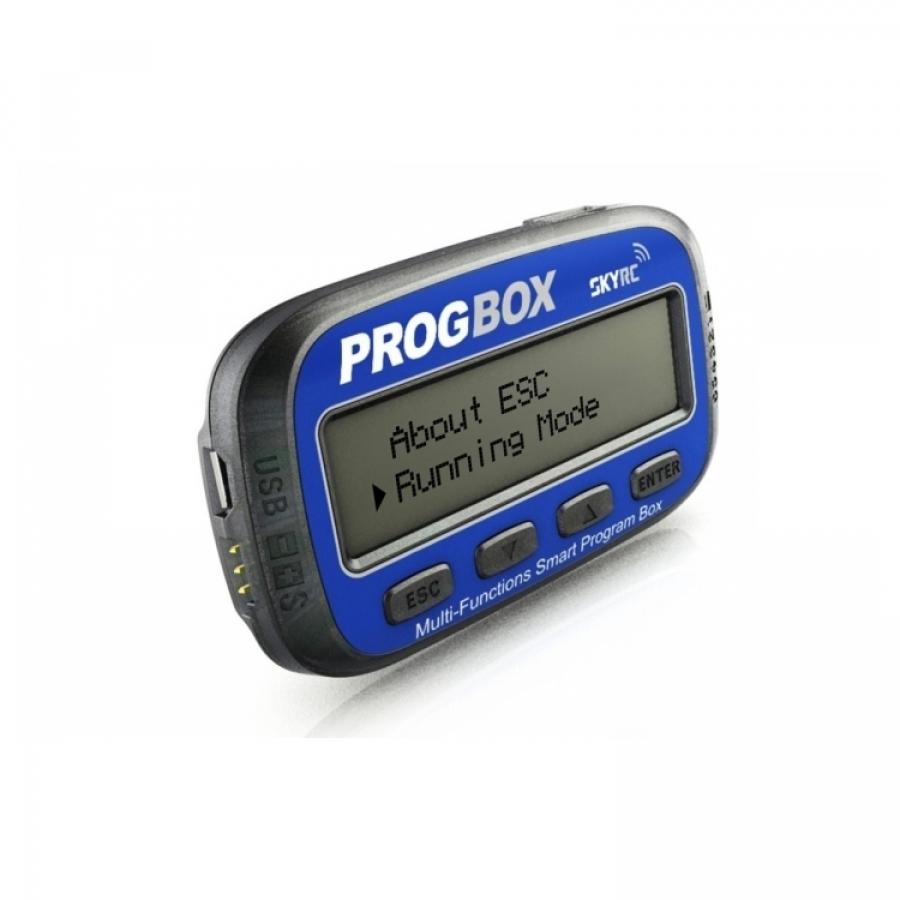

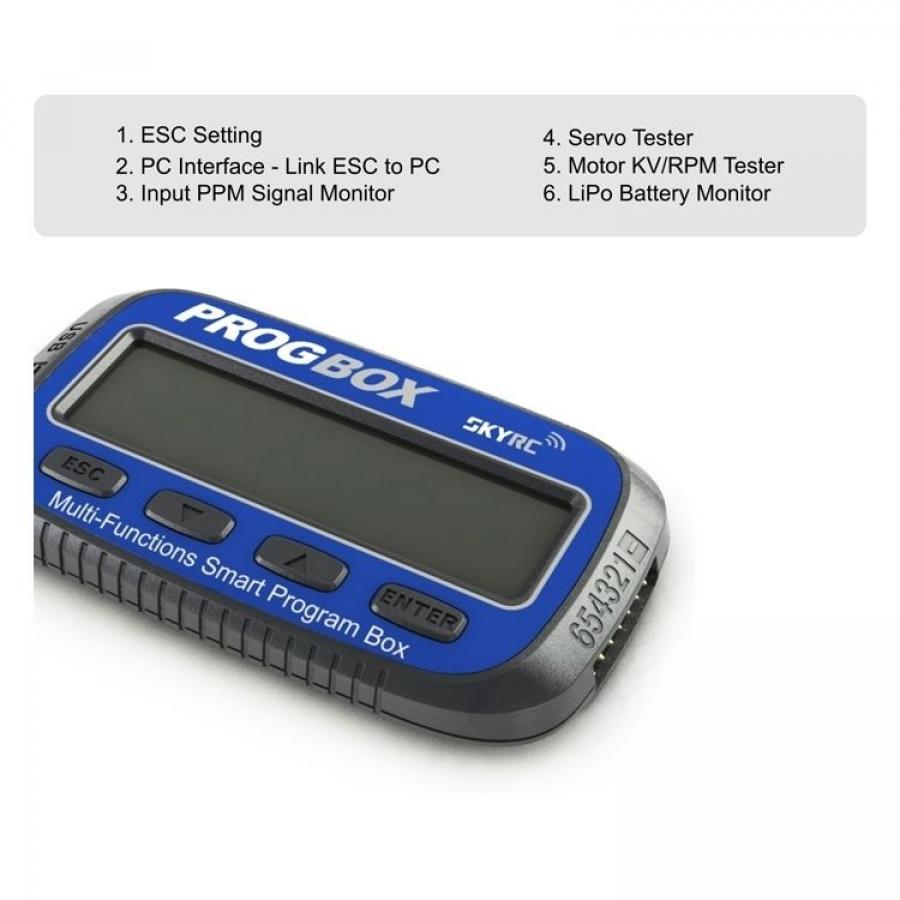

SkyRC Program Box is a very sophisticated electronic device that controlled by high performance microprocessor. With compact size and easy operation, SkyRC Program Box offers six-in-one functions:

ESC Setting
Servo Tester
PC Interface - Link ESC to PC
Motor KV/RPM Tester
Input PPM Signal Monitor
LiPo Battery Monitor

PROGBOX Six-in-One

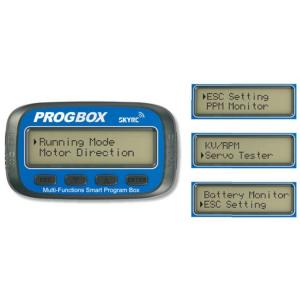

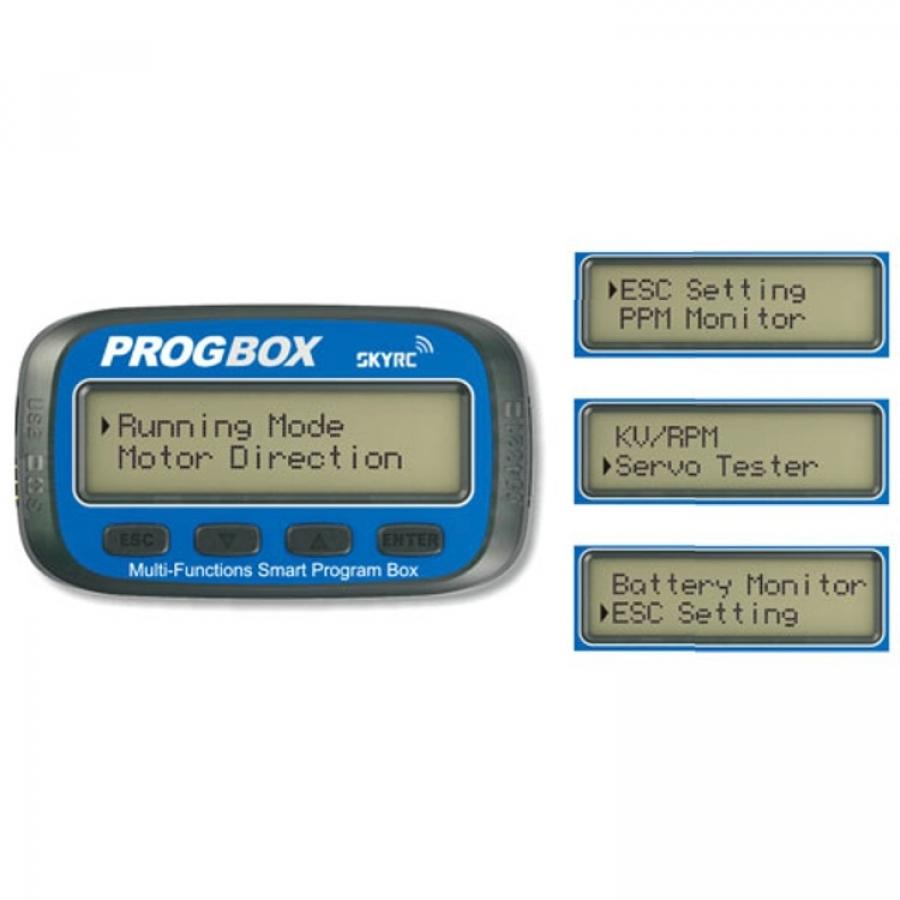

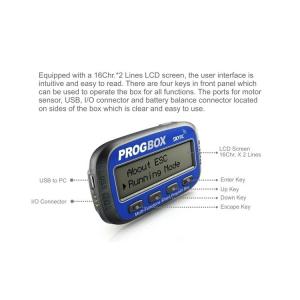

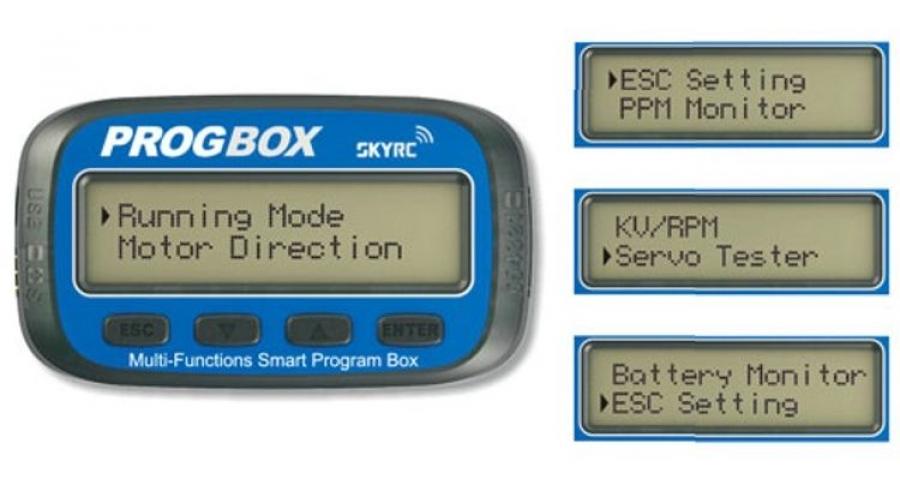

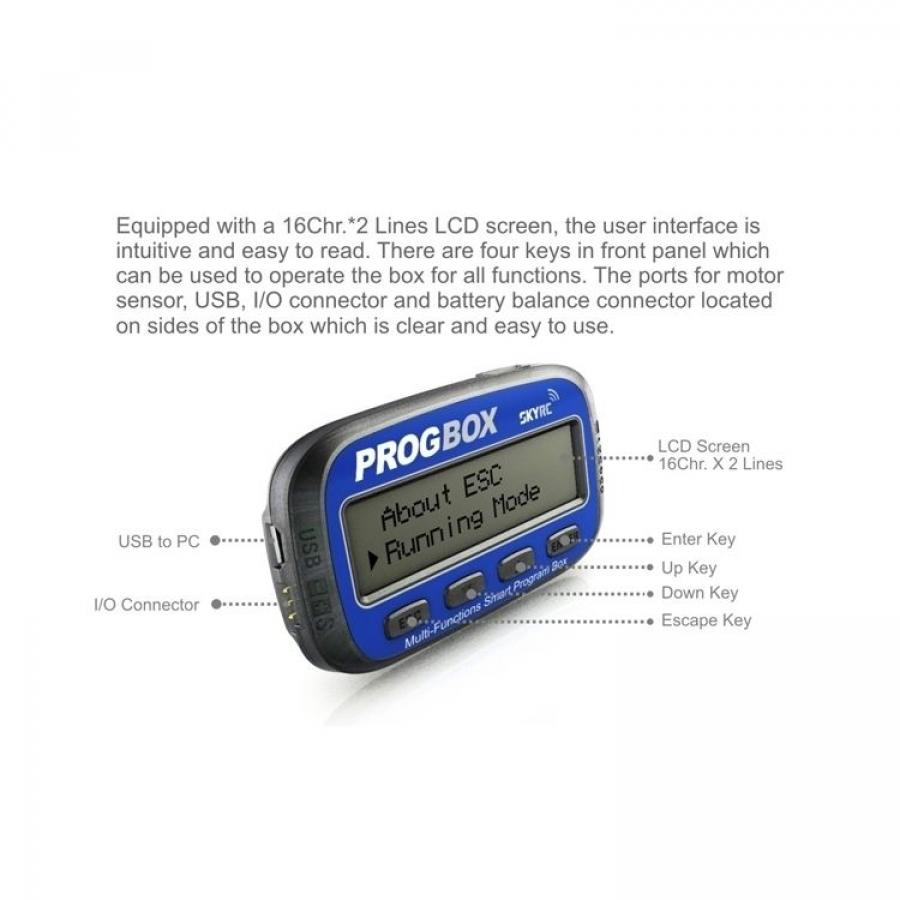

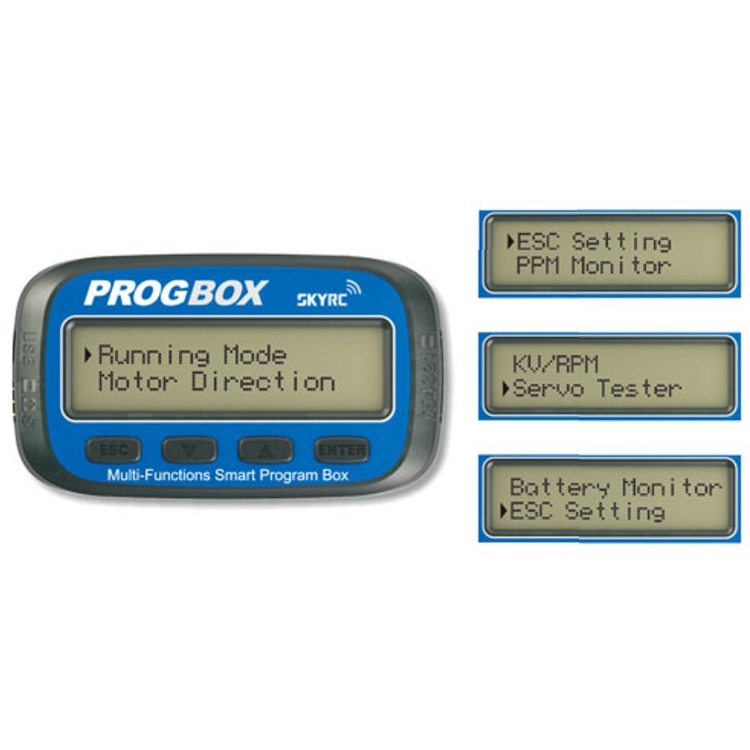

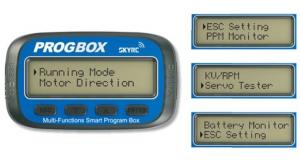

Equipped with a 16Chr.*2 Lines LCD screen, the user interface is intuitive and easy to read. There are four keys in front panel which can be used to operate the box for all functions. The ports for motor sensor, USB, I/O connector and battery balance connector located on sides of the box which is clear and easy to use.

height=

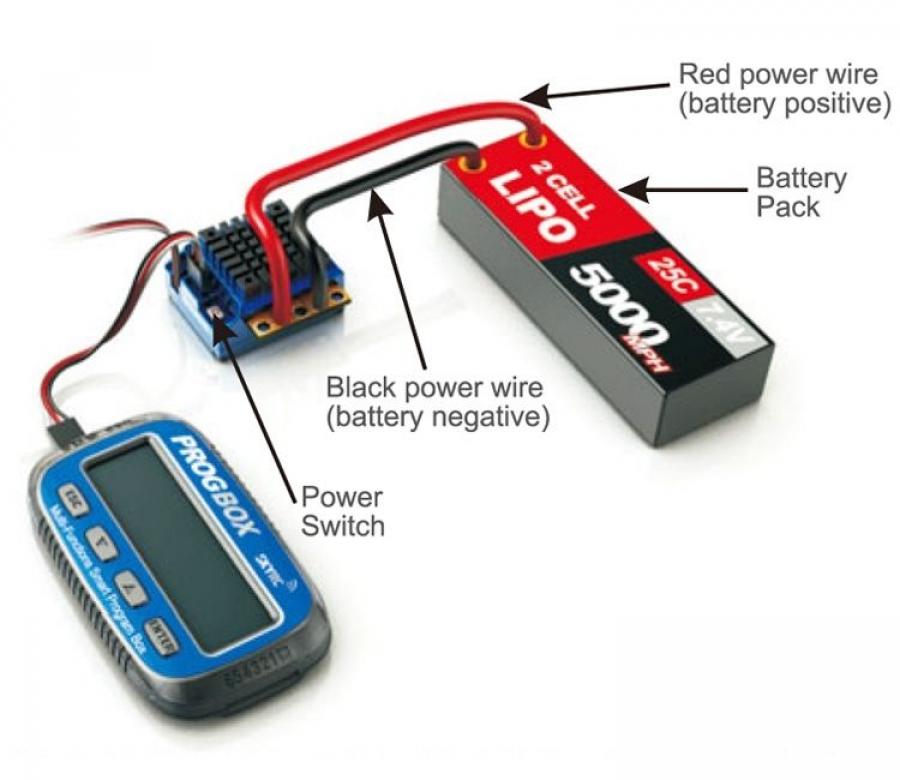

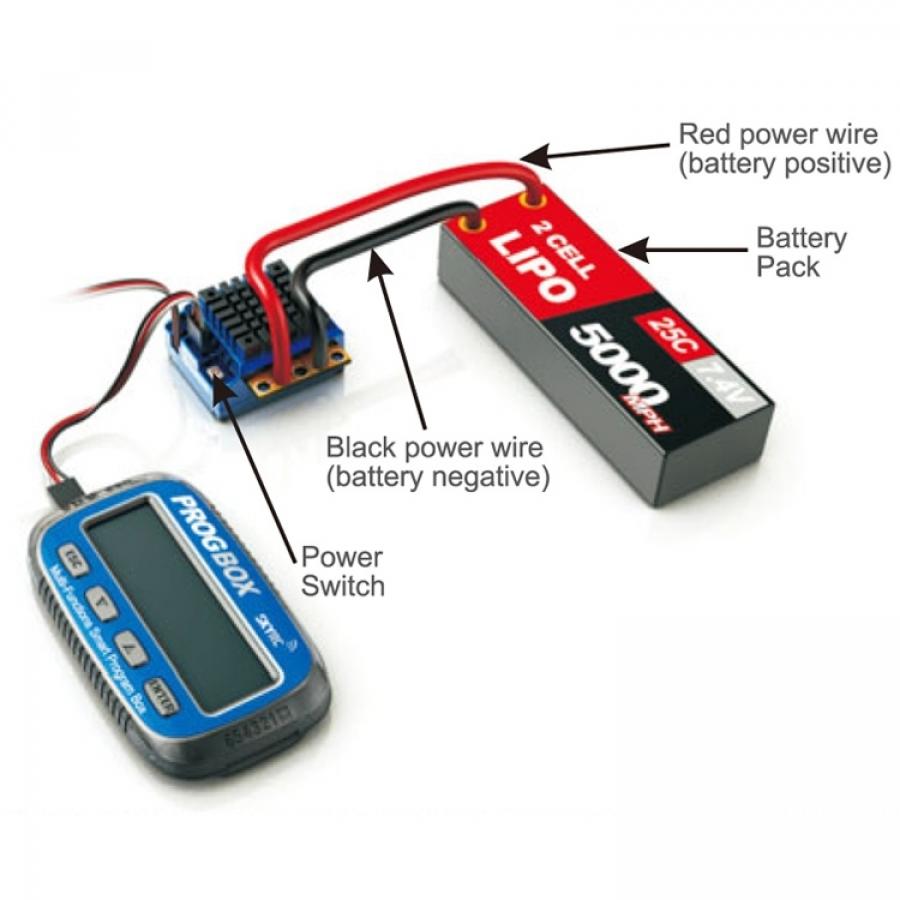

ESC settings
When you want to program the ESC precisely, we used to connect it to the PC. But sometimes, when you are running cars outside, it is not convenient to take PC, even laptop with you. At this time, you could use this device as Program Box to set all the parameters of ESC with maximum precision. Simply plug connect it to the ESC and set all parameters precisely in a short time as you wish.

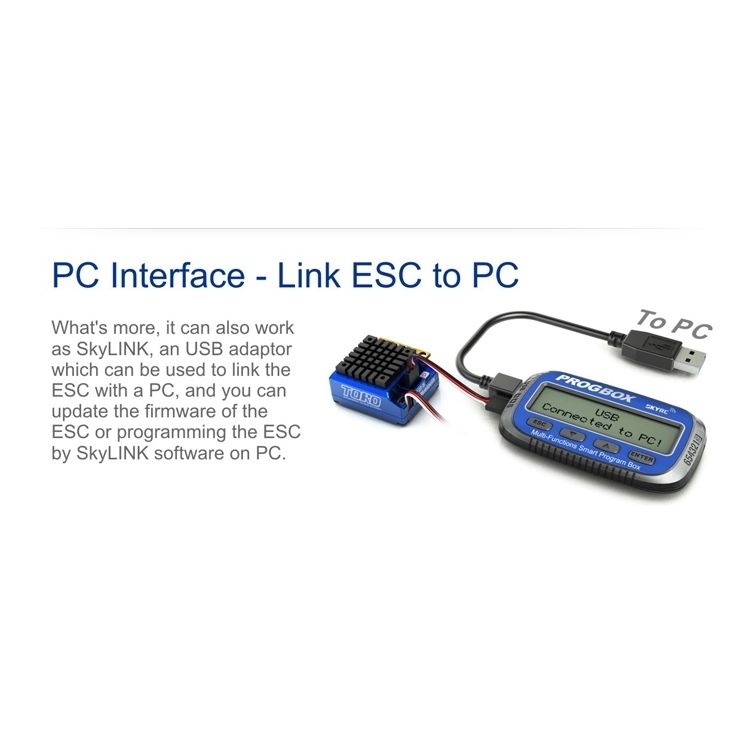

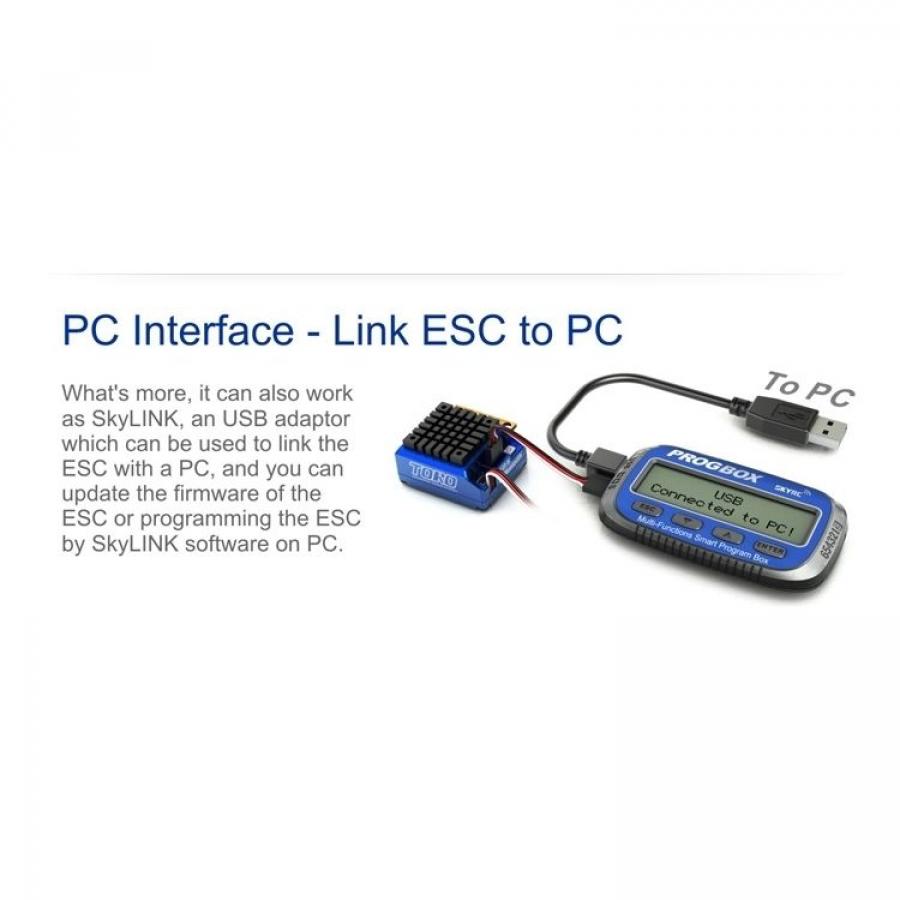

PC Interface - Link ESC to PC
What's more, it can also work as SkyLINK, an USB adaptor which can be used to link the ESC with a PC, and you can update the firmware of the ESC or programming the ESC by SkyLINK software on PC.

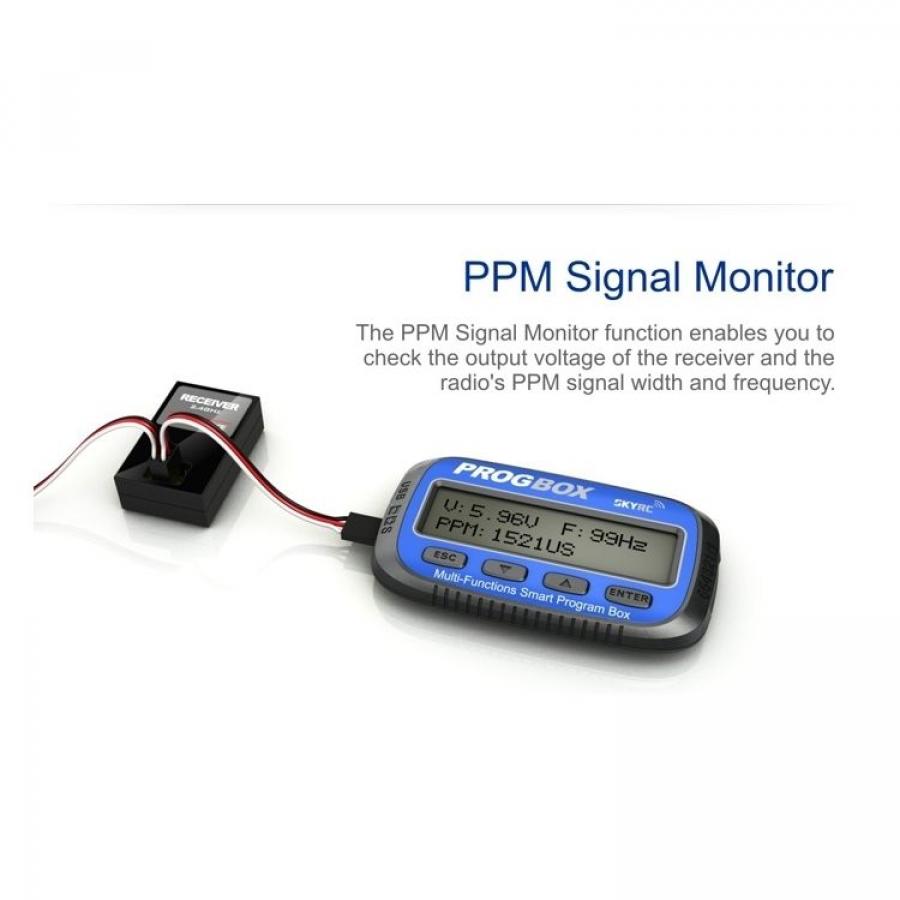

PPM Signal Monitor
The PPM Signal Monitor function enables you to check the output voltage of the receiver and the radio's PPM signal width and frequency.

height=

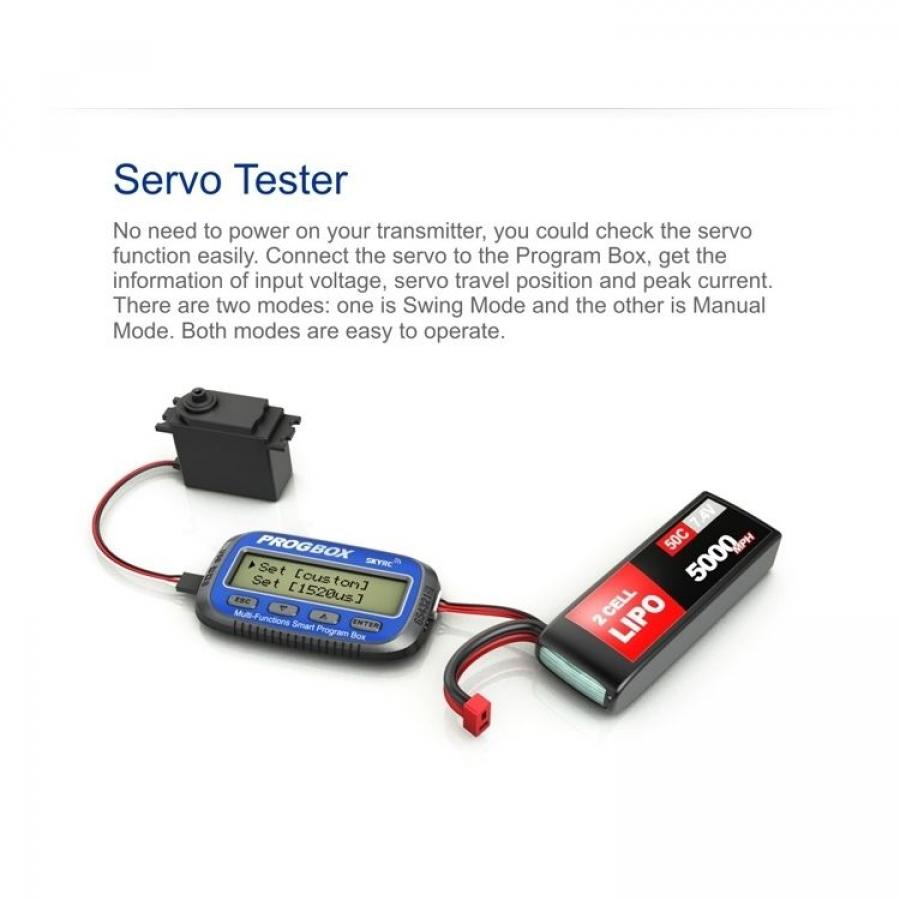

Servo Tester
No need to power on your transmitter, you could check the servo function easily. Connect the servo to the Program Box, get the information of input voltage, servo travel position and peak current. There are two modes: one is Swing Mode and the other is Manual Mode. Both modes are easy to operate.

height=

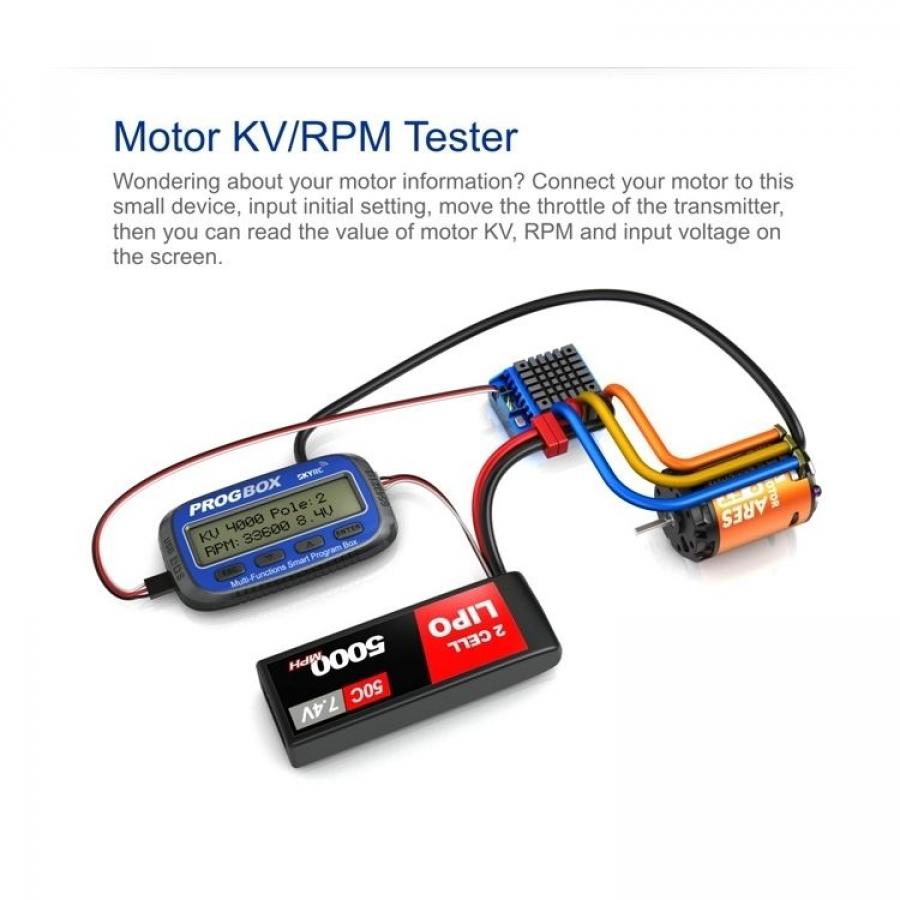

Motor KV & RPM Tester
Wondering about your motor information? Connect your motor to this small device, input initial setting, move the throttle of the transmitter, then you can read the value of motor KV, RPM and input voltage on the screen.

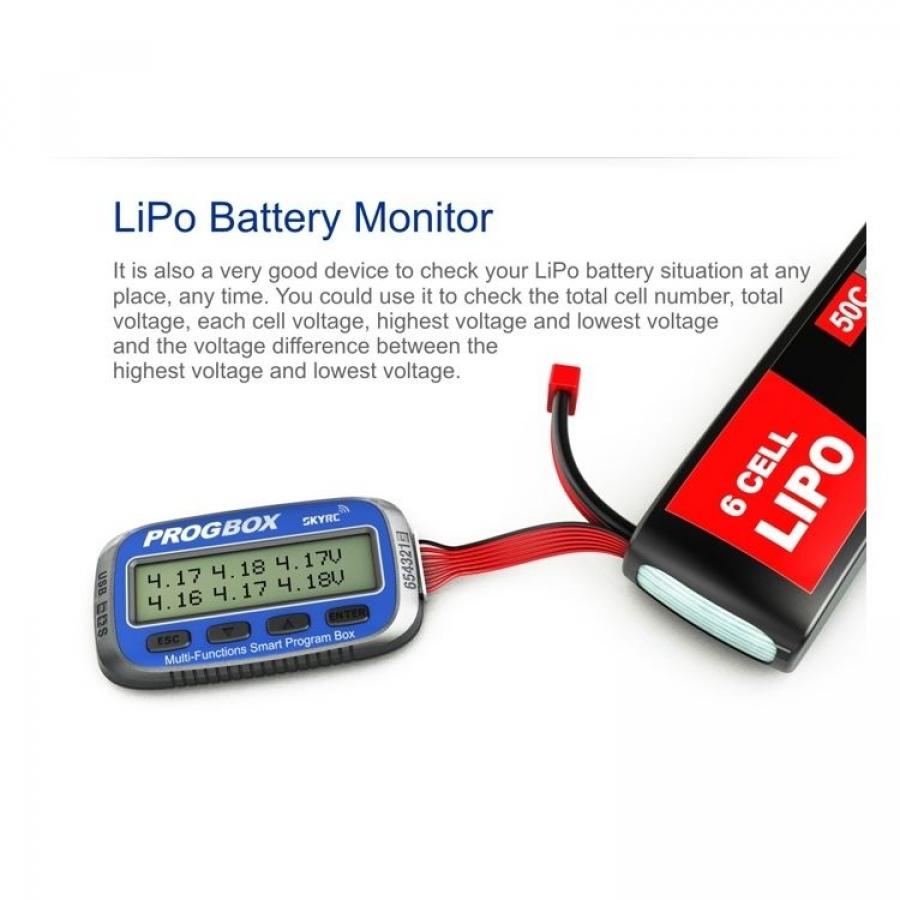

LiPo Battery Monitor
It is also a very good device to check your LiPo battery situation at any place, any time. You could use it to check the total cell number, total voltage, each cell voltage, highest voltage and lowest voltage and the voltage difference between the highest voltage and lowest voltage.

height=

Input Voltage (ESC Setting): 6-10VDC
Input Current (ESC Setting): 500mA
Idle Current (ESC Setting): Operating Temp: 0-40ºC
Storage Temp: -10 — 60 ºC
Operating Humidity: 10 - 90%RH
Storage Humidity: 20 - 75%RH
Protection Class: IP20
Size: 85 x 48.5 x 11.8 mm
Weight: 40 g
