Radiomaster MT12 Surface - ELRS versio *
Radiomaster MT12 Surface - ELRS versio *
Radiomaster MT12 Surface - ELRS versio *
Radiomaster MT12 Surface - ELRS versio *
Radiomaster MT12 Surface - ELRS versio *

Radiomaster MT12 Surface - ELRS versio *

Manufactor: Radiomaster
Price history
199,00 € 179,00 €
star star star star star
Shipping 1-24h
-
+
Add to cart Add to cart

wishlist Add to wish list


Product code: HP0157.0068
Number: 10975

Technical information Reviews

Technical information

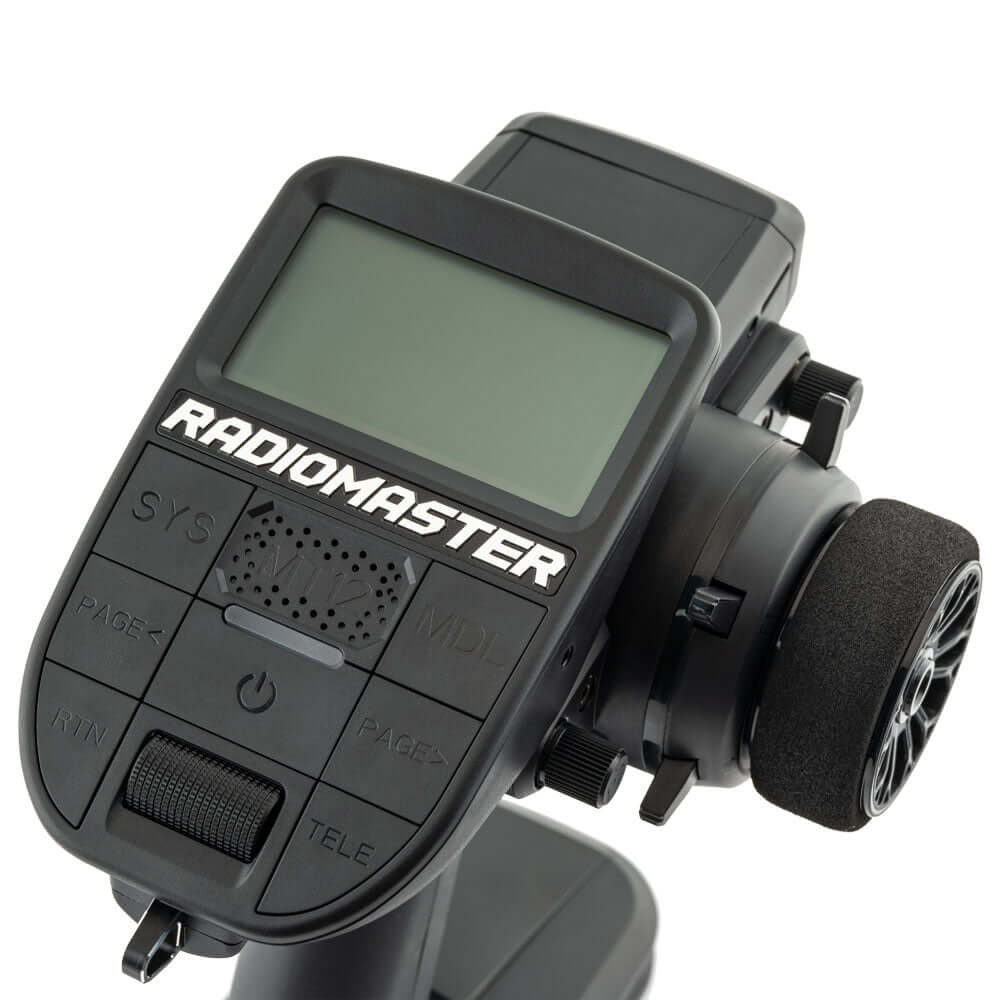

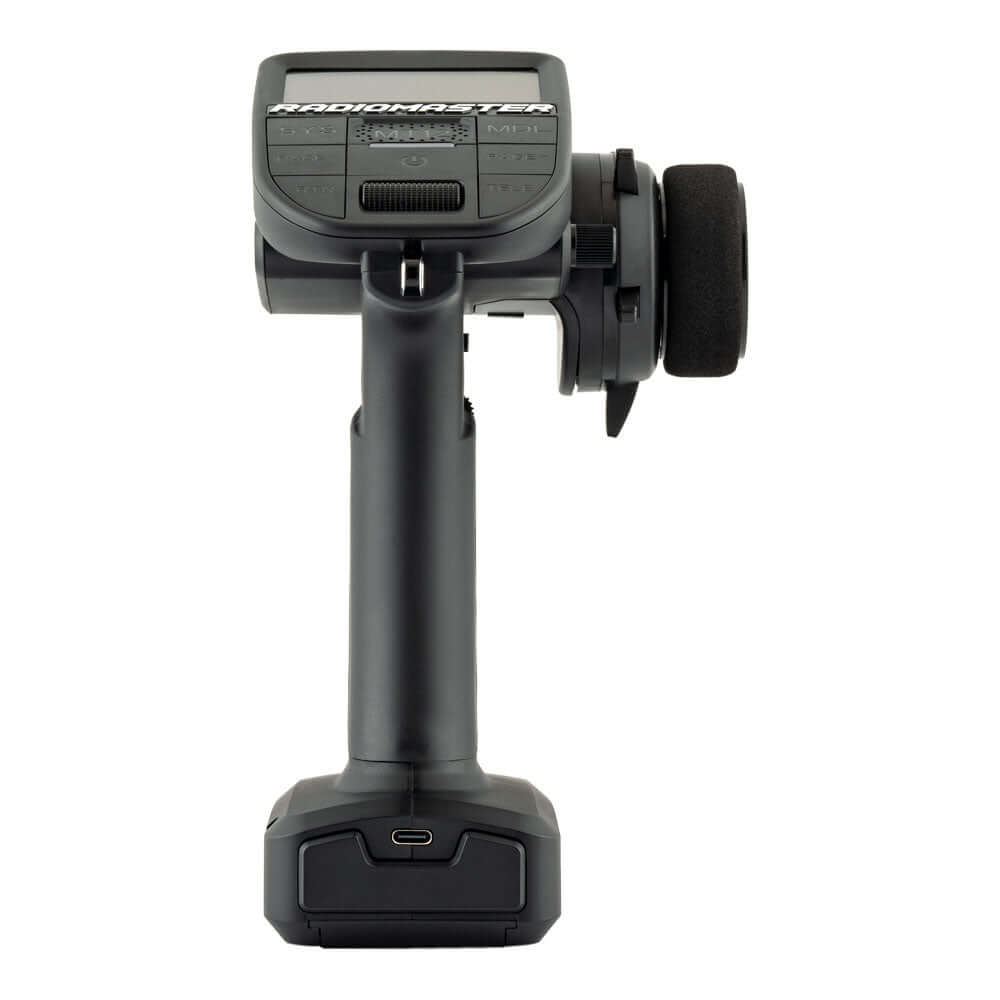

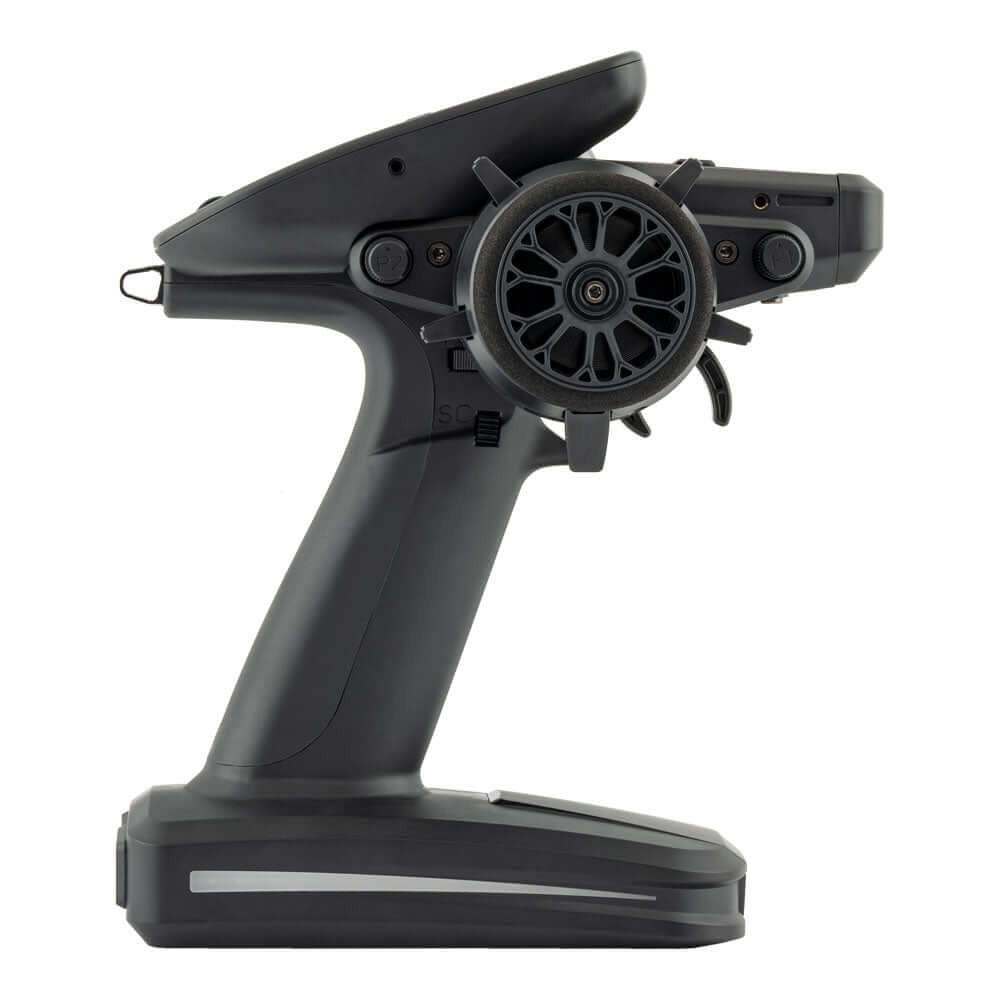

Surface Radio Controller RadioMaster MT12 4 in 1 + R85C

The RadioMaster MT12 is a pioneering open-source surface radio, and the first surface radio officially supported by EdgeTX, ExpressLRS, and the Multi-module project. Boasting 10 physical inputs and the capability to handle either 16 or 32 channels*, the MT12 is primed for a wide array of surface models, from cars and trucks to boats and beyond. Featuring extensive customizability and a versatile operating system, the MT12 stands out as a highly configurable surface radio, prepared to excel in virtually any scenario.

Features:

- Available with Built-in ExpressLRS Backpack or 4in1 MPM RF modules
- Featuring a powerful STM32F407VGT6 with 1MB Flash
- Preinstalled EdgeTX firmware
- QC3.0 fast charging supporting 2.0A MAX
- Compact design with excellent ergonomics
- Oversized battery compartment - 2 x 18650 cells or a 2s 7.4v 5000mah battery pack (Batteries not included)
- Standard Nano module compartment
- RadioMaster standardized button layout
- Rotatable antenna
- Customizable base switches or 4 way joystick included

Specifications:

- Physical dimensions: 177.8*118.4*207.8mm
- Weight: 480 grams
- Operating frequency: 2.400GHz-2.480GHz
- Internal RF Options: 4-in-1 multi-protocol / ELRS 2.4GHz
- Supported protocols: Module dependent
- Operational current: 160mA for 4in1 / 320mA for ELRS
- Operational voltage: DC 6.6-8.4V
- Operating system: EdgeTX
- Control channels: 16 as standard, ability for expansion 32 Channels (4in1 only)
- Display: 128*64 Monochrome LCD
- Battery: 2 x 18650 cells or a 2s 7.4v 5000mah battery pack (Batteries not included)
- Charging: Built in USB-C Charging
- Firmware Upgrade method: Via USB or SD card
- Wheel and Trigger sensor: Hall-effect
- Module bay: Nano size (RadioMaster Ranger Nano Module / RadioMaster RM 4in1 module / TBS Crossfire Nano module)

Specification R85C:

- Power supply: DC 4.5 - 8.4V
- Frequency range: 2400-2483.5Mhz
- Support protocol: D8/D16/SFHSS
- Output channel: 5CH PWM
- Antenna type: high-sensitivity 2.4G antenna
- Telemetry power: 100mw / 20dbm
- Weight: 5.7 grams
- Dimensions: 31.0*18.5*13.0 mm

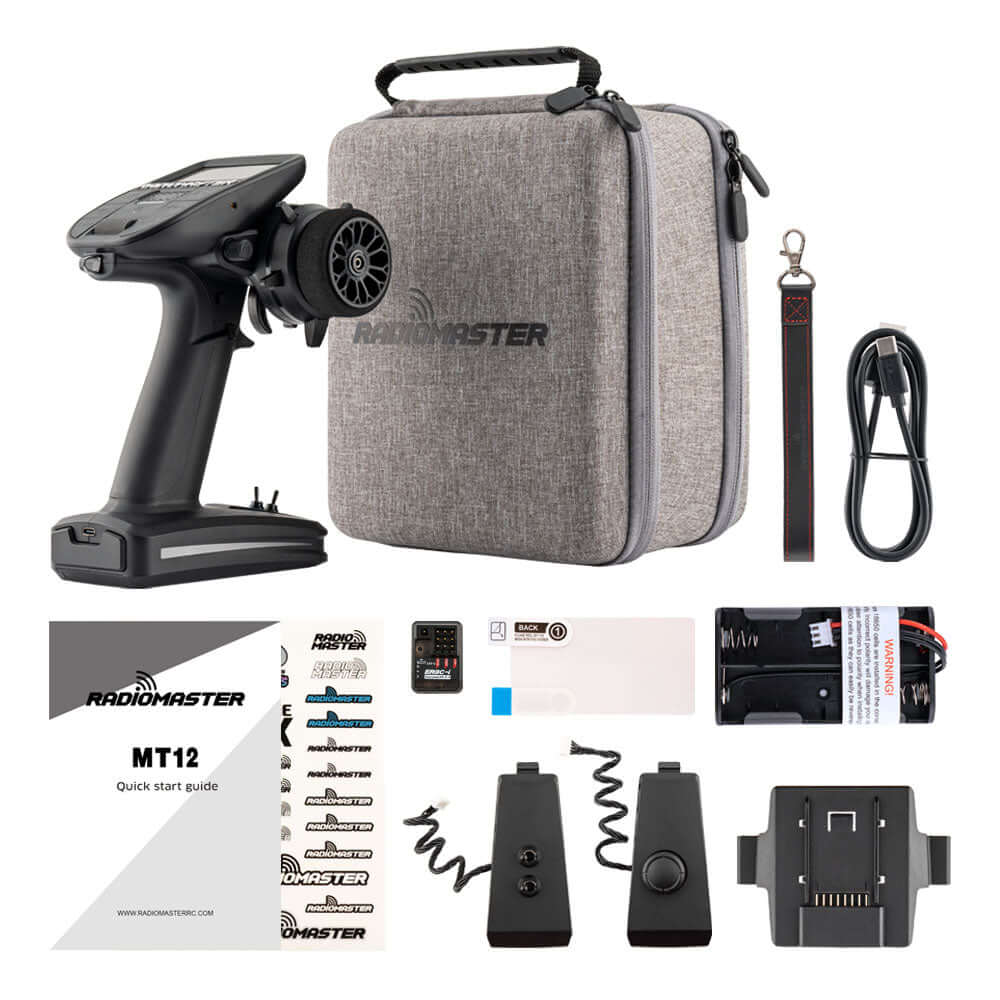

Package includes:

- 1 ? MT12 Surface Radio 4in1 Version
- 1 ? R85C Receiver

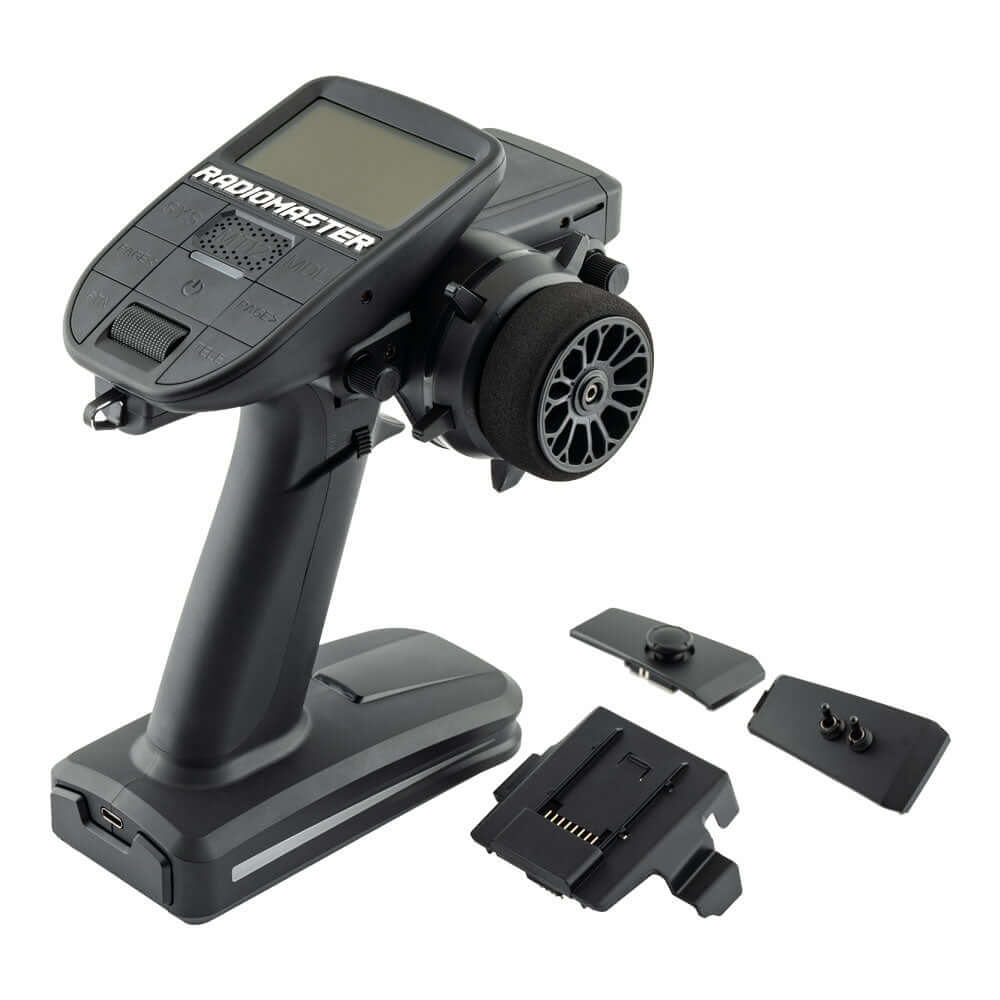

- 1 ? Dual Switch Expansion module
- 1 ? 4 Way Joystick Expansion module
- 1 ? Nano Adapter
- 1 ? USB-C Cable
- 1 ? Leather Lanyard
- 1 ? Custom RadioMaster signature carry case
- 1 ? 18650 Battery Tray
- 1 ? Screen Protector
- 1 ? Stickers
- 1 ? Manual
