Motor Justock 3650 G2.1 13.5T Sensored (Fixed Timing)

Motor Justock 3650 G2.1 13.5T Sensored (Fixed Timing)

Valmistaja: Hobbywing

Hiiliharjaton moottori

75,99 €

Tuote tilapäisesti loppu

Tuote on tilapäisesti loppu varastostamme ja maahantuojaltamme. Tuotteen saatavuudesta ei tällä hetkellä ole tietoa.

Voit jättää sähköpostiosoitteesi alle, niin saat sähköpostia kun tuote on taas saatavilla.

Lähetä

Lisää toivelistalle

Tuotekoodi:	30408010
Numero:	HW30408010
Käyttövoima:	Sähkökäyttöiset
Tuotetyyppi:	Harjaton moottori anturilla
Tuotemerkki:	Hobbywing

Tekniset tiedot Arvostelut

Tekniset tiedot ∨

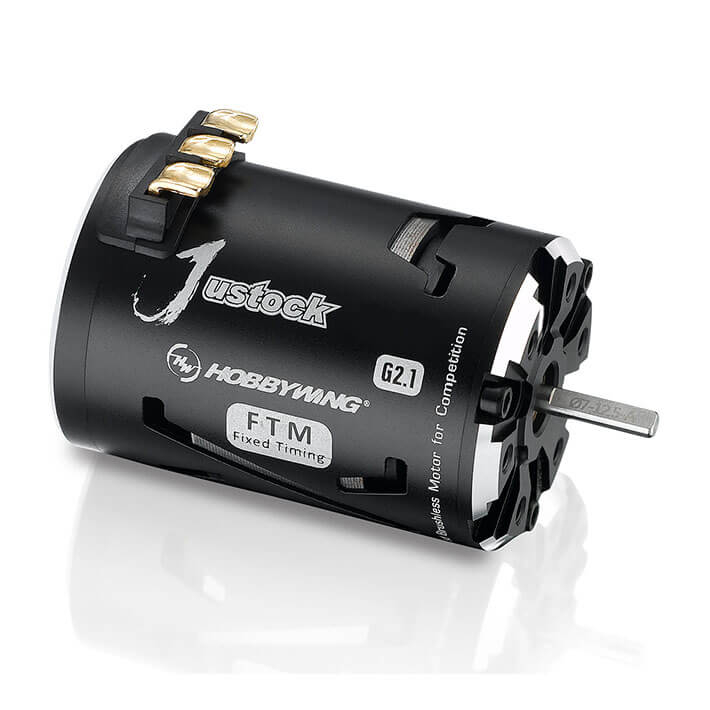

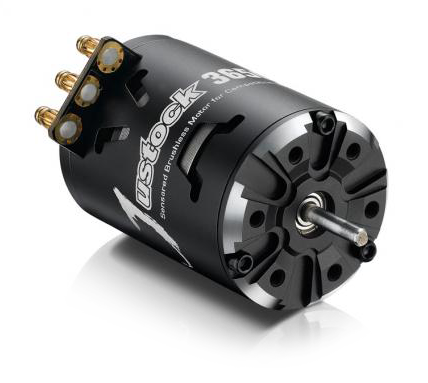

Hobbywing Justock 3650 G2.1 13.5T Sensored Brushless Motor

The use of a heat-resistant magnet attached aluminum case and double insulated windings, high precision bearings, and rotor with a strong structure guarantees outstanding performance and super durability.
The built-in Hall sensor non-adjustable end bell combined with a high precision and balanced rotor guarantees the user a smooth and linear power on demand.
The silicon O-ring seal fitted between the end bell and stator helps to conduct inner heat to the motor case and prevent dust from entering the HALL sensor.
The detachable structure design for daily cleaning and maintenance can effectively prolong the service life of this Justock motor and improve its operating efficiency.
This motor is perfectly matched with the XR10-Justock ESC for all zero timing spec racing and also compatible with other Hobbywing Electronic Speed Controllers including other brands.
This Justock motor is applicable to various 1/10th, 1/12th on-road & off-road vehicles. It can be an ideal choice for Stock or Sport class races but can also be a nice choice for newbies for practice.
The motor design is in compliance with IFMAR, and ROAR specifications.

Specifications:

KV (no load): 3200
LiPo: 2-3S
Resistance: 0.027Ω
No-Load Current: 4A
Max Output @ 7.4V: 215W
Current @ max output: 65A
Poles: 2
Stock Rotor: ø7-12.5
Weight: 175 g

Motor Dimensions:

Diameter: 35.9 mm
Length: 52.5 mm

Shaft:

Diameter: 3.17 mm
Length: 15 mm

Applications:
STOCK/SPORT class (choose the motor as per competition rules) of 1/10th, 1/12th On-road (i.e. competition touring car or drift, F1, Mini car, and etc.) and Off-road (i.e. buggy, 2WD SCT & truck) racing, Normal Training, and Rock Crawlers (21.5T & 25.5T only).
