TSS-10 -luokan kisamoottori kaudella 2020-2021

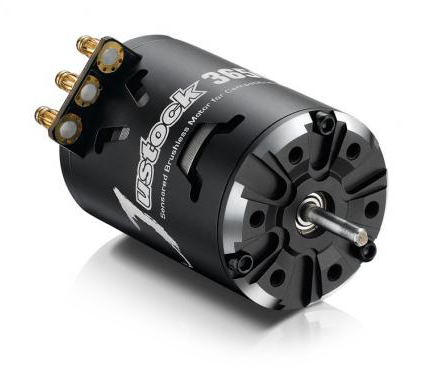

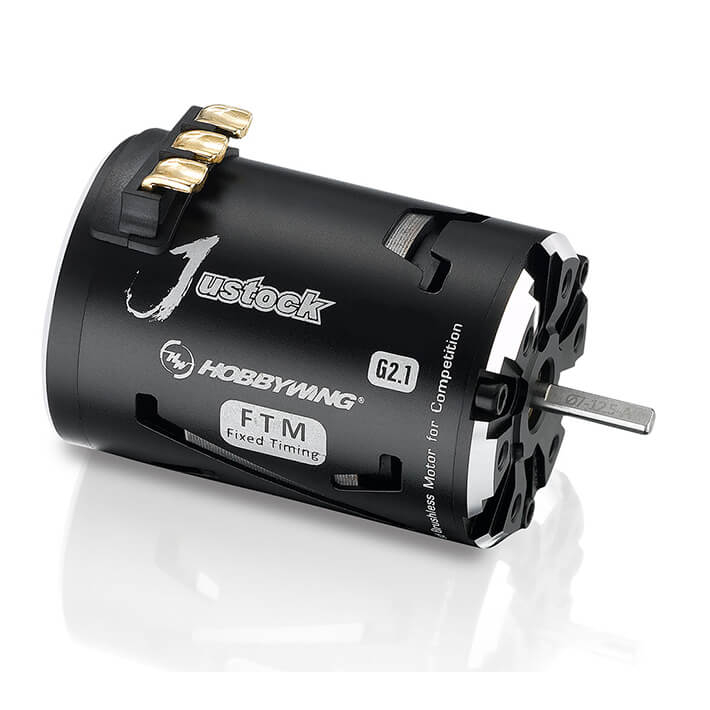

Hobbywing Justock 3650 G2.1 21.5T Sensored Brushless Motor

• The use of a heat-resistant magnet attached aluminum case and double insulated windings, high precision bearings, and rotor with a strong structure guarantees outstanding performance and super durability.
• The built-in Hall sensor non-adjustable end bell combined with a high precision and balanced rotor guarantees the user a smooth and linear power on demand.
• The silicon O-ring seal fitted between the end bell and stator helps to conduct inner heat to the motor case and prevent dust from entering the HALL sensor.
• The detachable structure design for daily cleaning and maintenance can effectively prolong the service life of this Justock motor and improve its operating efficiency.
• This motor is perfectly matched with the XR10-Justock ESC for all zero timing spec racing and also compatible with other Hobbywing Electronic Speed Controllers including other brands.
• This Justock motor is applicable to various 1/10th, 1/12th on-road & off-road vehicles. It can be an ideal choice for Stock or Sport class races but can also be a nice choice for newbies for practice.
• The motor design is in compliance with IFMAR, and ROAR specifications.

• KV (no load): 2050
• LiPo: 2-3S
• Resistance: 0.07Ω
• No-Load Current: 3A
• Max Output @ 7.4V: 115W
• Current @ max output: 35A
• Poles: 2
• Stock Rotor: ø7-12.5
• Weight: 175 g

• Diameter: 35.9 mm
• Length: 52.5 mm

• Diameter: 3.17 mm
• Length: 15 mm
