SB-3262SG Servo 28Kg 0,08s HV Alu Brushless Steel Gear Low Profile

Valmistaja: Savox
124,73 €
star star star star star
Tuotteen lähetysaika 4-6 arkipäivää
-
+
Lisää ostoskoriin Lisää ostoskoriin

wishlist Lisää toivelistalle


Tuotekoodi: SB-3262SG
Numero: SAV-SB3262SG

Tekniset tiedot Arvostelut

Tekniset tiedot

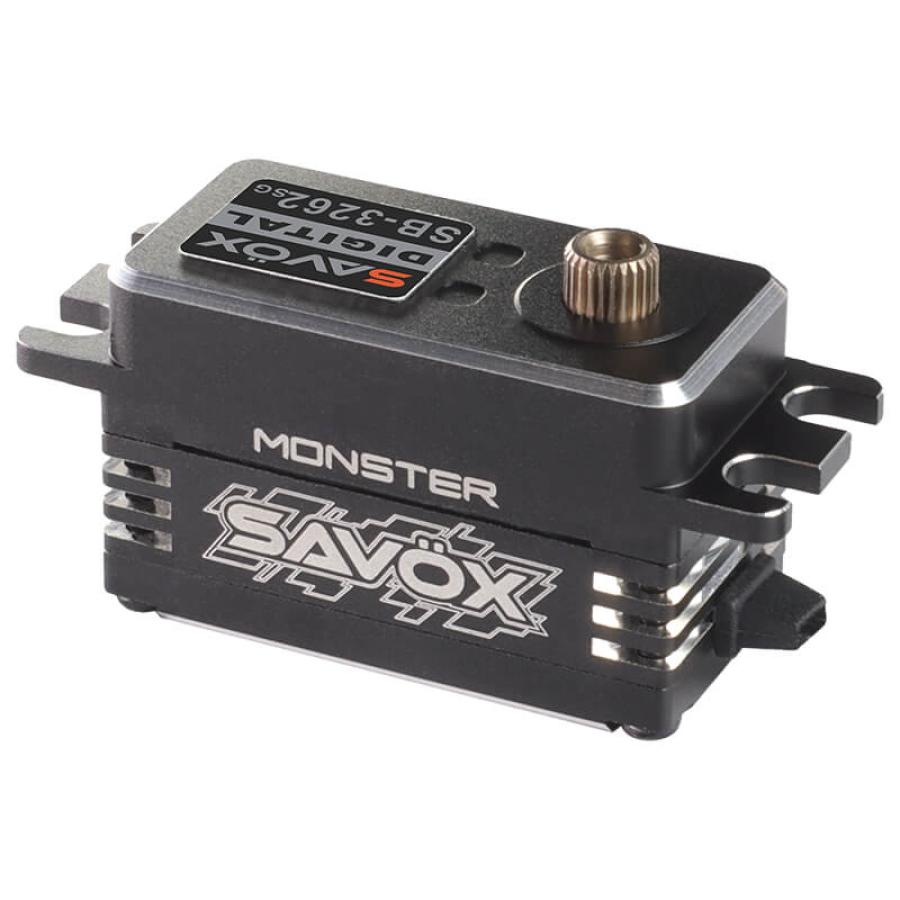

SAVÖX SAV-SB3262SG - SB-3262SG Servo 28Kg 0.08s HV Alu Brushless Steelgears Low Profile


Monster Line
The pinnacle of Team Savox engineering - the Monster Line features our most advanced servos, built for drivers, pilots, and racers who demand the absolute best in torque, speed, and durability. With high-voltage brushless motors, steel gears, and optimized internals, Monster Line servos dominate in everything from 1/8 racing to high-load surface builds and heavy-duty off-road. It’s performance without compromise.



SB-3262SG Lightweight Brushless
Introducing the SB-3262SG — a lightweight servo with a next-gen brushless motor that delivers more torque with less weight. Ideal for weight-conscious racers who need fast response and high output.

Specs:

  • Line: MONSTER LINE
  • Application: CAR / BOAT / AIRPLANE
  • Servo Size: Low Profile
  • Operating Voltage: 6.0V-8.4V
  • Speed @6.0V: 0.1s/60°
  • Torque @6.0V: 22kg/cm
  • Speed @7.4V: 0.08s/60°
  • Torque @7.4V: 28kg/cm
  • Speed @8.4V: 0.065s/60°
  • Torque @8.4V: 35kg/cm
  • Amplifier Type: Digital Controller
  • Motor Type: Patented Lightweight Brushless
  • Case Type: Aluminium
  • Protection: Water Resistant
  • Dimensions: L40.8xW20.2xH25.4mm
  • Weight: 53g
  • Gear Type: Specialized Steel
  • Compatibility: Sanwa SUR & SSR, Futaba UR & SR
  • PCB Board: 32-bit
  • Horn Gear Spline: 25T (?6)
  • Rotating Direction: Clockwise (when 1000?2000?sec)
  • Max Travel: ~130° (when 900?2100?sec)
  • Operating Travel: 90° (when 1000?2000?sec)
  • Neutral Position: 1500?sec
  • Bearing: 2x Ball Bearings
  • Potentiometer: VR
  • Cable Diameter: 22AWG
  • Cable Length: 300±5mm
  • Connector: JR
  • Stall Current @6.0V: 4500mA
  • Operating Current @6.0V: 200mA
  • Stall Current @7.4V: 5600mA
  • Operating Current @7.4V: 220mA
  • Stall Current @8.4V: 6300mA
  • Operating Current @8.4V: 250mA
  • Idle Current: 5mA
  • Dead Band Width: 3-5?sec
  • Frequency Range: 50-360Hz
  • Control System: Pulse Width Modification
  • Operating Temperature: -10°C to 50°C
