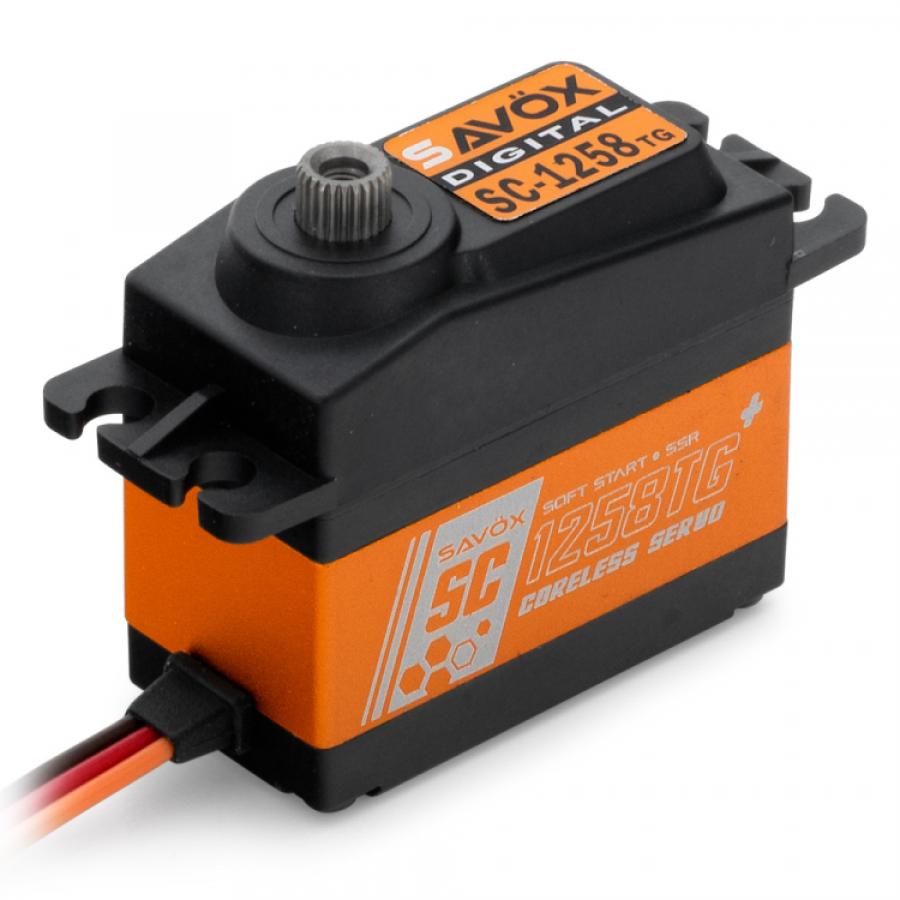

SAVÖX SC-1258TGPLUS - Titanium-Geared High-Speed Digital Standard-Sized Servo
Newly updated Savöx SC-1258TG Plus high speed standard size servo which combines leading edge technology with super high 12-bit (4096) resolution for smooth operation.
Features:
- Softstart Function
- Sanwa SSR compatible
- Coreless motor
- Extremely strong titanium gears ensure long-life, durability and light weight
- Ideal for CCPM on 600 and 700 class heli & steering servo on 1/10 scale buggies
- Aluminum middle case allows for cooler operating temperatures
Specifications:
- Torque @ 6V: 12kg/cm
- Speed @ 6V: 0.08 sec/60 deg
- Dimensions L x W x H: 40.3 x 20.2 x 37.2mm
- Weight: 64g
Technical Details:
- Operating Temperature: -10° to 50°C
- Running Current (no load): 100mA @4.8V, 120mA @6.0V
- Stall Current (at locked): 4000mA @4.8V, 5000mA @6.0V
- Idle Current: 5mA @4.8V, 5mA @6.0V
- Wire Length: 250 +/- 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 2BB
- Operating Travel: 100° (1000 ? 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 ? 2200 µ second
- Maximum Travel: Appx 130° (900 ? 2100 µ second)
- Refresh Rate: 333 Hz
- Motor Type: Coreless
