Servo SV-0320 6,0Kg 0,13s HV

Savox
18,60 €
Viite: SAV-SV0320EAN-koodi: 4710006990705
Myymäläpaikka: A254
0 Ei saatavilla juuri nyt, Ei saatavilla
Katso kaikki toimitustavat

Tilaa saapumisilmoitus sähköpostiisi, niin saat heti tiedon kun tuotetta on jälleen saatavilla.

Kysy lisää tuotteesta
Kuvaus

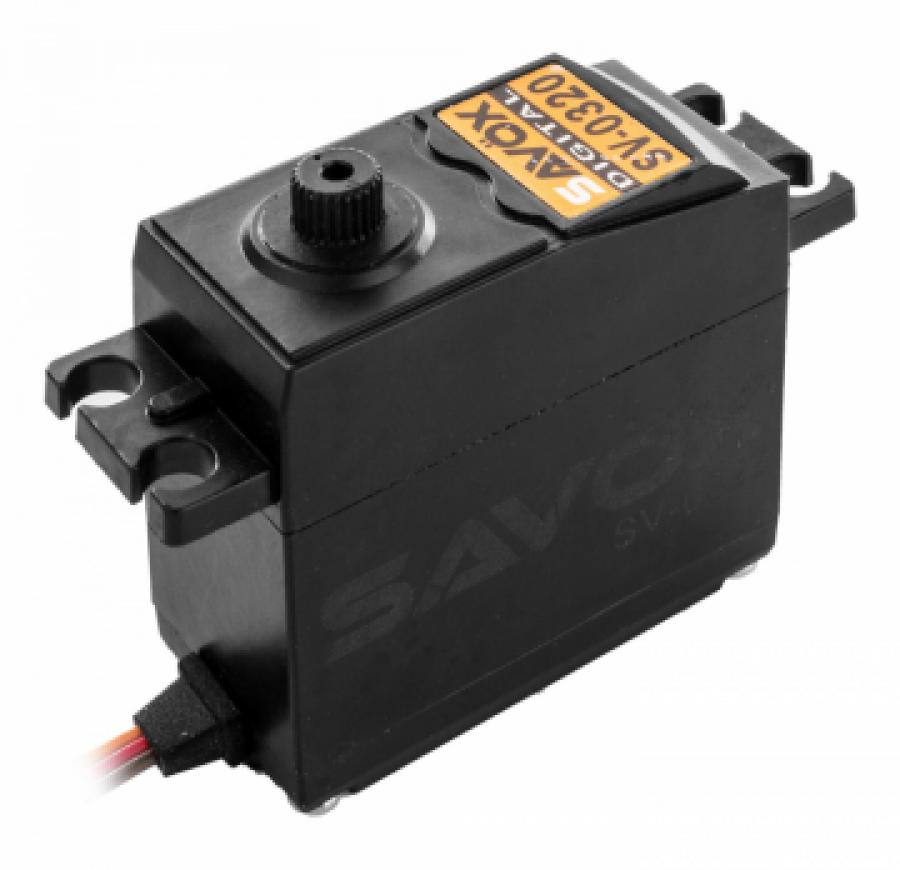

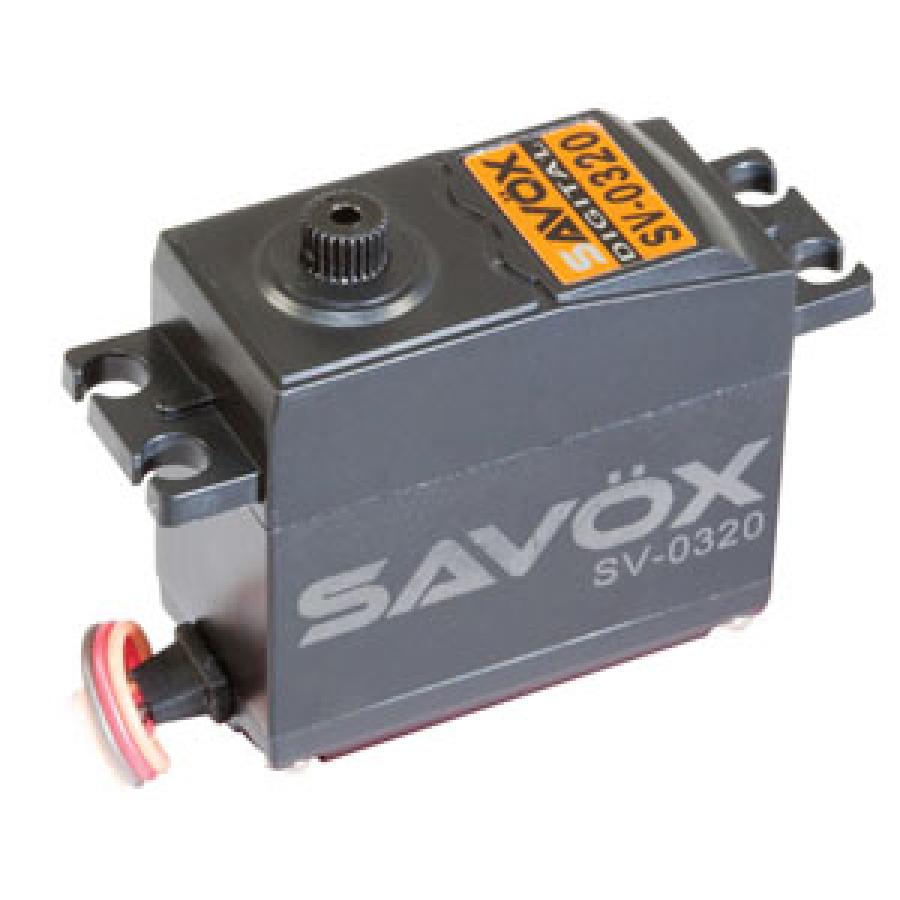

SAVÖX SV-0320 - High Voltage Standard-Sized Servo


The SV-0320 is a budget-friendly, standard digital servo which is capable of running on higher voltage than most standard servos.

Features:
  • Capable of HV operation
  • Industrial plastic gear allows for a smooth, quiet operation yet remains durable

Specifications:
  • Torque @ 6V: 4.5kg/cm
  • Torque @ 7.4V: 6kg/cm
  • Speed @ 6V: 0.16 sec/60 deg
  • Speed @ 7.4V: 0.13 sec/60 deg

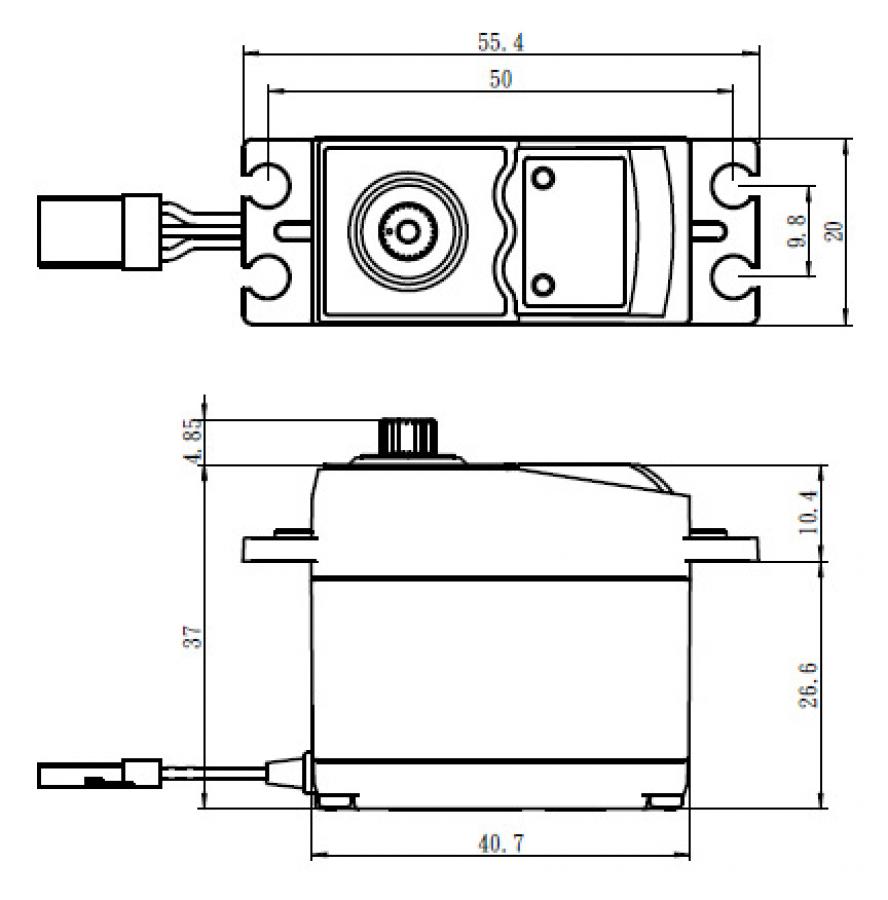

  • Dimensions L x W x H: 40.7 x 20.0 x 37.0mm
  • Weight: 46g

Technical Details:
  • Operating Temperature: -10° to 50°C
  • Running Current (no load): 180mA @6.0V, 240mA @7.4V
  • Stall Current (at locked): 1300mA @6.0 V, 1600mA @7.4V
  • Idle Current: 5mA @6.0V, 5mA @7.4V
  • Wire Length: 300 ± 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 1BB
  • Operating Travel: 120° (1000 → 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 → 2200 µ second
  • Maximum Travel: Appx 164° (800 → 2200 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed
