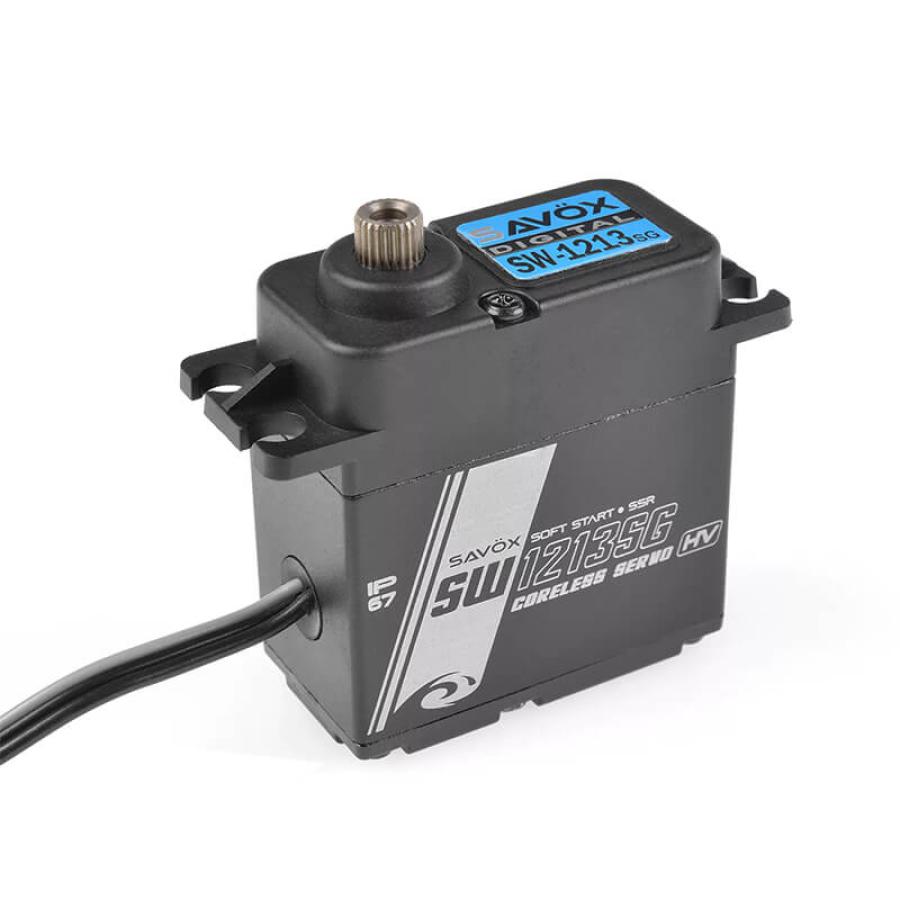

SW-1213SG Servo 38Kg 0,16s HV Alu Brushless Steel Gear WP

Valmistaja: Savox
88,06 €
star star star star star
Tuotteen lähetysaika 6-12 arkipäivää
-
+
Lisää ostoskoriin Lisää ostoskoriin

wishlist Lisää toivelistalle


Tuotekoodi: SW-1213SG
Numero: SAV-SW1213SG

Tekniset tiedot Arvostelut

Tekniset tiedot

SAVÖX SAV-SW1213SG - SW-1213SG Servo 38Kg 0.16s HV Alu Brushless Steel Gears WP

Blue Line
Built for adventure, the Blue Line is IP67 waterproof-rated and ready for anything. These servos are designed for boats, trail crawlers, and RC builds that encounter mud, water, and extreme terrain. With rugged construction, durable gearing, and high-voltage compatibility, Blue Line servos keep going even when the trail gets rough. When you can’t predict the conditions - this is the servo to trust.

Specs:

  • Line: BLUE LINE
  • Application: CAR / BOAT
  • Servo Size: Standard
  • Operating Voltage: 6.0V-8.4V
  • Speed @6.0V: 0.19s/60°
  • Torque @6.0V: 32kg/cm
  • Speed @7.4V: 0.16s/60°
  • Torque @7.4V: 38kg/cm
  • Speed @8.4V: 0.14s/60°
  • Torque @8.4V: 42kg/cm
  • Amplifier Type: Digital Controller
  • Motor Type: Coreless
  • Case Type: Hybrid (Aluminium/Composite)
  • Protection: Waterproof (IP67)
  • Dimensions: L40.6xW20.7xH46.2mm
  • Weight: 83g
  • Gear Type: Specialized Steel
  • Compatibility: Sanwa SSR
  • PCB Board: 12-bit
  • Horn Gear Spline: 25T (?6)
  • Rotating Direction: Counter clockwise (when 1000?2000?sec)
  • Max Travel: ~130° (when 800?2200?sec)
  • Operating Travel: 100° (when 1000?2000?sec)
  • Neutral Position: 1500?sec
  • Bearing: 2x Ball Bearings
  • Potentiometer: VR
  • Cable Diameter: 22AWG
  • Cable Length: 450±5mm
  • Connector: JR
  • Stall Current @6.0V: 4200mA
  • Operating Current @6.0V: 130mA
  • Stall Current @7.4V: 5200mA
  • Operating Current @7.4V: 150mA
  • Stall Current @8.4V: 6000mA
  • Operating Current @8.4V: 180mA
  • Idle Current: 5mA
  • Dead Band Width: 3-5?sec
  • Frequency Range: 50-360Hz
  • Control System: Pulse Width Modification
  • Operating Temperature: -10°C to 50°C
