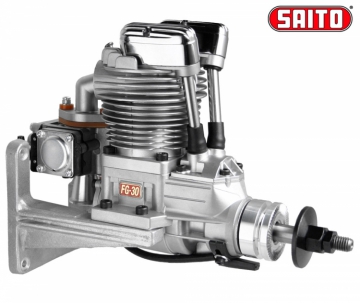

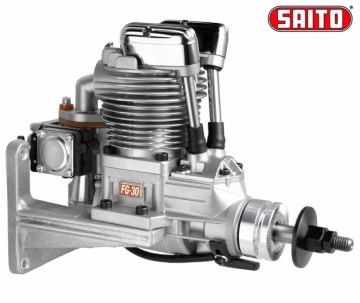

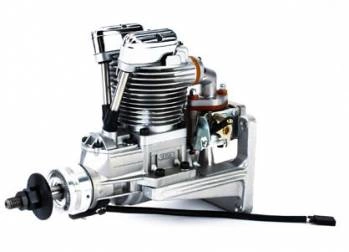

FG-30B 30cc 4-stroke Gasoline Engine

Manufactor: Saito
814,80 €
star star star star star
Shipping 4-6 business days
-
+
Add to cart Add to cart

wishlist Add to wish list


Product code: SAFG-30B
Number: SAFG-30B
Stock place: 0.0
Brand: Saito

Technical information Reviews

Technical information
SAITO FG-30B is the new model modified from FG-30 with new ignition system, crank case, and drive flange. The dimensional drawing is just the same as FG-30.

  • Displacement: 29.11 cc
  • Applications: 4-stroke glow 1.20-1.80 class
  • Bore: 36.0 mm
  • Stroke: 28.0 mm
  • Motor weight: 1055 g
  • Muffler weight: 85 g
  • Ignition system weight: 158 g
  • Engine mount weight: 190 g
  • Practical RPM: 1700-9000
  • (Max RPM on Ground (stationary): 9000-10.000)
  • Propeller: APC 16x8" - 17x8"
  • Static thrust: with APC 18x8" = 5 kg, APC 16x10" = 5.3 kg, APC 17x6 = 5.8 kg & APC 17x8" = 5.3 kg
  • Fuel: Regular gasoline & oil = 20:1-30:1 (volume ratio)
  • Fuel consumption: aprox 25 cc/min (@ full throttle 8500 rpm)
  • Battery for ignition system: 4.8-6V with more than 1Ah is recommended

Recommended gasoline fuel oil:

  • Klotz Original TechniPlate®
  • Klotz R/C Modelube®
