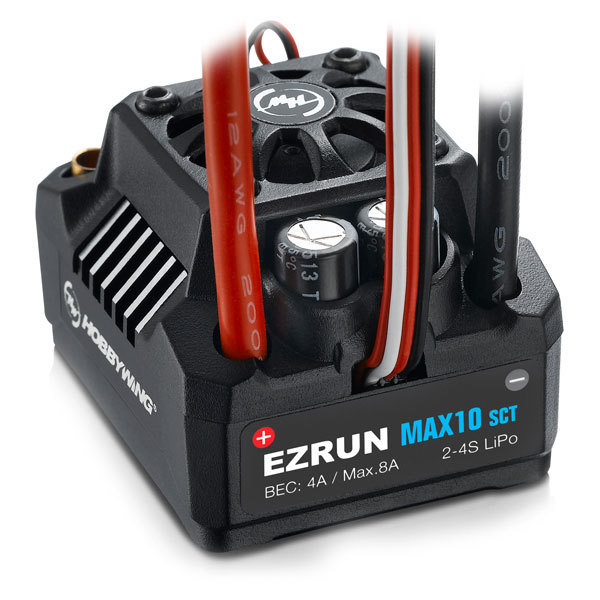

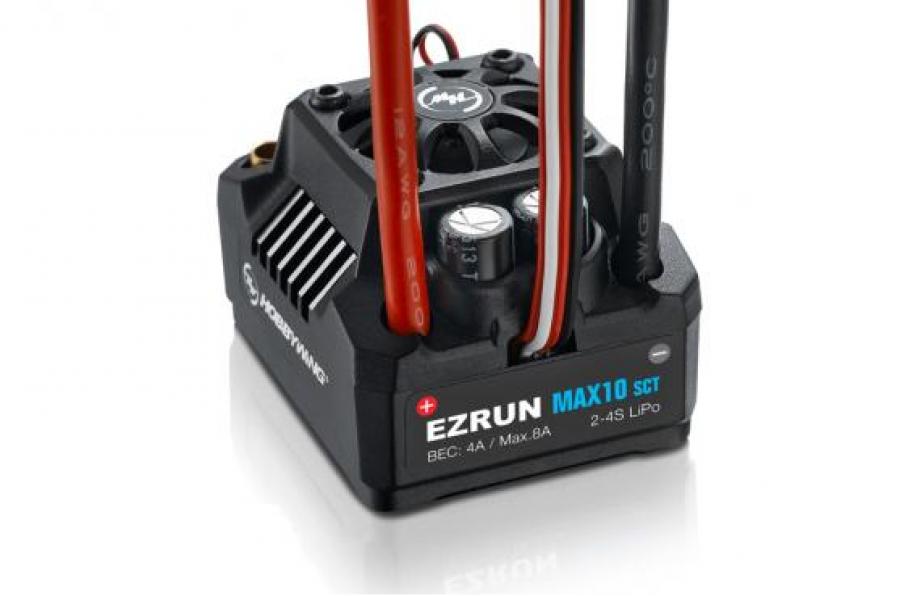

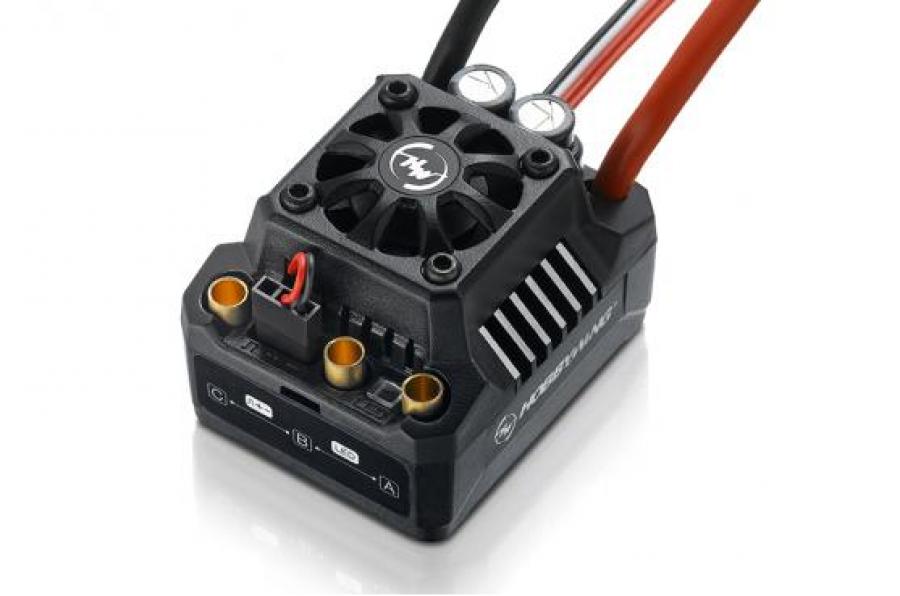

EzRun MAX10SCT 120A ESC 1/10

Valmistaja: Hobbywing
RC-auton nopeudensäädin
107,69 €
star star star star star
Tuote tilapäisesti loppu
Tuote on tilapäisesti loppu varastostamme ja maahantuojaltamme. Tuotteen saatavuudesta ei tällä hetkellä ole tietoa.

Voit jättää sähköpostiosoitteesi alle, niin saat sähköpostia kun tuote on taas saatavilla.
Lähetä

wishlist Lisää toivelistalle


Tuotekoodi: 30102601
Numero: HW30102601
Varastopaikka: B058
Tuotetyyppi: ESC harjaton ilman anturia
Tuotemerkki: Hobbywing

Tekniset tiedot Arvostelut

Tekniset tiedot
High Reliability & Durability
Built with the most rugged and high-quality components and coupled with
cutting-edge firmware, the EzRun MAX10 SCT is able to deliver unmatched power and performance for even
the most hardcore of racing applicatinos, but is also responsive enough to protect itself from
damage due to overloading due to physical abuse, overuse or even human error.

Great Flexibility & Versatility
With incredible acceleration capabilities and a rock-solid, stable output,
the MAX10 SCT can handle instant full-torque start-ups for wheelies,
high-speed racing on straightaways and powering through the bumpiest terrian.
The user will have the choice of adusting the ESC parameters as per his perference and ability.

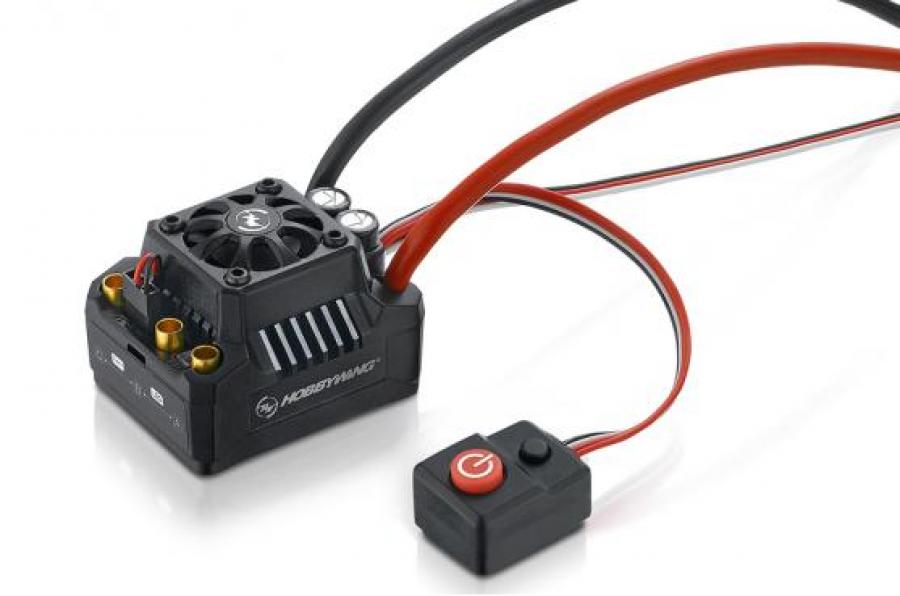

Advanced and Secure Electronic Switch
The MAX10 SCT features an electronic switch with a lifespan of over 50000 on/off cycles,
housed in a completely waterproof, dust-prood and shock-resistant design.

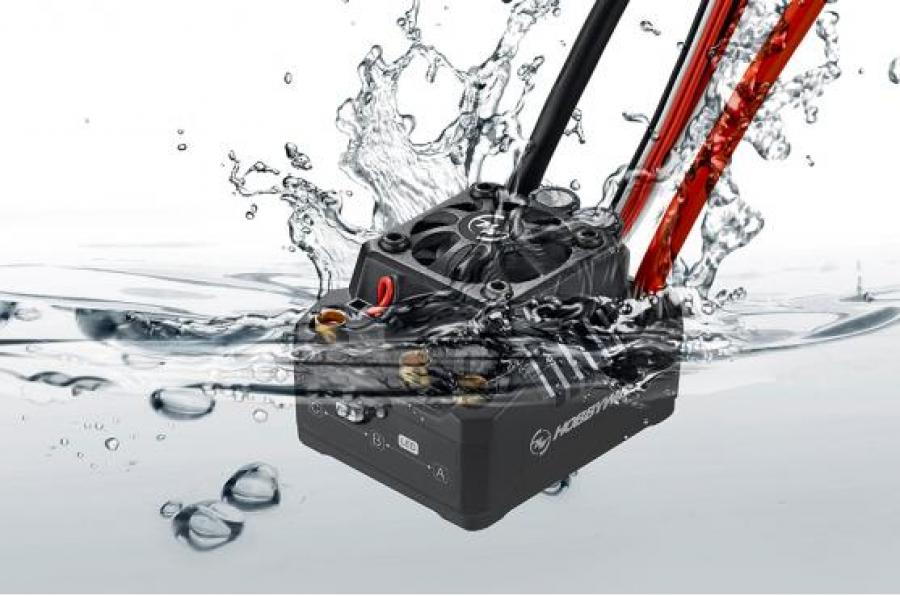

Applicable to All Weather Conditions
The waterproof and dust-proof design allows the MAX10 SCT to be used in all weather conditions
without any issue of damage caused to the ESC from water or dust.

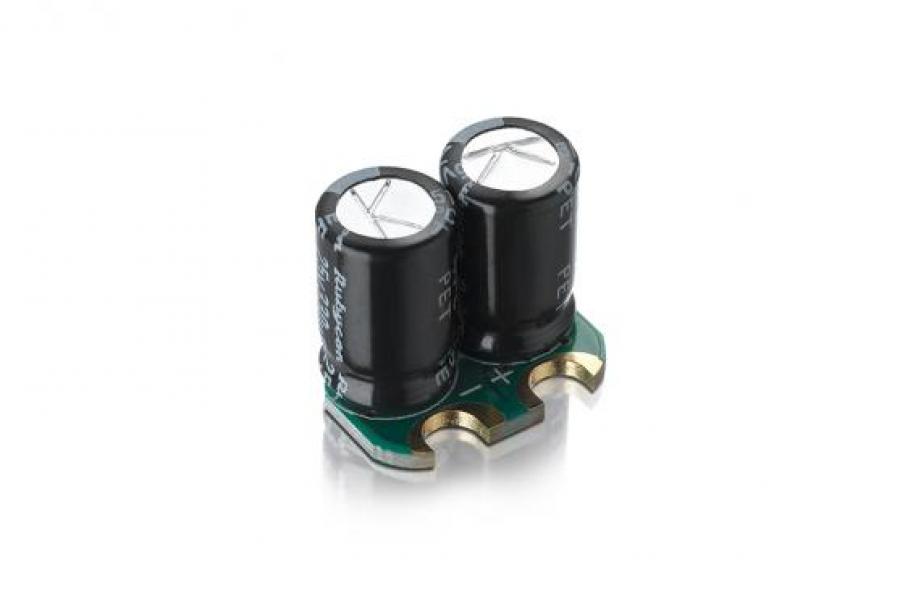

Innovative Filter Capacitor Thermal Protection
The filter capacitor thermal protection first implemented in the MAX10 SCT will effectively protect
capacitors from exploding and causing irreversible damage to the ESC due to overload.

Regular Firmware Updates Free of Charge
You can upgrade the MAX10 SCT with the HobbyWing
USB LINK software, a multifunction LCD program box
and a laptop. HobbyWing updates its ESC firmware
regularly giving you upgraded features more often
when available.

Wide Applicability
This MAX10 SCT ESC is applicable to various 1/10th scale vehicles like
trucks, short-course trucks, monster trucks, and etc.


Specifications:
  • Size: 49 x 39,5 x 34,7mm
  • Weight: 105g
  • Brushless: Yes
  • Sensored: No
  • Waterproof: Yes
  • Cont. Current: 120A
  • Peak Current: 830A
  • Input: 2-4S Li-Po / 6-12 cells NiMH
  • Bec Output: Swith Mode 6/7,4V 4A
  • Input Wires: Red/Black 12AWG 200mm

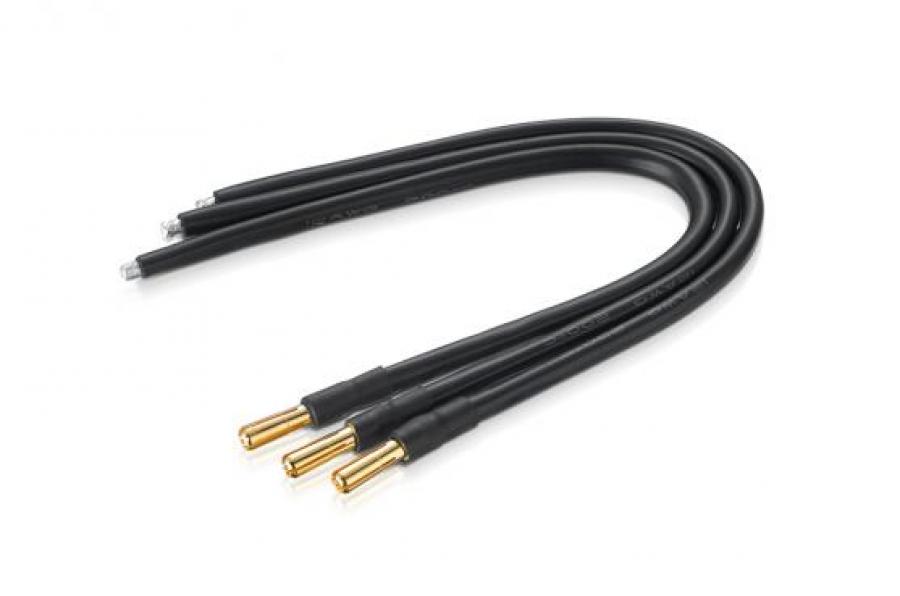

  • Output Wires: Black 12AWG 200mm x3
  • Input Connectors: No
  • Output Connectors: 4mm Bullet (Female)
  • Voltage Range Fan: 5-7,4V


Applications:
  • Motors: SL BL Motors/SD BL Motors (only in SL mode)
  • Vehicles: 1/10thSCTs/Truck/Monster Truck
  • KV Rating: 2S LiPo:KV≤6000;3S LiPo:KV≤4000;4S LiPo:KV≤3000(36XX Series of Motors)
