T12K Radio - R3008SB - T-FHSS Air & S-FHSS

Valmistaja: FUTABA
434,50 €
star star star star star
Tuote tilapäisesti loppu
Tuote on tilapäisesti loppu varastostamme ja maahantuojaltamme. Tuotteen saatavuudesta ei tällä hetkellä ole tietoa.

Voit jättää sähköpostiosoitteesi alle, niin saat sähköpostia kun tuote on taas saatavilla.

wishlist Lisää toivelistalle

Tuotekoodi: 05003123-3
Numero: FPT12K
Tuotemerkki: FUTABA

Tekniset tiedot Arvostelut

Tekniset tiedot

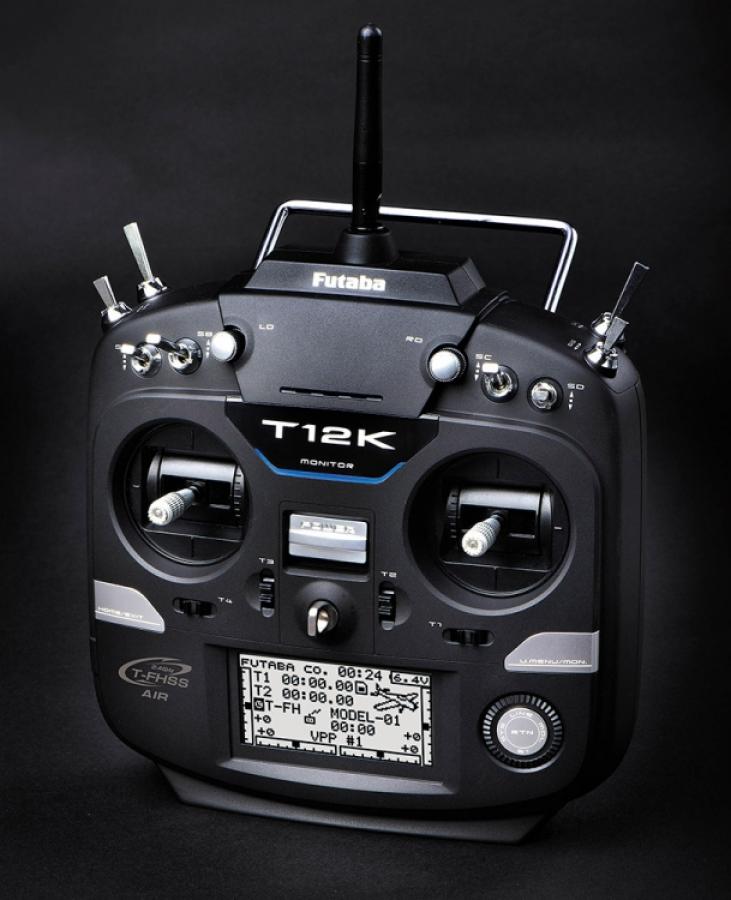

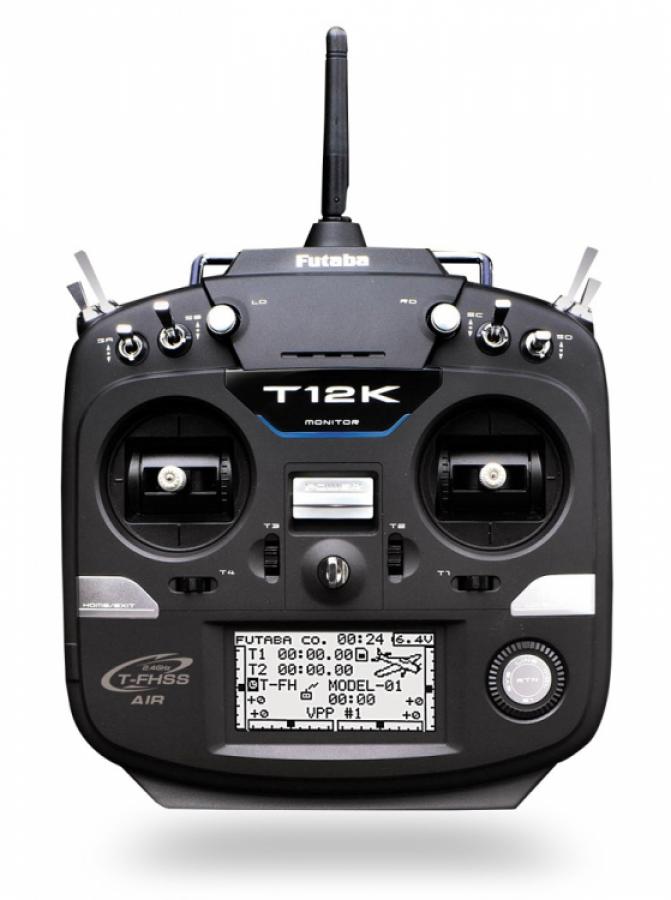

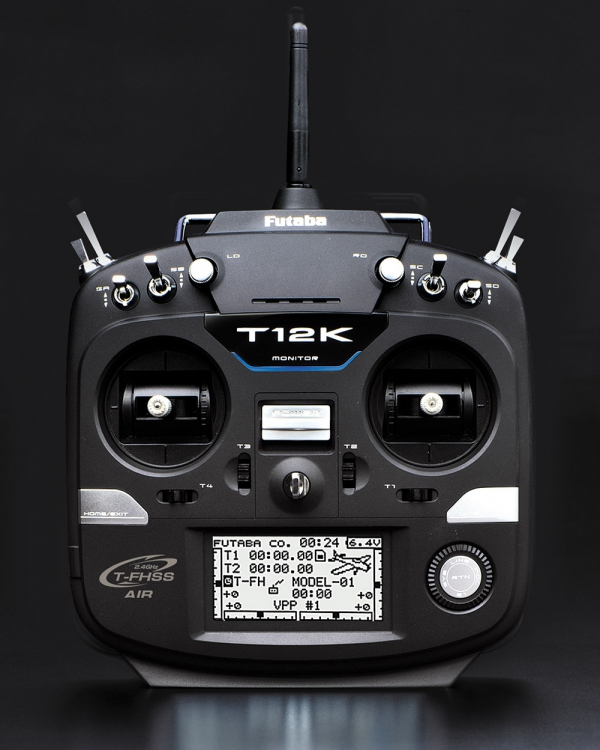

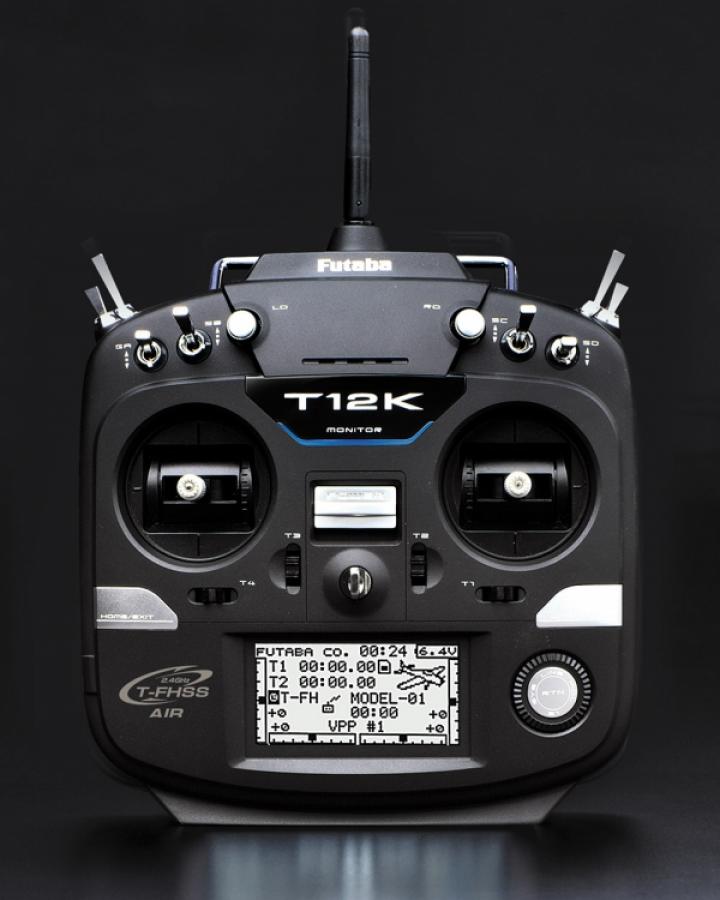

Futaba T12K Radio System

The 12K combines first-class performance with incredible versatility to create a system that's easy to operate, yet feature-packed! Available in systems perfectly matched for airplanes, helis and gliders, the 12K is also compatible with multi-rotors, so pilots get the best of all worlds.

Equipped with the rock-solid Futaba S-FHSS and T-FHSS protocols, the 12K is compatible with almost a dozen different Futaba receivers to suit modelers' needs. The 12K can transmit and receive telemetry data via the T-FHSS protocol. Simply install Futaba telemetry sensors (sold separately) to monitor flight data, receive alerts while in flight and more. These sensors allow pilots to keep track of battery voltage, altitude, speed and other key flight functions.

In addition to telemetry, the 12K can be used with S.Bus2 gear to add multiple servos, gyros and more to set-ups with fewer cables. Pilots with non-telemetry set-ups can take advantage of the interference-free S-FHSS protocol. A large, backlit LCD screen, expandable 30-model memory, a 6V 1800mAh NiMH battery and charger are just a few more of the features the 12K has to offer.

The T12K includes the following components:
  • T12K Transmitter
  • R3008SB Receiver
  • HT5F1800B NiMH battery & Charger
*The set contents depend on the type of set.
(Specifications and ratings are subject to change without notice.)

T12K Transmitter:
  • 2-stick, 14-channel, T-FHSS Air-2.4G system
  • Frequency band: 2.4GHz band
  • RF power output: 100mW
  • EIRP System: T-FHSS Air, S-FHSS, switchable
  • Power supply: 6.0V HT5F1800B NiMH battery

R3008SB Receiver:
  • T-FHSS Air-2.4G system, dual antenna diversity, S.BUS system
  • Frequency band: 2.4GHz
  • RF power output: 25mW EIRP
  • Power requirement: 4.8V~7.4V battery or regulated output from ESC, etc. (*1)
  • Size: 24.9 x 47.3 x 14.3 mm
  • Weight: 10.1 g
(*1) When using ESC's make sure that the regulated output capacity meets your usage application.

System Compatibility
The 12K is a 2.4GHz T-FHSS Air system. The transmitter can also be switched to S-FHSS. (However, the telemetry system cannot be used with S-FHSS.) The usable receivers are shown below:

Compatible Receivers (As of November 2017):
  • T-FHSS Air: R3006SB, R3008SB & R3001SB
  • S-FHSS: R2001SB, R2008SB, R2006GS & R2106GF


  • *The Futaba T-FHSS Air system cannot be used with Futaba S-FHSS/FASST/FASSTest systems. Use it with a T-FHSS Air system transmitter and receiver. The T12K is a T-FHSS Air system, but can also be used with an S-FHSS receiver by switching to S-FHSS. However, in this case the telemetry system cannot be used.
  • *The T-FHSS Air system and T-FHSS surface system are different. The T12K cannot be used with the R304SB, R304SB-E or T-FHSS surface system receivers.

Transmitter Features:
  • Channels: 14 (12 proportional, 2 switched)
  • Compatible with T-FHSS and S-FHSS protocols
  • Six 3-position switches, two 2-position switches, two slider levers, two rotary dials, four digital trims and two push buttons for quick, easy access
  • Headphone plug, trainer port and S.Bus plug-in
  • S.Bus2 system allows multiple servos, gyros and telemetry sensors with a minimum number of cables
  • Model types: six types of main wing with three tail types for airplanes, six swash types for helis and multi-rotor functions
  • Improved stick feel with adjustable lengths and tension
  • Dual rates/exponential
  • Included 6V 1800mAh NiMH battery and charger
  • Large, backlit LCD screen with adjustable contrast for easier reading. Push/dial operation simplifies set-up
  • Micro memory card slot for storing model information and free system updates. (SD-32MB to 2GB; SDHC-4GB to 32GB, not included)
  • Vibration feature alerts pilots to various alarms and timers, in addition to sound
  • 10-character model naming
  • Expandable 30-model memory
  • 5 flight conditions (Helicopter and Glider model selections)
  • 5 customizable programmable mixes
  • Servo test and servo position display
  • Fuel mixing
  • Stick calibration
  • Servo speed
  • Logic switching

Airplane Features:
  • 6 wing types
  • 3 tail wing types
  • 5 flight modes
  • Pitch curve
  • Throttle curve
  • Throttle delay
  • Aileron differential
  • Flap setting
  • Aileron to camber flaps
  • Aileron to brake flaps
  • Aileron to rudder
  • Rudder to aileron
  • Camber mix
  • Elevator to camber
  • Camber flap to elevator
  • Butterfly function
  • Trim mix
  • Air brake
  • Gyro mix
  • V-Tail
  • Ailevator (dual elevator)
  • Winglet
  • Motor speed
  • Rudder to elevator
  • Snap roll
  • Multi-engine functionality
  • Airbrake

Helicopter Features:
  • Six swash types
  • Pitch curve and pitch trim
  • Throttle curve and throttle hover trim
  • Throttle hold
  • Swash ring
  • Pitch to needle
  • Pitch to rudder (revolution mixing)
  • Gyro mixing
  • Governor mixing
  • Timer settings
  • Throttle percent timer

Glider Features:
