T7PX Wheel Radio - R334SBS - T-FHSS SR*

Valmistaja: FUTABA

706,40 €

Tuote tilapäisesti loppu

Tuote on tilapäisesti loppu varastostamme ja maahantuojaltamme. Tuotteen saatavuudesta ei tällä hetkellä ole tietoa.

Voit jättää sähköpostiosoitteesi alle, niin saat sähköpostia kun tuote on taas saatavilla.

Lähetä

Lisää toivelistalle

Tuotekoodi:	05003121-3
Numero:	FPT7PX
Tuotemerkki:	FUTABA

Tekniset tiedot Arvostelut

Tekniset tiedot ∨

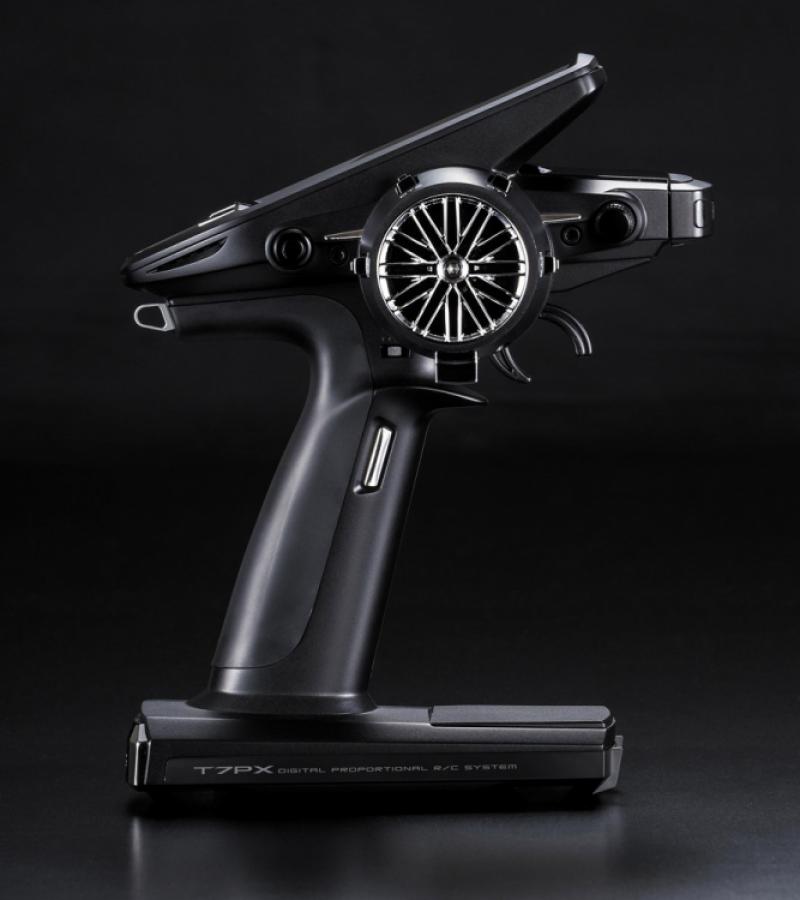

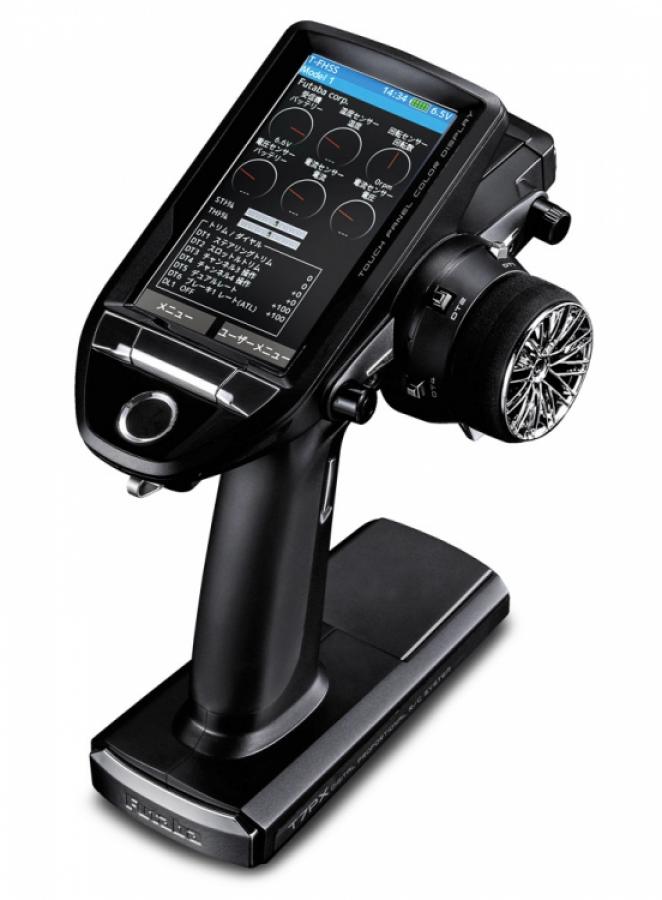

Futaba T7PX Touch Panel Color LCD Wheel Radio

The 7PX leads the way to a new revolution in surface control, thanks to Super Response Mode, full telemetry capability and the R334SBS diversity receiver!

T-FHSS SR Super Response makes the 7PX the fastest Futaba radio yet, to give drivers a more “locked-in” feel while racing. In addition, the 7PX offers the T-FHSS protocol, which allows full telemetry capability. This radio is also compatible with S-FHSS and FASST protocols, expanding receiver options tenfold.

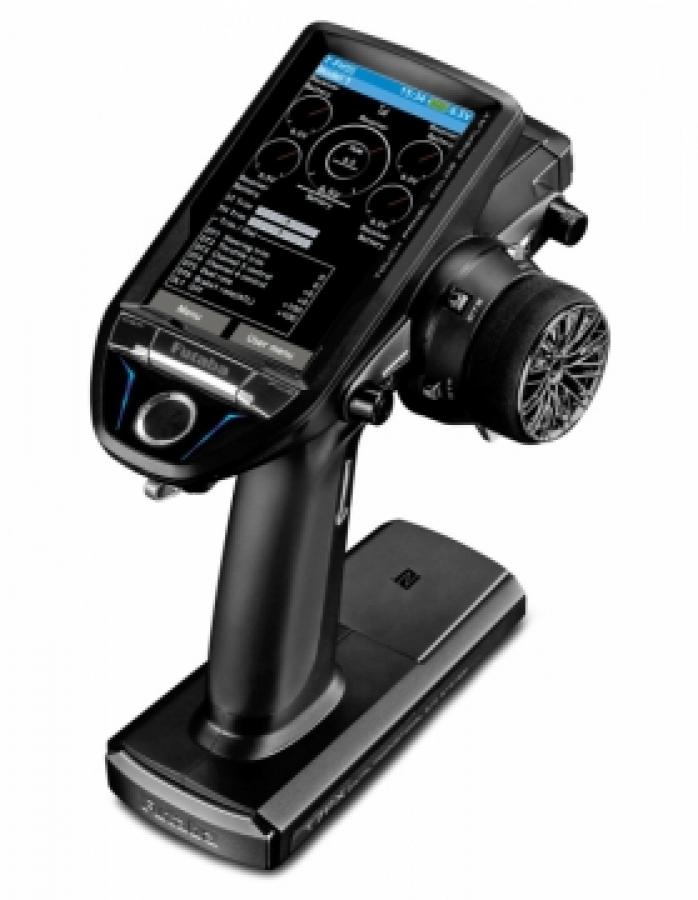

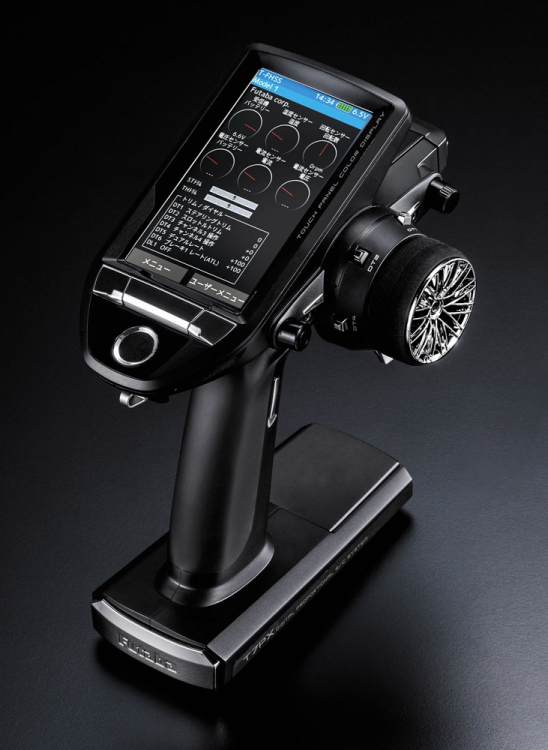

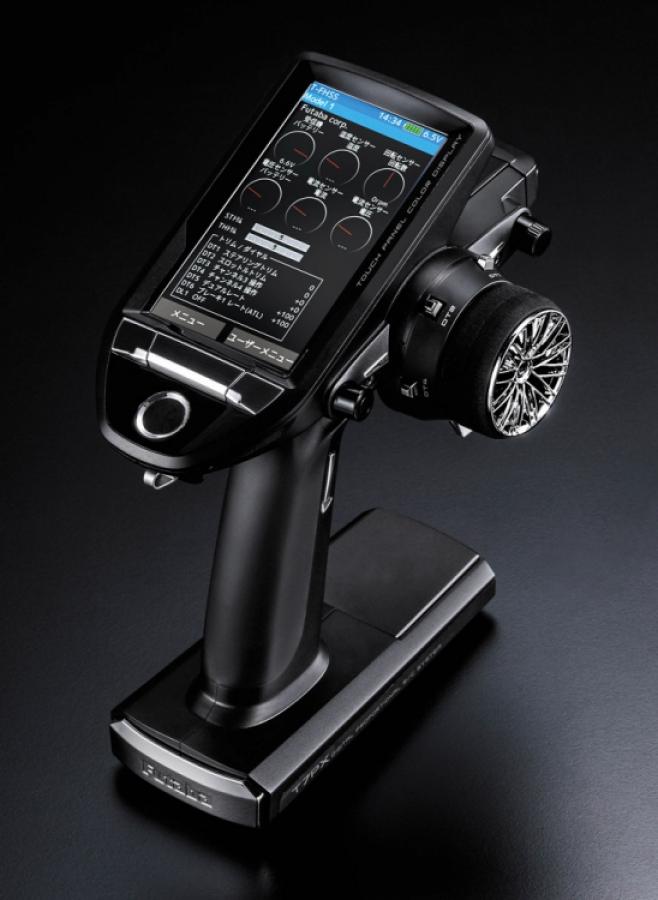

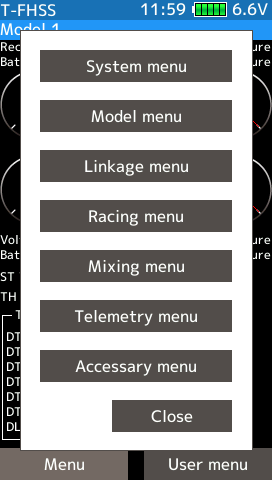

The innovations don’t stop there. A 4.3" backlit LCD touch screen lets drivers access key features instantly, via intuitively designed menus. When it comes to features, an R334SBS diversity receiver, 40-model memory and updateable software are just the tip of the iceberg.

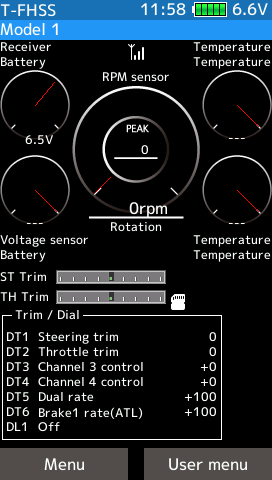

Up to 7 channels can be controlled and programmed (depending on the used receiver). Up to 5 telemetry sensors can be viewed on the main screen for real-time information. Traction control and over-rev functions have been added to complement the ABS function. The 7PX supports high-speed servos—drivers can change the conventional 1,520 µ to 760 µ for SR Mode. The 7PX also adapts the “Return” function to “Throttle,” so drivers can set it with more accuracy.

T7PX Overview & Features:

4-7 channels (if more then 4 channels you need to use S-FHSS receivers such as R2008SB)
Futaba SR (Super Response) technology
T-FHSS SR (Super Response), T-FHSS, S-FHSS and FASST (C2) protocols
Large, backlit 4.3" LCD touch screen
Full telemetry compatible (with a telemetry supported receiver). If you want to use more then 4 channels (with a S-FHSS receiver) no telemetry functions are available.
40-model memory
Display button
15-character model names
Throttle selection (50/50; 70/30; 100)
5 programmable mixes
S.BUS servo programming editor
R334SBS 2.4GHz diversity receiver with gold plated connectors
6 assignable push buttons
Channels 5/6 and 7 feature reversing, end point adjustments, sub-trim, assignable brake mixing and ABS
One dial

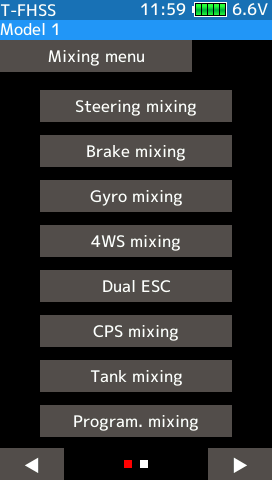

Conditions
4WS mixing
Tank mixing
Brake mixing
Gyro mixing
Steering mixing
Tilt mixing
CPS mixing
Roll out chart
Gear ratio chart
Battery use: 2-cell LiFe, 5-cell NiMH (with 2-cell LiPo set to "other" and set alarm at 7V)
Driver preference menu
Exponential
6 assignable digital trims
Assignable switch/dial functions
Servo reversing
Servo monitor
Up/down/integral timer (records up to 80 laps)
Lap timer/memory
Wheel/trigger (tension, position, angle) adjustments
Model copy
Software-updateable with a micro memory card (sold separately) or via Near Field Communication (NFC). Just open an app on your Android™ device and place it next to the radio to update!
Micro memory card slot
Voice message/audio earphone jack
Built-in speaker
Right/left hand operation
2-position switch
4 trigger sizes
7 mm throttle trigger adjustment
24 steering wheel angle positions
Low battery alarm
Auto power-off
Return button

Transmitter Specifications:

Type: 7-Channel FASST/S-FHSS/T-FHSS/T-FHSS SR
Voltage: 6-7.4V
Weight: 580 g
Includes: R334SBS diversity receiver (with gold connectors), APA adapter, large wheel with rubber grip, LCD protection sheet, mini driver and manual
Requires: 2S 6.6V LiFe or 5-cell NiMH Tx Battery

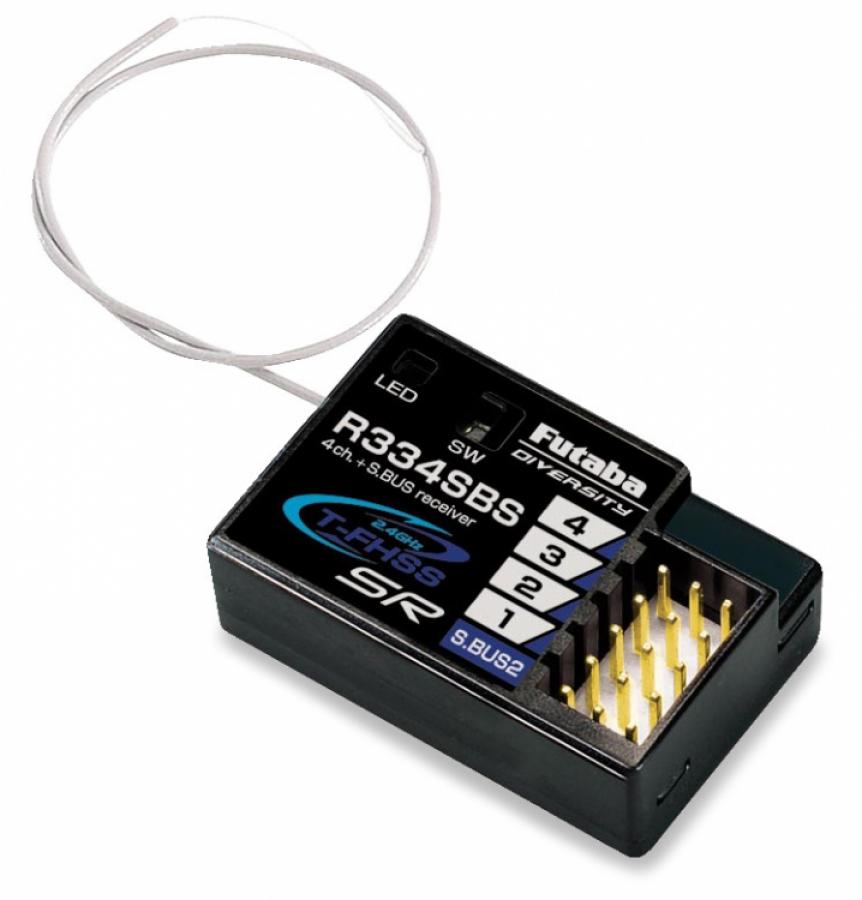

R334SBS Receiver Specs:

T-FHSS SR & T-FHSS
4 Channels
S.BUS2
Diversity Antenna
Gold plated connectors
Length: 34 mm
Width: 22.3 mm
Height: 11.5 mm
Weight: 7 g
Extrernal antenna: 205 mm

Compatible Receivers:

T-FHSS SR (4CH): R334SBS & R334SBS-E (telemetry not supported)
T-FHSS (4CH): R334SBS, R334SBS-E, R324SBS, R304SB, R304SB-E (telemetry supported)
S-FHSS (up to 7CH): R203GF (3CH), R204GF-E (4CH), R2104GF (4CH), R2008SB (7CH), R2006GS (6CH), R2106GF (6CH)
FASST (C2): R614FS (4CH), R614FF-E (4CH), R604FS (4CH), R604FS-E (4CH)

Compatible Telemetry Sensors as of August 2017 (with an telemetry supported receiver):

SBS-01T: Temperature sensor with a loop - perfect for an engine head etc
SBS-01TE: Temperature sensor - perfect for attaching to a electric motor or esc etc
SBS-01RM: RPM Sensor - needs an small (included) magnet to be installed in the flywheel etc
SBS-01V: External Volt Sensor - measures up to 100V
SBS-01C: Current Sensor - measures voltage and current flow
SBS-01/02G: GPS sensors - detects the position and speed of the vehicle
Castle Telemetry Link Adapter - makes it possible to log Castle Creations compatible ESC's in the transmitter

Servos with SR Mode settings:

BLS671SV/SVi
BLS571SV
BLS471SV
BLS371SV
BLS373SV
S9372SV
S9373SV
HPS-CB700
