UBEC 8A 2-3S

Valmistaja: Hobbywing
20,80 €
star star star star star
Tuotteen lähetysaika 6-12 arkipäivää
-
+
Lisää ostoskoriin Lisää ostoskoriin

wishlist Lisää toivelistalle


Tuotekoodi: 86010030
Numero: HW86010030
Sähkömoottoritarvikkeet: BEC-piirit
Tuotemerkki: Hobbywing

Tekniset tiedot Arvostelut

Tekniset tiedot

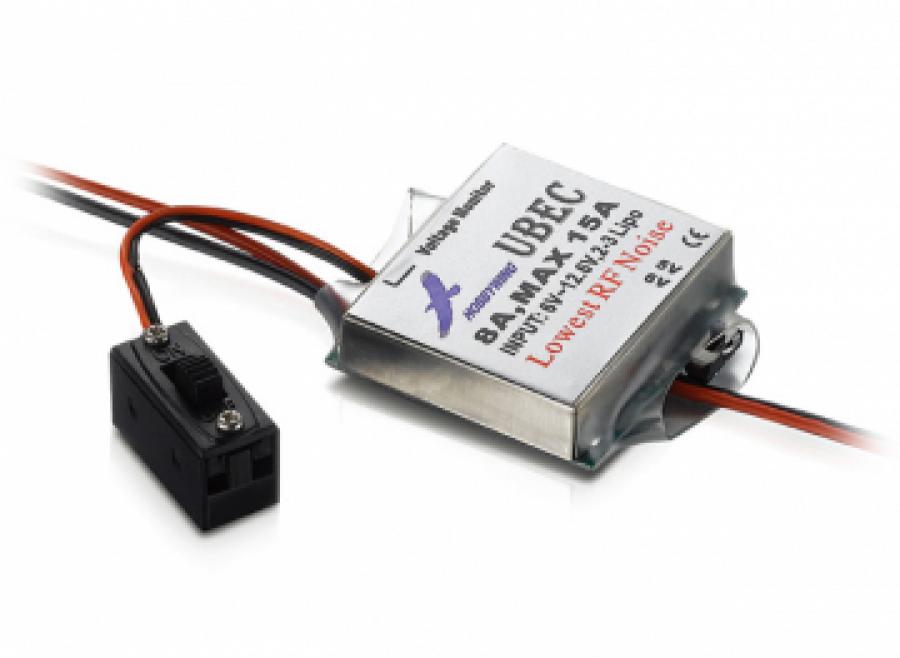

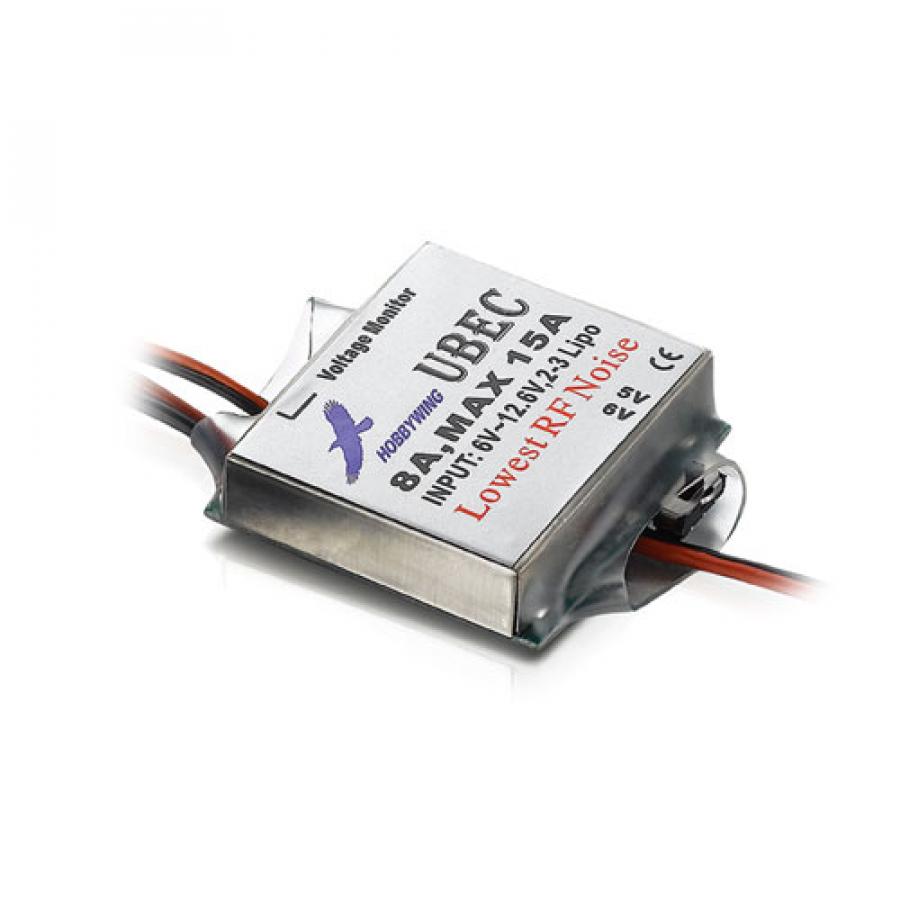

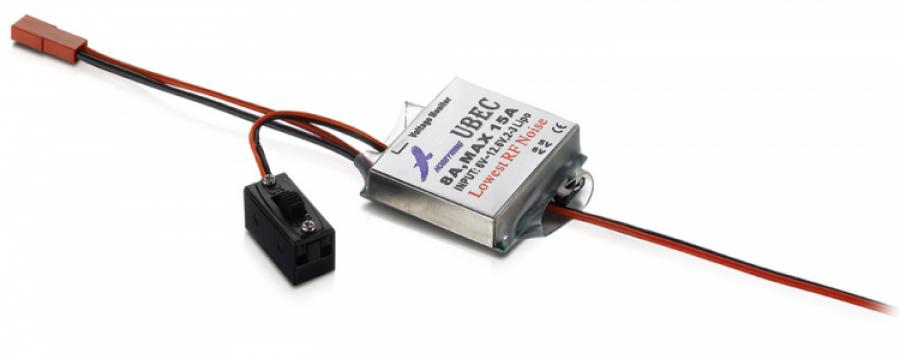

Hobbywing UBEC 8A (2-3S)

The 8A-UBEC is an external switching-mode DC-DC regulator supplied with a 2-3cells lithium battery pack and outputs a consistent safe voltage for your receiver, gyro and servos. It is very suitable for nitro powered RC helicopters (above 30 class) and big fixed-wing aircraft. Compared with a linear mode UBEC, the overall efficiency of the switching-mode BEC is much higher, so it can extend the working time of the receiver battery pack, and because a switching-mode UBEC can significantly reduce the heat emission, it can avoid the loss of control caused by the over-heat problem which is frequently happened with linear mode UBECs.

Specification:
  • Output: 5V/8A or 6V/8A (Changeable with an output-voltage select switch)
  • Quiescent current: 60mA
  • Input: 6V-12.6V (2-3cells lithium battery pack)
  • Size: 42 x 39 x 9mm (length x width x height)
  • Weight: 38g
